2 - A2 - Exterior Trim, Lighting, And Wipers - 2.5 - 05 - Wi...

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 2 - A2 - EXTERIOR TRIM, LIGHTING, AND WIPERS - 2.5 - 05 - WIPERS AND WASHER SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11A7848CP Motor - Wiper $169.93 To Order
Photo Part No Description Price (each) Stock
11A3952CP Bolt - M6x12 - Wiper $2.62 To Order
Photo Part No Description Price (each) Stock
11A4101CP WIPER-GROMMET-LINK24E $5.67 To Order
Photo Part No Description Price (each) Stock
11A4644CP Washer - M8 - Slip - Wiper $5.01 To Order
Photo Part No Description Price (each) Stock
00RA290 Bolt - M8x40 - Button Enquire To Order
Photo Part No Description Price (each) Stock
00RA305 SCREW - M6X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
11A4456CP WIPER - ANTI VIBRATION GROMMET $3.43 To Order
Photo Part No Description Price (each) Stock
11A5457CP Linkage - Wiper - Federal Enquire To Order
Photo Part No Description Price (each) Stock
11A6209CP Wiper Arm - RHD $528.06 To Order
11A6208CP Wiper Arm - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11A6247CP Wiper Arm - Spring $4.44 To Order
Photo Part No Description Price (each) Stock
11A6246CP Wiper Arm - Spring - Retainer $4.04 To Order
Photo Part No Description Price (each) Stock
11A3694CP Wiper Blade - LHD - Federal Enquire To Order
11A5727CP Wiper Blade - RHD - EU $60.90 To Order
11A5726CP Wiper Blade - LHD - EU $55.84 To Order
Photo Part No Description Price (each) Stock
11A3966CP Washer Jet Nozzle - Wiper $30.20 To Order
Photo Part No Description Price (each) Stock
11A4465CP SCREW-M3x6-TORX $1.81 To Order
Photo Part No Description Price (each) Stock
11A4816CP Wash Tube - Wiper - Nozzle $4.21 To Order
Photo Part No Description Price (each) Stock
11A5930CP Protective Sleeve - Wiper Hose $2.80 To Order
Photo Part No Description Price (each) Stock
11A3698CP Cap - Wiper - Pantograph $8.10 To Order
Photo Part No Description Price (each) Stock
11A3699CP Grommet - Wiper - Spindle $5.88 To Order
Photo Part No Description Price (each) Stock
11A4460CP Nut - Wiper - Flanged - M8 $2.62 To Order
Photo Part No Description Price (each) Stock
11A3697CP Cap - Wiper - Arm $9.33 To Order
Photo Part No Description Price (each) Stock
11A3700CP Grommet - Wiper - Washer Tube $4.25 To Order
Photo Part No Description Price (each) Stock
11A6390CP Wiper System Cover - LHD Enquire To Order
11A6391CP Wiper System Cover - RHD $966.78 To Order
Photo Part No Description Price (each) Stock
11A0266CP Washer Hose - Windscreen $30.44 To Order
Photo Part No Description Price (each) Stock
11A0252CP Cap - Washer Bottle $50.76 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
11A0253CP Gasket/Mount - Washer Bottle $71.07 To Order
Photo Part No Description Price (each) Stock
11A0251CP Grommet - Washer Bottle - Fluid Level Sensor $14.21 To Order
Photo Part No Description Price (each) Stock
11A7150CP Washer Bottle - MY2015 $402.81 To Order
Photo Part No Description Price (each) Stock
11A0247CP Pump - Windscreen Wash $221.54 To Order
Photo Part No Description Price (each) Stock
11A3976CP BRACE WIPER MECHANISM - RHD $65.98 To Order
11A3955CP Brace - Wiper - Mechanism - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11A4464CP SCREW-BTN HD-M6x10-TORX $1.81 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
11A4926CP WIPER COVER-DRAINAGE HOSE OD 1 $142.16 To Order
Photo Part No Description Price (each) Stock
11A5462CP Bump-on - Wiper Arm $5.88 To Order
Photo Part No Description Price (each) Stock
00RB012 CLIP - 2MM - TRIM PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RB022 Clip - 4-4.8mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11A3932CP WIPER - ANTI VIBRA24ON BUSH $2.00 To Order
Photo Part No Description Price (each) Stock
11A4461CP WIPER - ANTI VIBRATION FOAM 15 $1.00 To Order
Photo Part No Description Price (each) Stock
11A5728CP Tie Base - Cable - Firtree $2.62 To Order
Photo Part No Description Price (each) Stock
11A3896CP CABLE TIE-WASH HOS24JETPRESS C $8.91 To Order
Photo Part No Description Price (each) Stock
11A5454CP Linkage - Wiper - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11A5455CP Linkage - Wiper - RHD $507.76 To Order
Photo Part No Description Price (each) Stock
11M0012CP Sensor - Washer Bottle - Fluid Level $95.65 To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB210 Clip - Washer Hose Enquire To Order

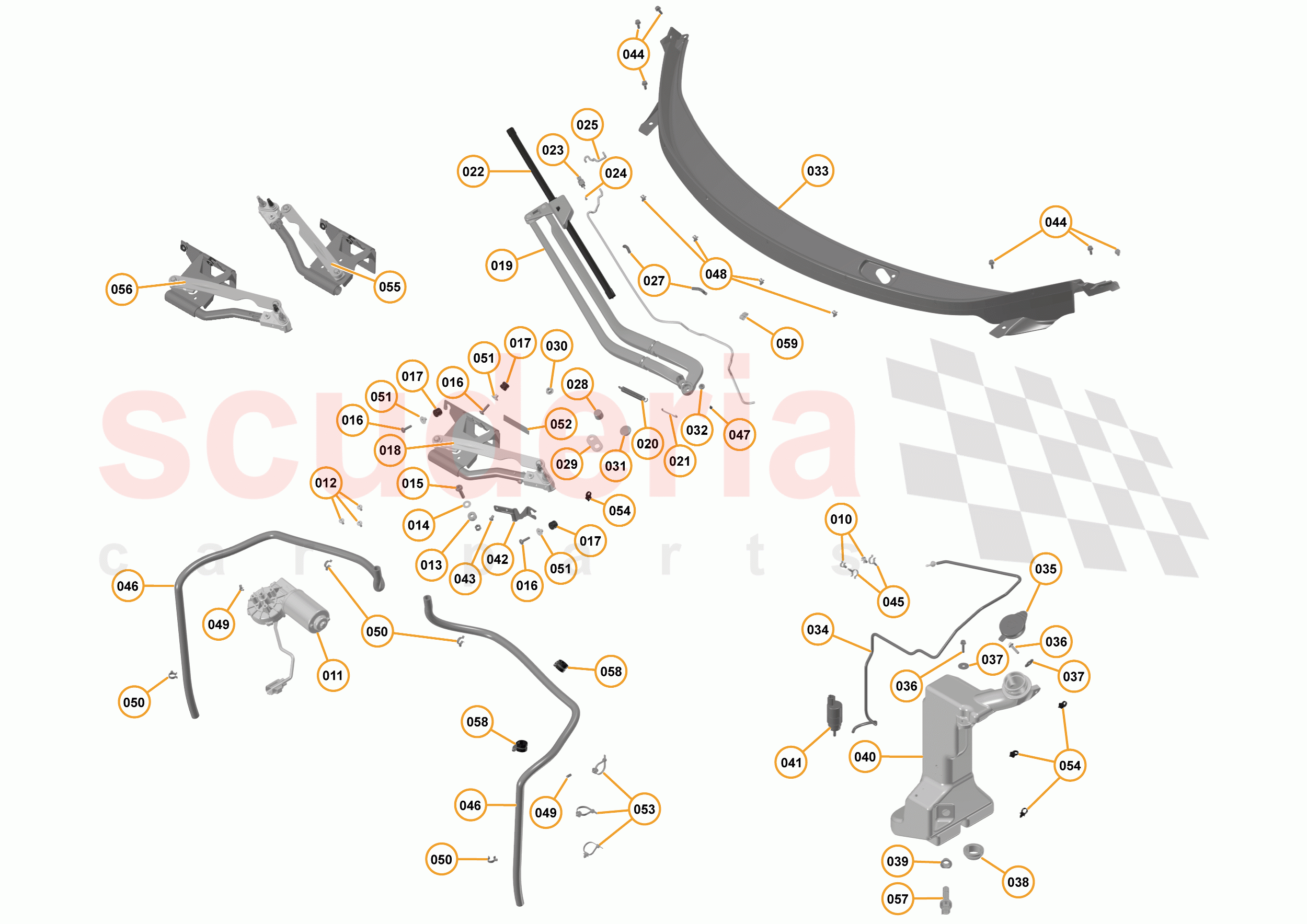

2 - A2 - EXTERIOR TRIM, LIGHTING, AND WIPERS - 2.5 - 05 - WIPERS AND WASHER SYSTEM of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB046
CLIP - 8-9MM - FEMALE 		- 2
PE
 Enquire
011 11A7848CP
Motor - Wiper 		$169.93 1
TO
012 11A3952CP
Bolt - M6x12 - Wiper 		$2.62 3
TO
013 11A4101CP
WIPER-GROMMET-LINK24E 		$5.67 1
TO
014 11A4644CP
Washer - M8 - Slip - Wiper 		$5.01 1
TO
015 00RA290
Bolt - M8x40 - Button 		- 1
PE
 Enquire
016 00RA305
SCREW - M6X25 - BUTTON 		- 3
PE
 Enquire
017 11A4456CP
WIPER - ANTI VIBRATION GROMMET 		$3.43 1
TO
018 11A5457CP
Linkage - Wiper - Federal
Superseded parts: 11A4975CP; 		- 1
PE
 Enquire
019 11A6209CP
Wiper Arm - RHD
Superseded parts: 11A5461CP; 		$528.06 1
TO
019 11A6208CP
Wiper Arm - LHD
Superseded parts: 11A5460CP; 		- 1
PE
 Enquire
020 11A6247CP
Wiper Arm - Spring
Superseded parts: 11A6253CP; 		$4.44 1
TO
021 11A6246CP
Wiper Arm - Spring - Retainer
Superseded parts: 11S6254CP; 		$4.04 1
TO
022 11A3694CP
Wiper Blade - LHD - Federal 		- 1
PE
 Enquire
022 11A5727CP
Wiper Blade - RHD - EU 		$60.90 1
TO
022 11A5726CP
Wiper Blade - LHD - EU 		$55.84 1
TO
023 11A3966CP
Washer Jet Nozzle - Wiper 		$30.20 1
TO
024 11A4465CP
SCREW-M3x6-TORX 		$1.81 1
TO
025 11A4816CP
Wash Tube - Wiper - Nozzle 		$4.21 1
TO
026 11A5465CP
Washer Tube - Wiper - RHD 		$55.84 1
TO
026 11A5466CP
Washer Tube - Wiper - LHD 		- 1
PE
 Enquire
027 11A5930CP
Protective Sleeve - Wiper Hose 		$2.80 1
TO
028 11A3698CP
Cap - Wiper - Pantograph 		$8.10 1
TO
029 11A3699CP
Grommet - Wiper - Spindle 		$5.88 1
TO
030 11A4460CP
Nut - Wiper - Flanged - M8 		$2.62 1
TO
031 11A3697CP
Cap - Wiper - Arm 		$9.33 1
TO
032 11A3700CP
Grommet - Wiper - Washer Tube 		$4.25 1
TO
033 11A6390CP
Wiper System Cover - LHD
Superseded parts: 11A5792CP; 		- 1
PE
 Enquire
033 11A6391CP
Wiper System Cover - RHD
Superseded parts: 11A5793CP; 		$966.78 1
TO
034 11A0266CP
Washer Hose - Windscreen 		$30.44 1
TO
035 11A0252CP
Cap - Washer Bottle 		$50.76 1
TO
036 00RA120
SCREW - M6X25 - HEX 		- 2
PE
 Enquire
037 00RC043
WASHER - M6XOD25 		- 2
PE
 Enquire
038 11A0253CP
Gasket/Mount - Washer Bottle 		$71.07 1
TO
039 11A0251CP
Grommet - Washer Bottle - Fluid Level Sensor 		$14.21 1
TO
040 11A7150CP
Washer Bottle - MY2015 		$402.81 1
TO
041 11A0247CP
Pump - Windscreen Wash 		$221.54 1
TO
042 11A3976CP
BRACE WIPER MECHANISM - RHD 		$65.98 1
TO
042 11A3955CP
Brace - Wiper - Mechanism - LHD 		- 1
PE
 Enquire
043 11A4464CP
SCREW-BTN HD-M6x10-TORX 		$1.81 1
TO
044 00RA061
Screw - M6x16 - Flange Hex 		- 6
PE
 Enquire
045 00RB034
CLIP - 14-15MM - MALE 		- 2
PE
 Enquire
046 11A4926CP
WIPER COVER-DRAINAGE HOSE OD 1 		$142.16 2
TO
047 11A5462CP
Bump-on - Wiper Arm 		$5.88 1
TO
048 00RB012
CLIP - 2MM - TRIM PANEL 		- 4
PE
 Enquire
049 00RB022
Clip - 4-4.8mm - Female 		- 2
PE
 Enquire
050 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
051 11A3932CP
WIPER - ANTI VIBRA24ON BUSH 		$2.00 1
TO
052 11A4461CP
WIPER - ANTI VIBRATION FOAM 15 		$1.00 1
TO
053 11A5728CP
Tie Base - Cable - Firtree 		$2.62 3
TO
054 11A3896CP
CABLE TIE-WASH HOS24JETPRESS C 		$8.91 6
TO
055 11A5454CP
Linkage - Wiper - LHD
Superseded parts: 11A4975CP; 		- 1
PE
 Enquire
056 11A5455CP
Linkage - Wiper - RHD
Superseded parts: 11A4974CP; 		$507.76 1
TO
057 11M0012CP
Sensor - Washer Bottle - Fluid Level 		$95.65 2
TO
058 00RB060
P CLIP - DIA 20 		- 2
PE
 Enquire
059 00RB210
Clip - Washer Hose 		- 1
PE
 Enquire
