McLaren 675LT Spider - 9 - C1 - BRAKE SYSTEM - 9.3 - 04 - REAR BRAKE DISCS AND CALIPERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB109 CLIP - NORMA - RSGU 8 Enquire To Order
Photo Part No Description Price (each) Stock
11C0772CP Brake Disc - Carbon - Rear $3,219.88 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13CA042CP Brake Pad Kit - Axle Set - Iron - Rear $499.82 To Order
11CA018CP BRAKE PAD KIT-CCM-RR-R90 $1,019.65 To Order
Photo Part No Description Price (each) Stock
11C0677CP Dust Seal Kit - Brake Caliper - Carbon - Rear $35.54 To Order
11C0498CP Brake Caliper - Carbon 4pot - Rear - RH Enquire To Order
11C0497CP Brake Caliper - Carbon 4pot - Rear - LH Enquire To Order
Photo Part No Description Price (each) Stock
11C0525CP BOLT - BRAKE CALIPER - CARBON CERAMIC $24.97 To Order
Photo Part No Description Price (each) Stock
11C0760RP Duct - Disc Cooling - Carbon - Rear - RH - 675LT $463.23 To Order
11C0484RP Duct - Disc Cooling - Carbon - Rear - LH - 675LT $463.23 To Order
Photo Part No Description Price (each) Stock
11M0383CP ASSY-LINK LEAD-BRAKE PAD-RR $55.36 IN STOCK
Photo Part No Description Price (each) Stock
00RA370 SCREW - PAN HEAD - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
11C0767CP Mass Damper - Brake Caliper - Rear - CCM - Kit $993.12 To Order

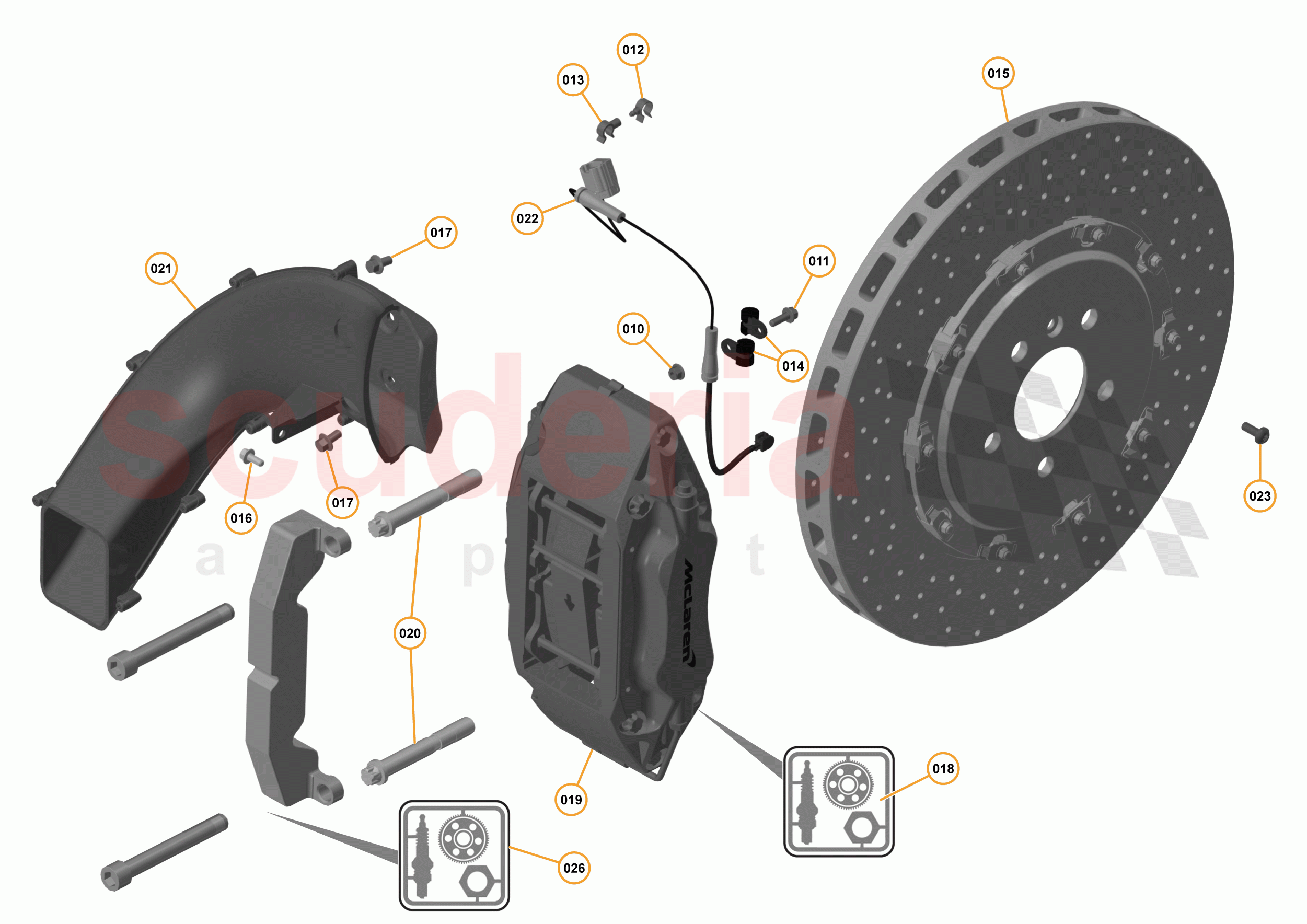

9 - C1 - BRAKE SYSTEM - 9.3 - 04 - REAR BRAKE DISCS AND CALIPERS of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA054
Nut - M5 - Lock Hex 		- 2
PE
 Enquire
011 00RA063
Screw - M5x16 - Hex 		- 2
PE
 Enquire
012 00RB045
CLIP - 9.5-10MM - MALE 		- 2
PE
 Enquire
013 00RB046
CLIP - 8-9MM - FEMALE 		- 2
PE
 Enquire
014 00RB109
CLIP - NORMA - RSGU 8 		- 4
PE
 Enquire
015 11C0772CP
Brake Disc - Carbon - Rear
Superseded parts: 11C0675CP; 		$3,219.88 2
TO
016 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
017 00RX003
BOLT - M6X1X12 - HEX 		- 4
PE
 Enquire
018 13CA042CP
Brake Pad Kit - Axle Set - Iron - Rear 		$499.82 1
TO
018 11CA018CP
BRAKE PAD KIT-CCM-RR-R90
Superseded parts: 11C0015CP; 		$1,019.65 1
TO
019 11C0677CP
Dust Seal Kit - Brake Caliper - Carbon - Rear 		$35.54 1
TO
019 11C0498CP
Brake Caliper - Carbon 4pot - Rear - RH 		- 1
PE
 Enquire
019 11C0497CP
Brake Caliper - Carbon 4pot - Rear - LH 		- 1
PE
 Enquire
020 11C0525CP
BOLT - BRAKE CALIPER - CARBON CERAMIC 		$24.97 4
TO
021 11C0760RP
Duct - Disc Cooling - Carbon - Rear - RH - 675LT 		$463.23 1
TO
021 11C0484RP
Duct - Disc Cooling - Carbon - Rear - LH - 675LT 		$463.23 1
TO
022 11M0383CP
ASSY-LINK LEAD-BRAKE PAD-RR
IN STOCK 		$55.36 2
IN
023 00RA370
SCREW - PAN HEAD - TORX - M6X16 		- 2
PE
 Enquire
025 00RA597
BOLT - BRAKE CALIPER - REAR - CARBON - MASSDAMPER 		- 4
PE
 Enquire
026 11C0767CP
Mass Damper - Brake Caliper - Rear - CCM - Kit 		$993.12 1
TO
