McLaren 675LT Spider - 9 - C1 - BRAKE SYSTEM - 9.1 - 01 - FRONT BRAKE DISCS AND CALIPERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB078 SWIVEL CLIP - 8-9MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB109 CLIP - NORMA - RSGU 8 Enquire To Order
Photo Part No Description Price (each) Stock
11C0771CP Brake Disc - Carbon - Front $3,743.32 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11C0525CP BOLT - BRAKE CALIPER - CARBON CERAMIC $24.97 To Order
Photo Part No Description Price (each) Stock
11C0703RP Duct - Disc Cooling - Carbon - Front - RH - 675LT $342.38 To Order
11C0702RP Duct - Disc Cooling - Carbon - Front - LH - 675LT $342.38 To Order
Photo Part No Description Price (each) Stock
11C0636CP Brake Pad Kit - Axle Set - Carbon - Front Enquire To Order
11C0637CP Brake Pad Clips - Anti-rattle - Carbon - Front $302.10 To Order
Photo Part No Description Price (each) Stock
11C0496CP Brake Caliper - Carbon 6pot - Front - RH Enquire To Order
11C0495CP Brake Caliper - Carbon 6pot - Front - LH Enquire To Order
11C0678CP Dust Seal Kit - Brake Caliper - Carbon - Front $55.84 To Order
Photo Part No Description Price (each) Stock
11C0505CP BRAKE BOOSTER VAC HOSE-LHD $91.37 To Order
Photo Part No Description Price (each) Stock
11C0507CP Clip - Hose - Brake Booster Vacuum $14.21 To Order
Photo Part No Description Price (each) Stock
11M1397CP ASSY-LINK LEAD-BRAKE PAD-FR $55.36 IN STOCK
Photo Part No Description Price (each) Stock
11C0501CP BRAKE HOSE BANJO BOLT INC WASHERS $25.37 To Order
11C0466CP Bleed Nipple - inc. O-ring & Cap - Brake Caliper Set $40.60 To Order
11C0737CP Bleed Screw - Cover Kit $55.84 To Order
Photo Part No Description Price (each) Stock
00RA370 SCREW - PAN HEAD - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
11C0504CP BOLT-BRAKE PEDAL PAD $25.37 To Order

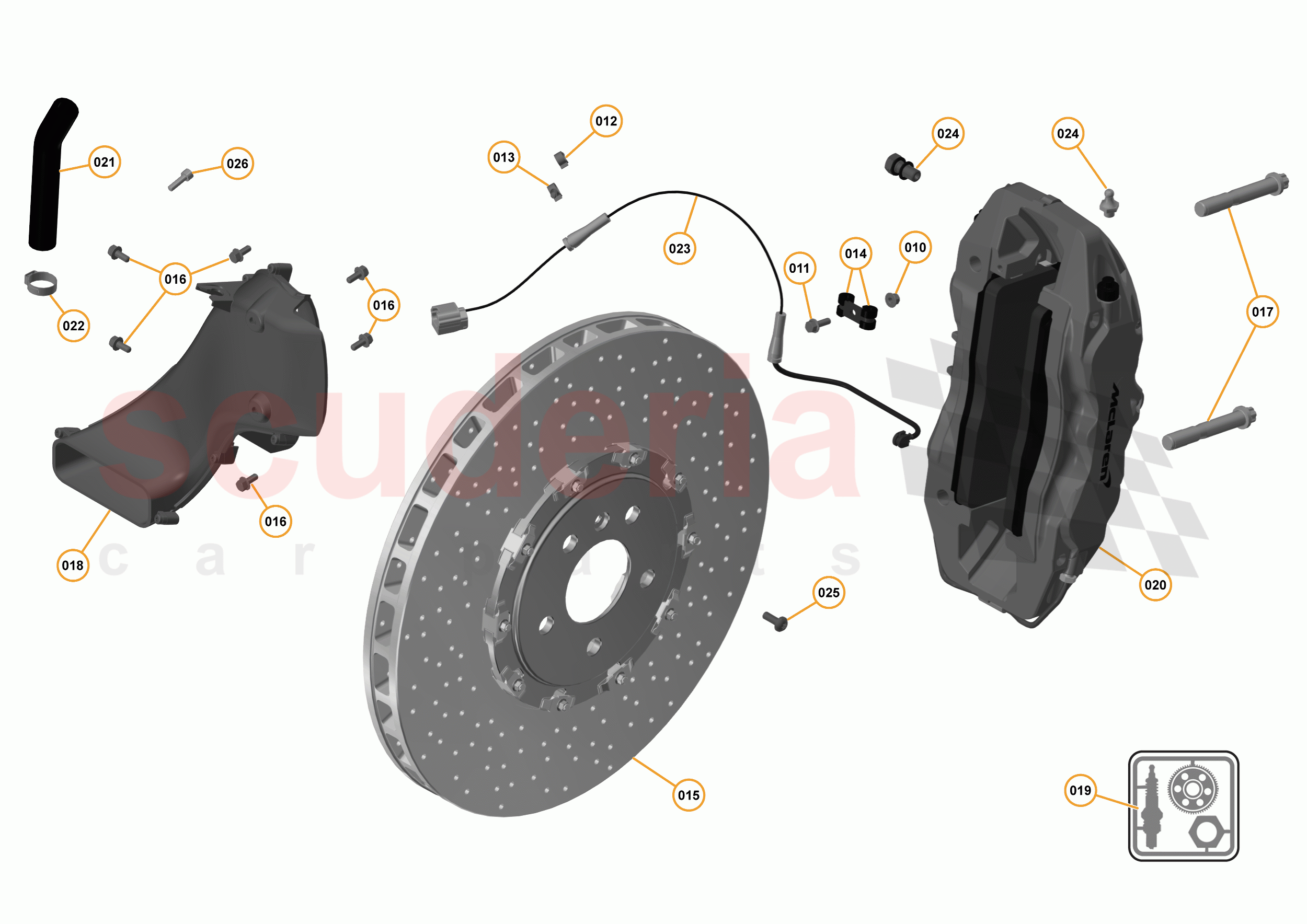

9 - C1 - BRAKE SYSTEM - 9.1 - 01 - FRONT BRAKE DISCS AND CALIPERS of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA054
Nut - M5 - Lock Hex 		- 2
PE
 Enquire
011 00RA063
Screw - M5x16 - Hex 		- 2
PE
 Enquire
012 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 4
PE
 Enquire
013 00RB078
SWIVEL CLIP - 8-9MM - MALE 		- 4
PE
 Enquire
014 00RB109
CLIP - NORMA - RSGU 8 		- 4
PE
 Enquire
015 11C0771CP
Brake Disc - Carbon - Front
Superseded parts: 11C0674CP; 		$3,743.32 2
TO
016 00RA064
BOLT - M5X12 - HEX 		- 6
PE
 Enquire
017 11C0525CP
BOLT - BRAKE CALIPER - CARBON CERAMIC 		$24.97 4
TO
018 11C0703RP
Duct - Disc Cooling - Carbon - Front - RH - 675LT 		$342.38 1
TO
018 11C0702RP
Duct - Disc Cooling - Carbon - Front - LH - 675LT 		$342.38 1
TO
019 11C0636CP
Brake Pad Kit - Axle Set - Carbon - Front
Superseded parts: 11C0588CP; 		- 1
PE
 Enquire
019 11C0637CP
Brake Pad Clips - Anti-rattle - Carbon - Front 		$302.10 1
TO
020 11C0496CP
Brake Caliper - Carbon 6pot - Front - RH 		- -
PE
 Enquire
020 11C0495CP
Brake Caliper - Carbon 6pot - Front - LH 		- 1
PE
 Enquire
020 11C0678CP
Dust Seal Kit - Brake Caliper - Carbon - Front 		$55.84 1
TO
021 11C0505CP
BRAKE BOOSTER VAC HOSE-LHD 		$91.37 1
TO
022 11C0507CP
Clip - Hose - Brake Booster Vacuum 		$14.21 1
TO
023 11M1397CP
ASSY-LINK LEAD-BRAKE PAD-FR
Superseded parts: 11M0381CP;
IN STOCK 		$55.36 2
IN
024 11C0501CP
BRAKE HOSE BANJO BOLT INC WASHERS 		$25.37 1
TO
024 11C0466CP
Bleed Nipple - inc. O-ring & Cap - Brake Caliper Set 		$40.60 1
TO
024 11C0737CP
Bleed Screw - Cover Kit 		$55.84 1
TO
025 00RA370
SCREW - PAN HEAD - TORX - M6X16 		- 2
PE
 Enquire
026 11C0504CP
BOLT-BRAKE PEDAL PAD 		$25.37 2
TO
