McLaren 675LT Spider - 7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11B1615CP QUICK RELEASE - SUSPENSION BLEED CONNECTOR $247.20 To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
11B0703CP Hose Seperator - Upper $40.60 To Order
Photo Part No Description Price (each) Stock
11B0704CP HOSE SEPERATOR-LOW24 $40.60 To Order
Photo Part No Description Price (each) Stock
11B1347CP Hose - Suspension - Lateral - Rear - Upper - MY2015 $1,188.33 To Order
Photo Part No Description Price (each) Stock
11B1348CP Hose - Suspension - Lateral - Rear - Lower - MY2015 $2,819.80 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA058 SCREW - M4X10 - CAP SOCKET - 12.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
11M0252CP Sensor - Accelerometer $201.40 To Order
Photo Part No Description Price (each) Stock
11B1114CP Hose - Suspension - Rear - Nose Lift $913.96 To Order
Photo Part No Description Price (each) Stock
11B1115CP Hose - Suspension - Rear Frame - Nose Lift $629.62 To Order
Photo Part No Description Price (each) Stock
11B0986CP Hose - Suspension - Rear to Dampers - Nose Lift $345.26 To Order
Photo Part No Description Price (each) Stock
11B1112CP Hose - Suspension - Rear to Valve - Nose Lift $487.43 To Order
Photo Part No Description Price (each) Stock
11B1113CP Hose - Damper Flexi - Rear - Noselift $243.70 To Order
Photo Part No Description Price (each) Stock
11B1346CP Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH $1,502.99 To Order
Photo Part No Description Price (each) Stock
11B1345CP Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear $1,482.67 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $10.14 To Order
Photo Part No Description Price (each) Stock
11F1277SP Washer - M10 x 1.27 x 14.8 $1.19 To Order

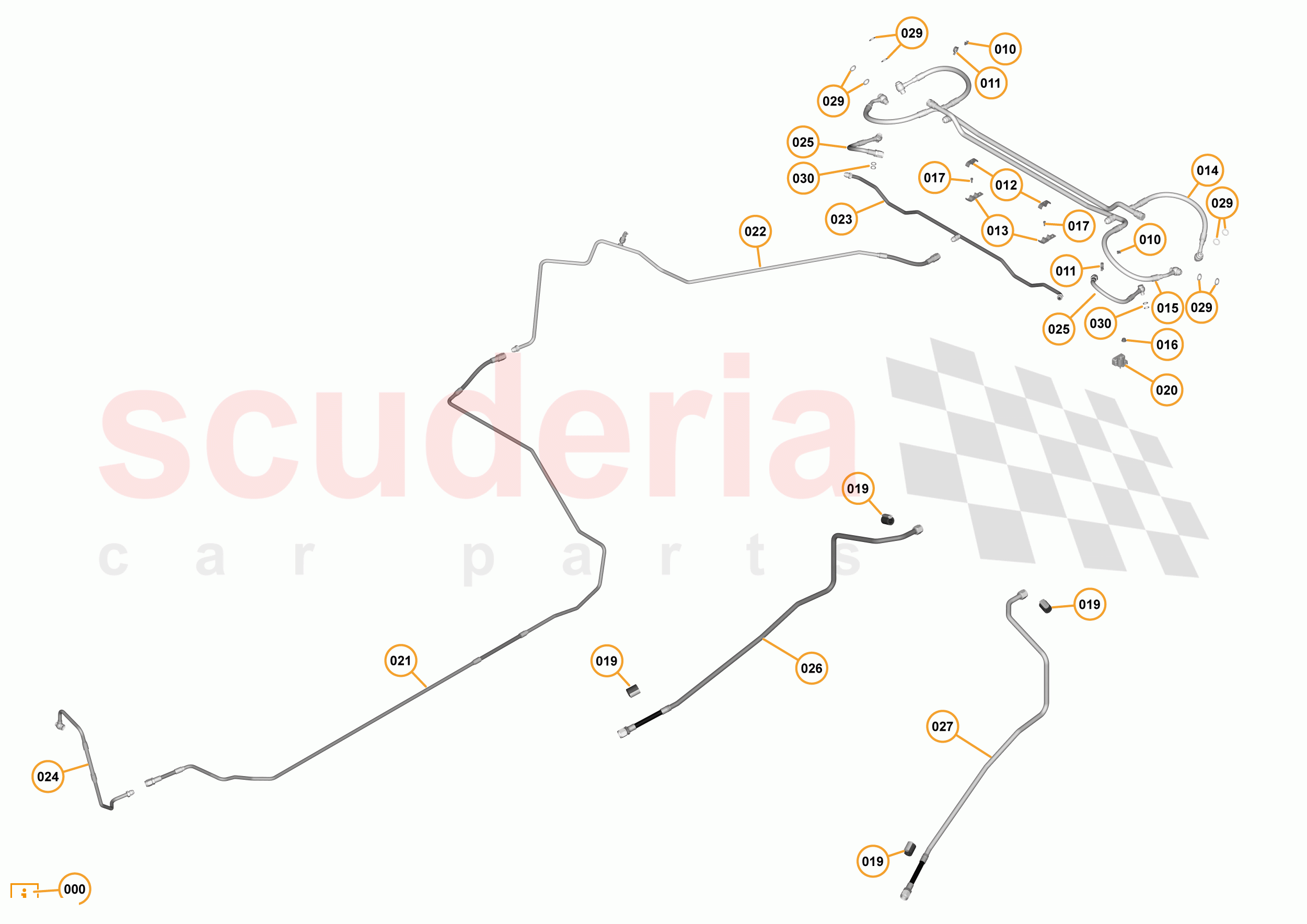

7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2 of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B1615CP
QUICK RELEASE - SUSPENSION BLEED CONNECTOR 		$247.20 2
TO
010 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 2
PE
 Enquire
011 00RB034
CLIP - 14-15MM - MALE 		- 2
PE
 Enquire
012 11B0703CP
Hose Seperator - Upper 		$40.60 1
TO
013 11B0704CP
HOSE SEPERATOR-LOW24 		$40.60 1
TO
014 11B1347CP
Hose - Suspension - Lateral - Rear - Upper - MY2015 		$1,188.33 1
TO
015 11B1348CP
Hose - Suspension - Lateral - Rear - Lower - MY2015 		$2,819.80 1
TO
016 00RA055
NUT - M6 - LOCKING - HEX 		- 1
PE
 Enquire
017 00RA058
SCREW - M4X10 - CAP SOCKET - 12.9 		- 2
PE
 Enquire
019 00RA357
PIPE PROTECTOR 		- 4
PE
 Enquire
020 11M0252CP
Sensor - Accelerometer 		$201.40 1
TO
021 11B1114CP
Hose - Suspension - Rear - Nose Lift 		$913.96 1
TO
022 11B1115CP
Hose - Suspension - Rear Frame - Nose Lift 		$629.62 1
TO
023 11B0986CP
Hose - Suspension - Rear to Dampers - Nose Lift 		$345.26 1
TO
024 11B1112CP
Hose - Suspension - Rear to Valve - Nose Lift 		$487.43 1
TO
025 11B1113CP
Hose - Damper Flexi - Rear - Noselift 		$243.70 2
TO
026 11B1346CP
Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH 		$1,502.99 1
TO
027 11B1345CP
Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear 		$1,482.67 1
TO
028 12F0684CP
Banjo Bolt - M14x1.5 		$45.68 4
TO
029 12F0685CP
Washer - Sealing - M14 		$10.14 8
TO
030 11F1277SP
Washer - M10 x 1.27 x 14.8 		$1.19 4
TO
