McLaren 675LT Spider - 14 - L1 - COOLING SYSTEM - 14.5 - 01 - HIGH TEMPERATURE RADIATORS & FANS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11L0250CP SEAL - RADIATOR TO BODY - TOP $42.82 To Order
Photo Part No Description Price (each) Stock
11L0378CP SEAL - RADIATOR TO BODY - FRONT $65.44 To Order
Photo Part No Description Price (each) Stock
11L0377CP SEAL - RADIATOR TO CONDENSER $65.44 To Order
Photo Part No Description Price (each) Stock
11L0392CP RADIATOR - ENGINE COOLANT - LH $1,624.84 To Order
Photo Part No Description Price (each) Stock
11L0376CP RADIATOR - ENGINE COOLANT - RH $1,624.84 To Order
Photo Part No Description Price (each) Stock
11L0512RP Bracket - Radiator Mounting - Fore - Lower - LH - 675LT $60.90 To Order
Photo Part No Description Price (each) Stock
11L0513RP Bracket - Radiator Mounting - Fore - Lower - RH - 675LT $60.90 To Order
Photo Part No Description Price (each) Stock
11L0514RP Bracket - Radiator Mounting - Aft - Lower - LH - 675LT $111.69 To Order
Photo Part No Description Price (each) Stock
11L0515RP Bracket - Radiator Mounting - Aft - Lower - RH - 675LT $111.69 To Order
Photo Part No Description Price (each) Stock
11L0536RP Fan - Assy - Radiator - 675LT $906.35 To Order
Photo Part No Description Price (each) Stock
11L0516RP Bracket - Radiator Mounting - Upper - LH - 675LT $55.84 To Order
Photo Part No Description Price (each) Stock
11L0517RP Bracket - Radiator Mounting - Upper - RH - 675LT $55.84 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RC074 SPACER - 6.5 X 12.7 X 6.4 Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order

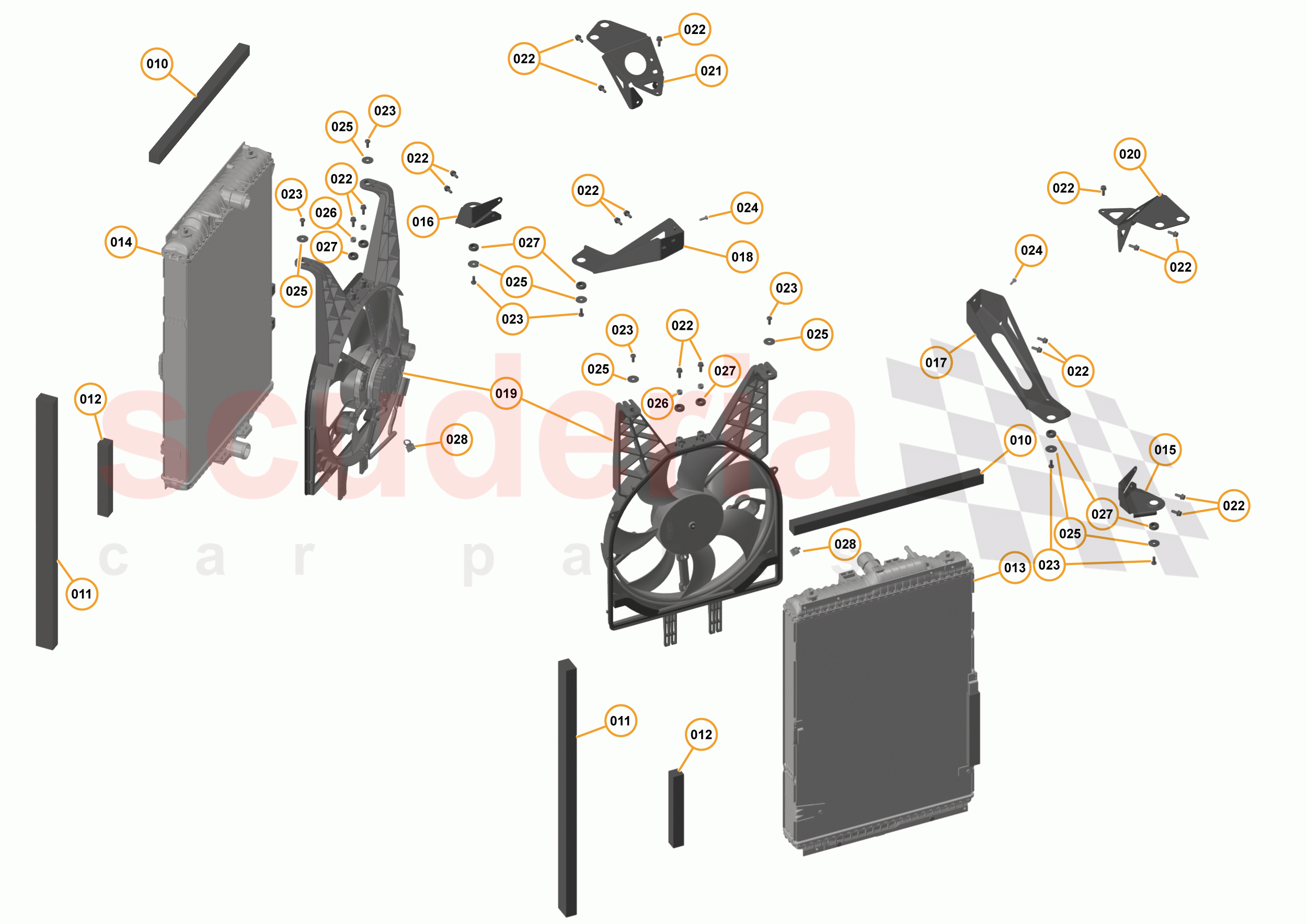

14 - L1 - COOLING SYSTEM - 14.5 - 01 - HIGH TEMPERATURE RADIATORS & FANS of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11L0250CP
SEAL - RADIATOR TO BODY - TOP 		$42.82 2
TO
011 11L0378CP
SEAL - RADIATOR TO BODY - FRONT 		$65.44 2
TO
012 11L0377CP
SEAL - RADIATOR TO CONDENSER 		$65.44 4
TO
013 11L0392CP
RADIATOR - ENGINE COOLANT - LH 		$1,624.84 1
TO
014 11L0376CP
RADIATOR - ENGINE COOLANT - RH 		$1,624.84 1
TO
015 11L0512RP
Bracket - Radiator Mounting - Fore - Lower - LH - 675LT 		$60.90 1
TO
016 11L0513RP
Bracket - Radiator Mounting - Fore - Lower - RH - 675LT 		$60.90 1
TO
017 11L0514RP
Bracket - Radiator Mounting - Aft - Lower - LH - 675LT 		$111.69 1
TO
018 11L0515RP
Bracket - Radiator Mounting - Aft - Lower - RH - 675LT 		$111.69 1
TO
019 11L0536RP
Fan - Assy - Radiator - 675LT 		$906.35 2
TO
020 11L0516RP
Bracket - Radiator Mounting - Upper - LH - 675LT 		$55.84 1
TO
021 11L0517RP
Bracket - Radiator Mounting - Upper - RH - 675LT 		$55.84 1
TO
022 00RA061
Screw - M6x16 - Flange Hex 		- 18
PE
 Enquire
023 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 8
PE
 Enquire
024 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 2
PE
 Enquire
025 00RC043
WASHER - M6XOD25 		- 8
PE
 Enquire
026 00RC074
SPACER - 6.5 X 12.7 X 6.4 		- 4
PE
 Enquire
027 00RG011
GROMMET - DIA 19 - RUBBER 		- 8
PE
 Enquire
028 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 2
PE
 Enquire
