13 - K1 - Fuel System - 13.2 - 02 - Fuel Delivery

McLaren 675LT Spider

Find Your Part

McLaren 675LT Spider - 13 - K1 - FUEL SYSTEM - 13.2 - 02 - FUEL DELIVERY

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11K0259RP Pipe - Fuel Feed - Tank to Engine Bay $132.00 To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
11K0211CP FUEL PURGE PIPE - BULKHEAD TO ENGINE $111.69 To Order
Photo Part No Description Price (each) Stock
13K0027CP PIPE - FUEL FEED - BAY TO ENGINE $81.23 To Order
Photo Part No Description Price (each) Stock
00RB141 SWIVEL CLIP - FEMALE CSC9 Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order

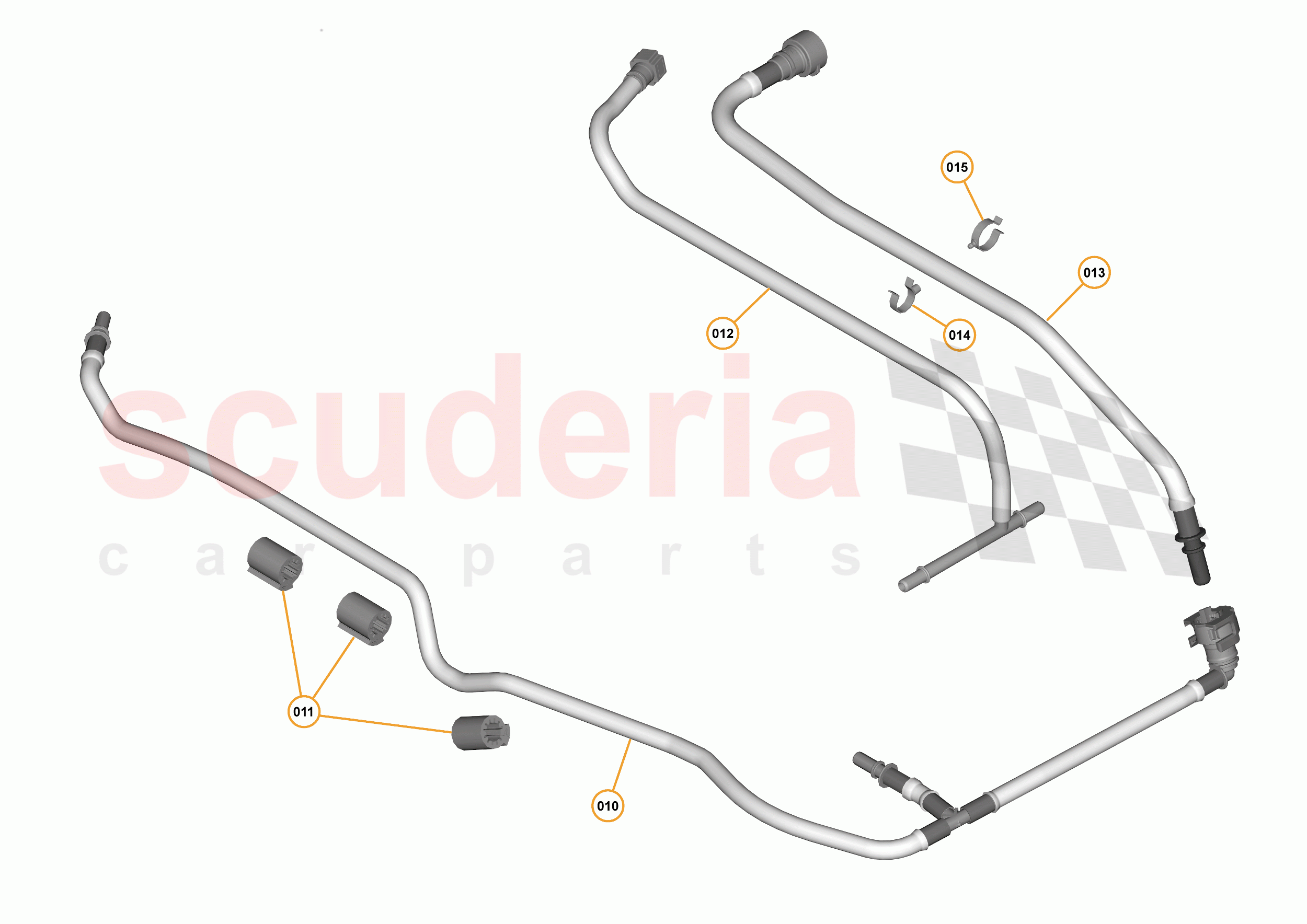

13 - K1 - FUEL SYSTEM - 13.2 - 02 - FUEL DELIVERY of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11K0259RP
Pipe - Fuel Feed - Tank to Engine Bay 		$132.00 1
TO
011 00RA366
PIPE PROTECTOR - 13MM ID 		- 3
PE
 Enquire
012 11K0211CP
FUEL PURGE PIPE - BULKHEAD TO ENGINE 		$111.69 1
TO
013 13K0027CP
PIPE - FUEL FEED - BAY TO ENGINE 		$81.23 1
TO
014 00RB141
SWIVEL CLIP - FEMALE CSC9 		- 1
PE
 Enquire
015 00RB008
CLIP - 18-20MM - MALE 		- 1
PE
 Enquire
