4 - A4 - Panels, Glazing, And Paint - 4.3 - 03 - Roof & Body...

McLaren 675LT Spider

Find Your Part

McLaren 675LT Spider - 4 - A4 - PANELS, GLAZING, AND PAINT - 4.3 - 03 - ROOF & BODYSIDE PANELS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A9594RP Cover - Wheel Arch Liner - Front - Carbon - LH $1,218.63 To Order
11A9602RP Cover - Wheel Arch Liner - Front - LH $483.38 To Order
Photo Part No Description Price (each) Stock
11A9595RP Cover - Wheel Arch Liner - Front - Carbon - RH $1,218.63 To Order
11A9603RP Cover - Wheel Arch Liner - Front - RH $483.38 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
11A4653CP PAD WHEEL ARCH COVER SUPPORT $30.20 To Order
Photo Part No Description Price (each) Stock
11A8964RP Rocker Outer Panel - Assy - LH - 675LT $4,632.55 To Order
Photo Part No Description Price (each) Stock
11A8967RP Rocker Outer Panel - Assy - RH - 675LT $4,753.39 To Order
Photo Part No Description Price (each) Stock
00RM007 Ratchet Rivet - 19.8-35 - Black - 0705831 Enquire To Order
Photo Part No Description Price (each) Stock
11A9227RP COVER PANEL ROCKER SATIN CARBON BRANDED MCLAREN - LH $8,640.74 To Order
11A4489CP Cover Panel - Rocker - Carbon - LH $3,887.32 To Order
Photo Part No Description Price (each) Stock
11A9226RP COVER PANEL ROCKER SATIN CARBON BRANDED MCLAREN - RH $8,640.74 To Order
11A4480CP Cover Panel - Rocker - Carbon - RH $3,887.32 To Order
Photo Part No Description Price (each) Stock
11A5399SP Capping Panel - A-Post - Spider - LH $604.24 To Order
Photo Part No Description Price (each) Stock
11A9841CP Trim - A Post Aero - LH $241.69 To Order
Photo Part No Description Price (each) Stock
11A5396SP Capping Panel - A-Post - Spider - RH $604.24 To Order
Photo Part No Description Price (each) Stock
11A9842CP Trim - A Post Aero - RH $241.69 To Order
Photo Part No Description Price (each) Stock
11A4728CP A-PILLAR CAPPING NVH BLOCK $35.23 To Order
Photo Part No Description Price (each) Stock
11A7814CP Pad - Support - Front Fender - A-Pillar Casting $35.23 To Order
Photo Part No Description Price (each) Stock
11A7598SP Capping Panel - Header - Spider Enquire To Order
Photo Part No Description Price (each) Stock
11A6600SP Seal - Capping - A-Post - Spider - LH $120.83 To Order
Photo Part No Description Price (each) Stock
11A6601SP Seal - Capping - A-Post - Spider - RH $120.83 To Order
Photo Part No Description Price (each) Stock
11A7550SP Bulkhead Liner - Spider - Centre $812.40 To Order
Photo Part No Description Price (each) Stock
11A7548SP Bulkhead Liner - Spider - LH $161.11 To Order
Photo Part No Description Price (each) Stock
11A7549SP Bulkhead Liner - Spider - RH $149.09 To Order
Photo Part No Description Price (each) Stock
11A4090SP Roof Stowage Drip Panel - Federal Enquire To Order
11A2018SP Roof Stowage Drip Panel - Spider $243.70 To Order
Photo Part No Description Price (each) Stock
00RA176 FIRTREE - 7.2X16X14 Enquire To Order
Photo Part No Description Price (each) Stock
11A4164SP Release Button - Tonneau - Luggage Compartment Lid - US Enquire To Order
Photo Part No Description Price (each) Stock
00RL015 CABLE TIE - SF100 - 18X - 110MM Enquire To Order
Photo Part No Description Price (each) Stock
11A5307SP HATCH - BULKHEAD $491.71 To Order
Photo Part No Description Price (each) Stock
11A6417SP Heatshield - Hatch - Bulkhead $422.96 To Order
Photo Part No Description Price (each) Stock
00RA399 Screw - M4x12 Enquire To Order
Photo Part No Description Price (each) Stock
11A5842SP WASHER - TINNERMANN - M4 $14.21 To Order
Photo Part No Description Price (each) Stock
00RA430 SCREW - M4X10 - BUTTON HEAD - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RC030 Washer - M4x12x1 Enquire To Order
Photo Part No Description Price (each) Stock
11A9866LP Heatshild - Bulkhead $966.78 To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
11A1657SP GROMMET - SPIDER $35.54 To Order
Photo Part No Description Price (each) Stock
11A6967SP Heatshield - Bulkhead - LH - Front - Spider $203.09 To Order
Photo Part No Description Price (each) Stock
11A6639SP Heatshield - Bulkhead - LH - Rear - Spider $284.34 To Order
Photo Part No Description Price (each) Stock
11A6968SP Heatshield - Bulkhead - RH - Front - Spider $203.09 To Order
Photo Part No Description Price (each) Stock
11A6641SP Heatshield - Bulkhead - RH - Rear - Spider $284.34 To Order
Photo Part No Description Price (each) Stock
11A1471SP Bracket - Bulkhead Upper Support - Spider Enquire To Order
Photo Part No Description Price (each) Stock
11A5401SP EDGE PROTECTION - BULKHEAD BRACKET - REAR - SPIDER $11.14 To Order

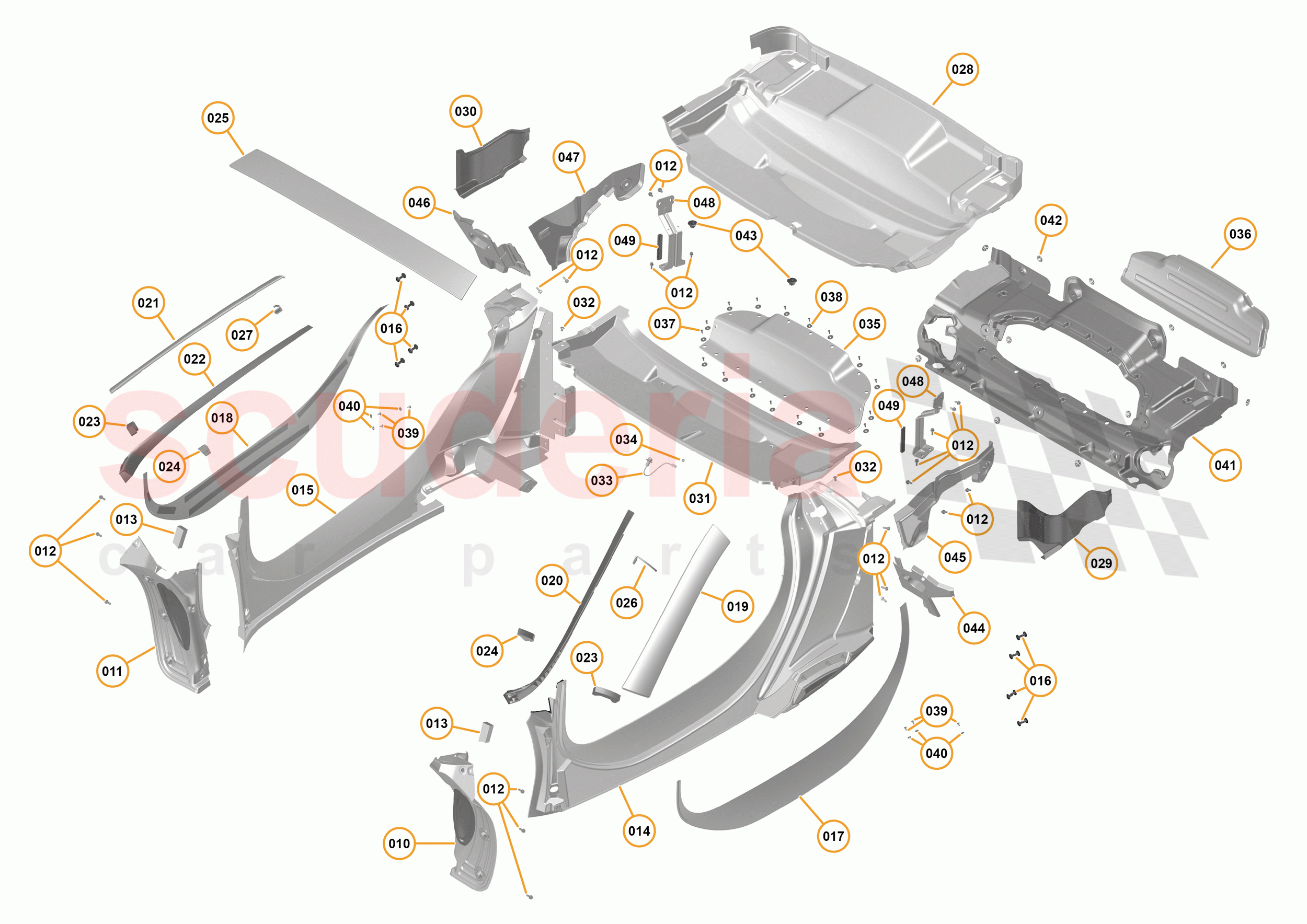

4 - A4 - PANELS, GLAZING, AND PAINT - 4.3 - 03 - ROOF & BODYSIDE PANELS of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A9594RP
Cover - Wheel Arch Liner - Front - Carbon - LH 		$1,218.63 1
TO
010 11A9602RP
Cover - Wheel Arch Liner - Front - LH 		$483.38 1
TO
011 11A9595RP
Cover - Wheel Arch Liner - Front - Carbon - RH 		$1,218.63 1
TO
011 11A9603RP
Cover - Wheel Arch Liner - Front - RH 		$483.38 1
TO
012 00RA061
Screw - M6x16 - Flange Hex 		- 14
PE
 Enquire
013 11A4653CP
PAD WHEEL ARCH COVER SUPPORT 		$30.20 2
TO
014 11A8964RP
Rocker Outer Panel - Assy - LH - 675LT 		$4,632.55 1
TO
015 11A8967RP
Rocker Outer Panel - Assy - RH - 675LT 		$4,753.39 1
TO
016 00RM007
Ratchet Rivet - 19.8-35 - Black - 0705831 		- 24
PE
 Enquire
017 11A9227RP
COVER PANEL ROCKER SATIN CARBON BRANDED MCLAREN - LH 		$8,640.74 1
TO
017 11A4489CP
Cover Panel - Rocker - Carbon - LH 		$3,887.32 1
TO
018 11A9226RP
COVER PANEL ROCKER SATIN CARBON BRANDED MCLAREN - RH 		$8,640.74 1
TO
018 11A4480CP
Cover Panel - Rocker - Carbon - RH 		$3,887.32 1
TO
019 11A5399SP
Capping Panel - A-Post - Spider - LH 		$604.24 1
TO
020 11A9841CP
Trim - A Post Aero - LH
Superseded parts: 11A8974CP; 		$241.69 1
TO
021 11A5396SP
Capping Panel - A-Post - Spider - RH 		$604.24 1
TO
022 11A9842CP
Trim - A Post Aero - RH
Superseded parts: 11A8975CP; 		$241.69 1
TO
023 11A4728CP
A-PILLAR CAPPING NVH BLOCK 		$35.23 2
TO
024 11A7814CP
Pad - Support - Front Fender - A-Pillar Casting
Superseded parts: 11A7476CP; 		$35.23 2
TO
025 11A7598SP
Capping Panel - Header - Spider
Superseded parts: 11A5390SP; 		- 1
PE
 Enquire
026 11A6600SP
Seal - Capping - A-Post - Spider - LH 		$120.83 1
TO
027 11A6601SP
Seal - Capping - A-Post - Spider - RH 		$120.83 1
TO
028 11A7550SP
Bulkhead Liner - Spider - Centre
Superseded parts: 11A6642SP; 		$812.40 1
TO
029 11A7548SP
Bulkhead Liner - Spider - LH
Superseded parts: 11A6643SP; 		$161.11 1
TO
030 11A7549SP
Bulkhead Liner - Spider - RH
Superseded parts: 11A6644SP; 		$149.09 1
TO
031 11A4090SP
Roof Stowage Drip Panel - Federal 		- 1
PE
 Enquire
031 11A2018SP
Roof Stowage Drip Panel - Spider 		$243.70 1
TO
032 00RA176
FIRTREE - 7.2X16X14 		- 4
PE
 Enquire
033 11A4164SP
Release Button - Tonneau - Luggage Compartment Lid - US 		- 1
PE
 Enquire
034 00RL015
CABLE TIE - SF100 - 18X - 110MM 		- 1
PE
 Enquire
035 11A5307SP
HATCH - BULKHEAD 		$491.71 1
TO
036 11A6417SP
Heatshield - Hatch - Bulkhead 		$422.96 1
TO
037 00RA399
Screw - M4x12 		- 17
PE
 Enquire
038 11A5842SP
WASHER - TINNERMANN - M4 		$14.21 17
TO
039 00RA430
SCREW - M4X10 - BUTTON HEAD - 10.9 		- 2
PE
 Enquire
040 00RC030
Washer - M4x12x1 		- 2
PE
 Enquire
041 11A9866LP
Heatshild - Bulkhead 		$966.78 1
TO
042 00RC039
WASHER - M6 - STAR LOCK 		- 11
PE
 Enquire
043 11A1657SP
GROMMET - SPIDER 		$35.54 2
TO
044 11A6967SP
Heatshield - Bulkhead - LH - Front - Spider 		$203.09 1
TO
045 11A6639SP
Heatshield - Bulkhead - LH - Rear - Spider 		$284.34 1
TO
046 11A6968SP
Heatshield - Bulkhead - RH - Front - Spider 		$203.09 1
TO
047 11A6641SP
Heatshield - Bulkhead - RH - Rear - Spider 		$284.34 1
TO
048 11A1471SP
Bracket - Bulkhead Upper Support - Spider 		- 2
PE
 Enquire
049 11A5401SP
EDGE PROTECTION - BULKHEAD BRACKET - REAR - SPIDER 		$11.14 2
TO
