McLaren 650S Spider - 16 - F1 - POWER UNIT - 16.9 - 01 - POWER UNIT - CRANK POSITION + TRANSMISSION STUDS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $60.42 To Order
Photo Part No Description Price (each) Stock
11F0798CP Stud Kit - Engine to Transmission $30.44 To Order
Photo Part No Description Price (each) Stock
11F0800CP Over Pressure - Oil Relief Valve - Engine - Assy $111.69 To Order
Photo Part No Description Price (each) Stock
11F2209CP CRANK TIMING PLUG - ENGINE - INC. O-RING $13.18 To Order
Photo Part No Description Price (each) Stock
11F1018CP Seal - Clutch Cooler Pipe Connection $30.44 To Order
Photo Part No Description Price (each) Stock
11F1942CP WASHER - LADDERFRAME - M18 - COPPER $11.14 To Order

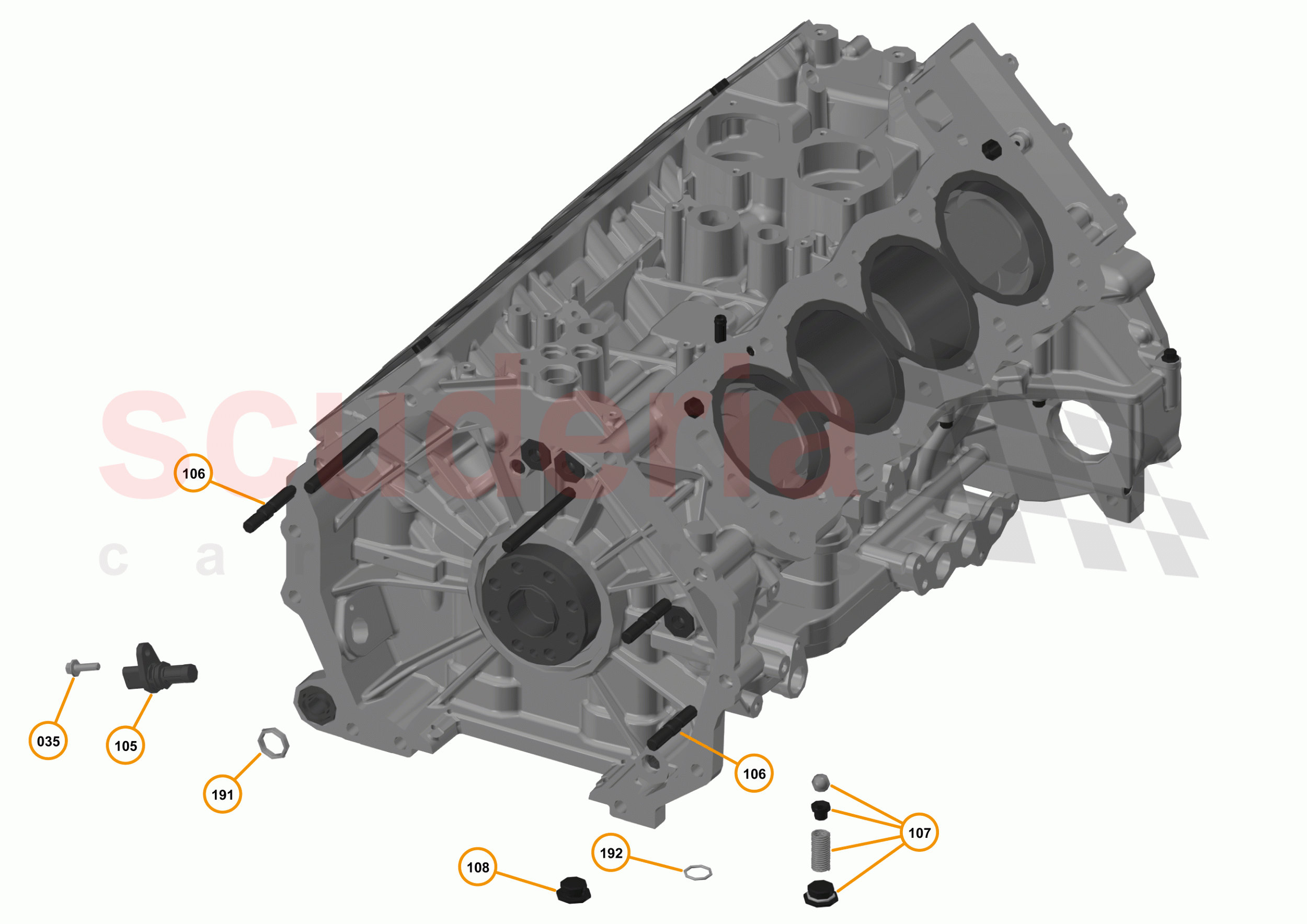

16 - F1 - POWER UNIT - 16.9 - 01 - POWER UNIT - CRANK POSITION + TRANSMISSION STUDS of McLaren McLaren 650S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1189CP
BOLT- LADDERFRAME- M10X110 		$12.17 1
TO
010 11F1190CP
BOLT- LADDERFRAME - M12X115 		$15.21 1
TO
011 11F1193CP
WASHER: SEALING M10 		$12.17 1
TO
011 11F1194CP
WASHER: SEALING M12 		$12.17 1
TO
035 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
105 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$60.42 1
TO
106 11F0798CP
Stud Kit - Engine to Transmission 		$30.44 1
TO
107 11F0800CP
Over Pressure - Oil Relief Valve - Engine - Assy 		$111.69 1
TO
108 11F2209CP
CRANK TIMING PLUG - ENGINE - INC. O-RING 		$13.18 1
TO
191 11F1018CP
Seal - Clutch Cooler Pipe Connection 		$30.44 1
TO
192 11F1942CP
WASHER - LADDERFRAME - M18 - COPPER 		$11.14 1
TO
