McLaren 650S Coupe - 6 - B1 - FRONT SUSPENSION - 6.1 - 01 - DAMPING FRONT PIPES KINETIC H2

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $10.14 To Order
12F0684CP Banjo Bolt - M14x1.5 $45.68 To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $40.60 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0383CP Bracket - APMU $142.16 To Order
Photo Part No Description Price (each) Stock
11B1302CP Color codes: APMU $3,222.64 To Order
11B0209CP APMU - 12C $1,198.32 To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
11M0252CP Sensor - Accelerometer $201.40 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0701CP Pipe - Suspension - APMU LH to Lateral Lower Pipe - Front - RHD $670.23 To Order
11B0699CP Pipe - Suspension - APMU - LH Tunnel & Lateral Lower Pipe - Front - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11B1272CP Pipe - Suspension - APMU RH to Lateral Lower Pipe - Front - RHD $1,299.87 To Order
11B0700CP ASSY-PIPE-APMU-RH-RHD $528.06 To Order
11B0698CP Pipe - Suspension - APMU - RH Tunnel & Lateral Lower Pipe - Front - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11B1287CP Hose - Suspension - Lateral - Front - Upper - RHD $2,762.25 To Order
11B0627CP ASSY-HOSE-FR-LATERAL-UPR-RHD $751.49 To Order
11B1140CP Hose - Suspension - Lateral - Front - Upper - LHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RB050 Saddle Clamp - 13-15 Enquire To Order
Photo Part No Description Price (each) Stock
11B0622CP BRKT-SUSPENSION PI24 $45.30 To Order
Photo Part No Description Price (each) Stock
11B1143CP Hose - Suspension - Lateral - Front - Lower - RHD $812.40 To Order
11B0628CP ASSY-HOSE-FR-LATERAL-LWR-RHD $853.04 To Order
11B1141CP Hose - Suspension - Lateral - Front - Lower - LHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11B0216CP ASSY-PIPE-LINE-LONGI-FR-RH-FR $690.54 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB003 P Clip - DIA 14 Enquire To Order
Photo Part No Description Price (each) Stock
11B0382CP ASSY-PIPE-LINE-LONGDI-FR-RH-RR $507.76 To Order
11B1346CP Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH $1,502.99 To Order
Photo Part No Description Price (each) Stock
11B0381CP ASSY-PIPE-LINE-LONGDI-FR-LH-RR $609.32 To Order
11B1345CP Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear $1,482.67 To Order
Photo Part No Description Price (each) Stock
11B0217CP ASSY-PIPE-LINE-LONGI-FR-LH-FR $385.87 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB022 Clip - 4-4.8mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB025 Clip - 13-14mm - Male-Female Enquire To Order
Photo Part No Description Price (each) Stock
11B1105CP Bracket - Bodyside to Valve Block - Nose Lift $132.00 To Order
Photo Part No Description Price (each) Stock
11B1107CP Bracket - Pipe - Suspension - Nose Lift $50.76 To Order
Photo Part No Description Price (each) Stock
11B1106CP Bracket - Valve Block - Nose Lift $50.76 To Order
Photo Part No Description Price (each) Stock
11C0615CP Clip - 10MM - Moulded $55.84 To Order
Photo Part No Description Price (each) Stock
11B0998CP Clip - Double - DIA 10mm - Moulded - A Ray $4.84 To Order
Photo Part No Description Price (each) Stock
11B1104CP Clip - Single - DIA 10mm - Moulded $18.26 To Order
Photo Part No Description Price (each) Stock
11B1109CP Hose - Suspension - Front - Left - Nose Lift $467.13 To Order
Photo Part No Description Price (each) Stock
11B1420CP Hose - Suspension - Front - Right - Nose Lift $731.17 To Order
Photo Part No Description Price (each) Stock
11B1103CP Valve Block - Nose lift $422.96 To Order
Photo Part No Description Price (each) Stock
11B1131CP Spacer - Nose Lift $54.90 To Order
Photo Part No Description Price (each) Stock
11B1130CP Washer - Copper - Dia 12 - Noselift $6.06 To Order
Photo Part No Description Price (each) Stock
11D0124CP MOUNT - AV - RUBBER $35.54 To Order
Photo Part No Description Price (each) Stock
11B1133CP Banjo Bolt - M12 - XL - Noselift $100.68 To Order
Photo Part No Description Price (each) Stock
11B0225CP Accumulator - Suspension $604.24 To Order
Photo Part No Description Price (each) Stock
11F1277SP Washer - M10 x 1.27 x 14.8 $1.19 To Order

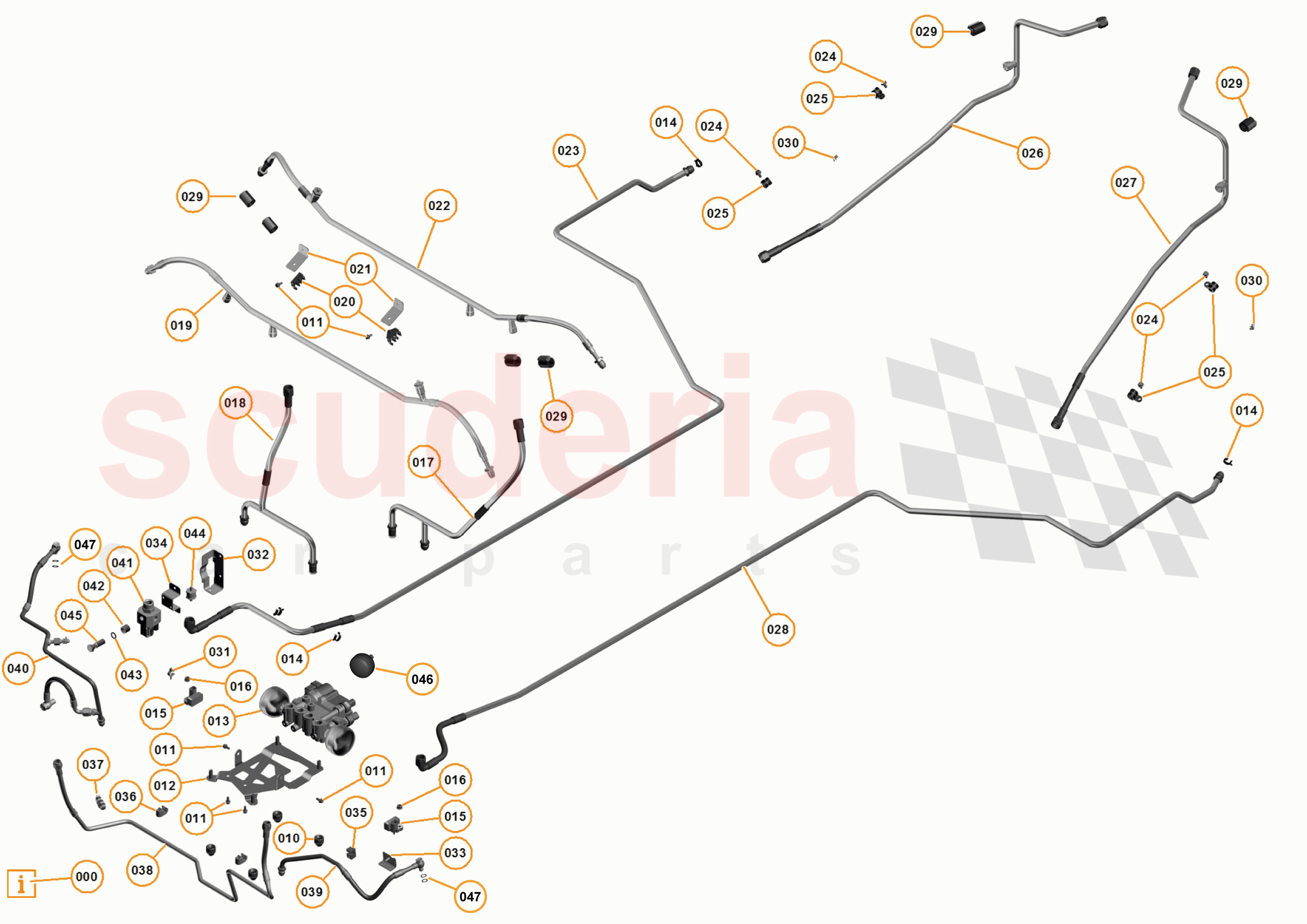

6 - B1 - FRONT SUSPENSION - 6.1 - 01 - DAMPING FRONT PIPES KINETIC H2 of McLaren McLaren 650S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 12F0685CP
Washer - Sealing - M14 		$10.14 2
TO
000 12F0684CP
Banjo Bolt - M14x1.5 		$45.68 2
TO
010 11C0045CP
Mount - Anti-Vibration - Rubber 		$40.60 4
TO
011 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
012 11B0383CP
Bracket - APMU 		$142.16 1
TO
013 11B1302CP
Color codes: APMU
Color codes: APMU; 		$3,222.64 1
TO
013 11B0209CP
APMU - 12C
APMU - 12C; 		$1,198.32 1
TO
014 00RB044
SWIVEL PIPE CLIP - 16MM 		- 5
PE
 Enquire
015 11M0252CP
Sensor - Accelerometer 		$201.40 2
TO
016 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
017 11B0701CP
Pipe - Suspension - APMU LH to Lateral Lower Pipe - Front - RHD 		$670.23 1
TO
017 11B0699CP
Pipe - Suspension - APMU - LH Tunnel & Lateral Lower Pipe - Front - LHD 		- 1
PE
 Enquire
018 11B1272CP
Pipe - Suspension - APMU RH to Lateral Lower Pipe - Front - RHD
Superseded parts: 11B0700CP; 		$1,299.87 1
TO
018 11B0700CP
ASSY-PIPE-APMU-RH-RHD 		$528.06 1
TO
018 11B0698CP
Pipe - Suspension - APMU - RH Tunnel & Lateral Lower Pipe - Front - LHD 		- 1
PE
 Enquire
019 11B1287CP
Hose - Suspension - Lateral - Front - Upper - RHD 		$2,762.25 1
TO
019 11B0627CP
ASSY-HOSE-FR-LATERAL-UPR-RHD 		$751.49 1
TO
019 11B1140CP
Hose - Suspension - Lateral - Front - Upper - LHD 		- 1
PE
 Enquire
019 11B0439CP
Hose - Suspension - Lateral - Front - Upper - LHD - 12C 		- 1
PE
 Enquire
020 00RB050
Saddle Clamp - 13-15 		- 2
PE
 Enquire
021 11B0622CP
BRKT-SUSPENSION PI24 		$45.30 2
TO
022 11B1143CP
Hose - Suspension - Lateral - Front - Lower - RHD 		$812.40 1
TO
022 11B0628CP
ASSY-HOSE-FR-LATERAL-LWR-RHD 		$853.04 1
TO
022 11B1141CP
Hose - Suspension - Lateral - Front - Lower - LHD 		- 1
PE
 Enquire
022 11B0443CP
Hose - Suspension - Lateral - Front - Lower - LHD - 12C 		- 1
PE
 Enquire
023 11B0216CP
ASSY-PIPE-LINE-LONGI-FR-RH-FR 		$690.54 1
TO
024 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
025 00RB003
P Clip - DIA 14 		- 4
PE
 Enquire
026 11B0382CP
ASSY-PIPE-LINE-LONGDI-FR-RH-RR 		$507.76 1
TO
026 11B1346CP
Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH 		$1,502.99 1
TO
027 11B0381CP
ASSY-PIPE-LINE-LONGDI-FR-LH-RR 		$609.32 1
TO
027 11B1345CP
Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear 		$1,482.67 1
TO
028 11B0217CP
ASSY-PIPE-LINE-LONGI-FR-LH-FR 		$385.87 1
TO
029 00RA357
PIPE PROTECTOR 		- 6
PE
 Enquire
030 00RB022
Clip - 4-4.8mm - Female 		- 2
PE
 Enquire
031 00RB025
Clip - 13-14mm - Male-Female 		- 1
PE
 Enquire
032 11B1105CP
Bracket - Bodyside to Valve Block - Nose Lift 		$132.00 1
TO
033 11B1107CP
Bracket - Pipe - Suspension - Nose Lift 		$50.76 1
TO
034 11B1106CP
Bracket - Valve Block - Nose Lift 		$50.76 1
TO
035 11C0615CP
Clip - 10MM - Moulded 		$55.84 1
TO
036 11B0998CP
Clip - Double - DIA 10mm - Moulded - A Ray 		$4.84 2
TO
037 11B1104CP
Clip - Single - DIA 10mm - Moulded 		$18.26 1
TO
038 11B1111CP
Hose - Suspension - Front - Centre - Nose Lift 		$609.32 1
TO
039 11B1109CP
Hose - Suspension - Front - Left - Nose Lift 		$467.13 1
TO
040 11B1420CP
Hose - Suspension - Front - Right - Nose Lift 		$731.17 1
TO
041 11B1103CP
Valve Block - Nose lift
Superseded parts: 11B0954CP; 		$422.96 1
TO
042 11B1131CP
Spacer - Nose Lift 		$54.90 1
TO
043 11B1130CP
Washer - Copper - Dia 12 - Noselift 		$6.06 2
TO
044 11D0124CP
MOUNT - AV - RUBBER 		$35.54 1
TO
045 11B1133CP
Banjo Bolt - M12 - XL - Noselift 		$100.68 1
TO
046 11B0225CP
Accumulator - Suspension 		$604.24 1
TO
047 11F1277SP
Washer - M10 x 1.27 x 14.8 		$1.19 4
TO
