McLaren 625C Spider - 3 - A3 -CLOSURES - 3.13 - 06 - CONVERTIBLE ROOF - HARNESS, DRAIN HOSES + SEALS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A8322SP RHT - SEAL - COMPOUND $64.95 To Order
Photo Part No Description Price (each) Stock
11A4030SP ECU - RHT $785.51 To Order
Photo Part No Description Price (each) Stock
11A4031SP Wiring Harness - RHT $1,027.21 To Order
Photo Part No Description Price (each) Stock
11A4009SP RHT - Sealing - Tonneau Inner - Complete Kit $1,450.18 To Order
Photo Part No Description Price (each) Stock
11A8271SP RHT - Roof - Seal - Front $1,087.63 To Order
Photo Part No Description Price (each) Stock
11A8325SP RHT - Roof - Seal - Rear $1,087.63 To Order
Photo Part No Description Price (each) Stock
11A4013SP RHT - Seal Kit - Back Light Upper Carrier $241.69 To Order
Photo Part No Description Price (each) Stock
11A4014SP RHT - Seal Kit - Back Light $2,356.56 To Order
Photo Part No Description Price (each) Stock
11A4006SP BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH $629.62 To Order
Photo Part No Description Price (each) Stock
11A6585SP Seal - Tonneau Cover - Primary - Spider $2,255.84 To Order
Photo Part No Description Price (each) Stock
11A7429SP Seal - Header - Spider - Front $1,611.30 To Order
Photo Part No Description Price (each) Stock
00RG040 Edge Clip - Connector - LH - EC43 Enquire To Order
Photo Part No Description Price (each) Stock
00RG041 Edge Clip - Connector - RH - EC42 Enquire To Order
Photo Part No Description Price (each) Stock
00RG043 Edge Clip - Vertical - 5mm Diameter Enquire To Order
Photo Part No Description Price (each) Stock
11A6586SP Sensor - Anti Pinch - Spider $322.24 To Order
Photo Part No Description Price (each) Stock
11A6611SP RHT - Seal - Bridging - LH $30.20 To Order
Photo Part No Description Price (each) Stock
11A6612SP RHT - Seal - Bridging - RH $40.26 To Order
Photo Part No Description Price (each) Stock
11A6609SP Tonneau - Seal - Leading Edge $75.52 To Order
Photo Part No Description Price (each) Stock
11A4006SP BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH $629.62 To Order
Photo Part No Description Price (each) Stock
11A4006SP BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH $629.62 To Order
Photo Part No Description Price (each) Stock
11A4164SP Release Button - Tonneau - Luggage Compartment Lid - US Enquire To Order

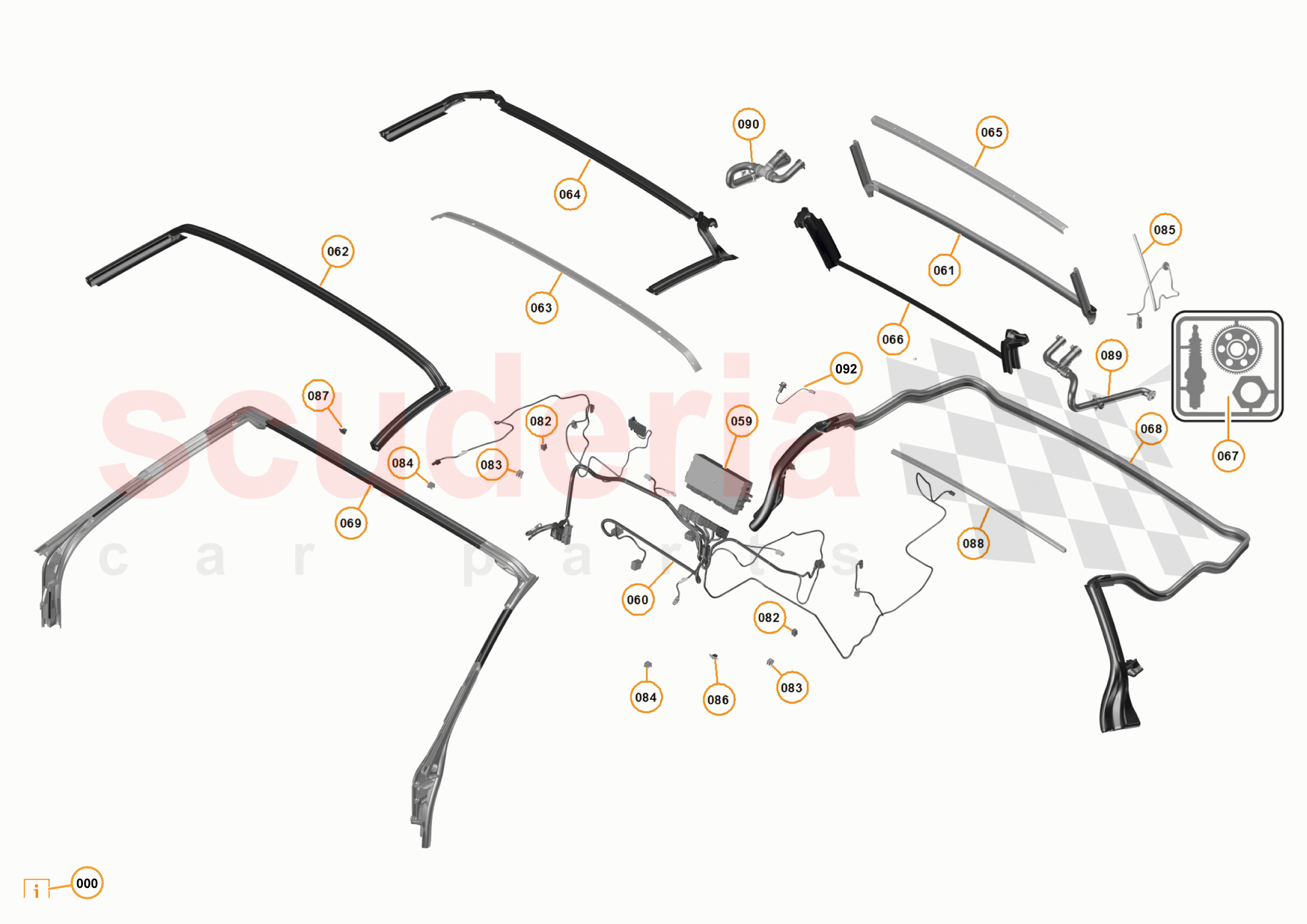

3 - A3 -CLOSURES - 3.13 - 06 - CONVERTIBLE ROOF - HARNESS, DRAIN HOSES + SEALS of McLaren McLaren 625C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A8322SP
RHT - SEAL - COMPOUND 		$64.95 1
TO
059 11A4030SP
ECU - RHT
ECU - RHT; 		$785.51 1
TO
060 11A4031SP
Wiring Harness - RHT 		$1,027.21 1
TO
061 11A4009SP
RHT - Sealing - Tonneau Inner - Complete Kit 		$1,450.18 1
TO
062 11A8271SP
RHT - Roof - Seal - Front
Superseded parts: 11A4010SP; 		$1,087.63 1
TO
063 11A4011SP
RHT - Roof - Carrier Seal Kit - Front 		$261.81 1
TO
064 11A8325SP
RHT - Roof - Seal - Rear
Superseded parts: 11A4012SP; 		$1,087.63 1
TO
065 11A4013SP
RHT - Seal Kit - Back Light Upper Carrier 		$241.69 1
TO
066 11A4014SP
RHT - Seal Kit - Back Light 		$2,356.56 1
TO

11A4006SP

BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH

from $629.62

068 11A6585SP
Seal - Tonneau Cover - Primary - Spider 		$2,255.84 1
TO
069 11A7429SP
Seal - Header - Spider - Front 		$1,611.30 1
TO
082 00RG040
Edge Clip - Connector - LH - EC43 		- 2
PE
 Enquire
083 00RG041
Edge Clip - Connector - RH - EC42 		- 2
PE
 Enquire
084 00RG043
Edge Clip - Vertical - 5mm Diameter
Superseded parts: 00RG042; 		- 2
PE
 Enquire
085 11A6586SP
Sensor - Anti Pinch - Spider 		$322.24 2
TO
086 11A6611SP
RHT - Seal - Bridging - LH 		$30.20 1
TO
087 11A6612SP
RHT - Seal - Bridging - RH 		$40.26 1
TO
088 11A6609SP
Tonneau - Seal - Leading Edge 		$75.52 1
TO
091 00RB133
Clip - Primary Seal 		- 8
PE
 Enquire
092 11A4164SP
Release Button - Tonneau - Luggage Compartment Lid - US 		- 1
PE
 Enquire
