McLaren 625C Coupe - 23 - M1 - ELECTRICAL DISTRIBUTION - 23.1 - 01 - ELECTRICAL DISTRIBUTION - POWER DISTRIBUTION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M1124CP BUSBAR - RHD 24 $1,712.02 To Order
11M0926CP BUSBAR - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11M2412CP WIRING HARNESS GND24OOP-LH $966.78 To Order
Photo Part No Description Price (each) Stock
00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M2413CP WIRING HARNESS GND24OOP-RH $966.78 To Order
Photo Part No Description Price (each) Stock
00RA262 HALF NUT - M8 - DIN 439 Enquire To Order
Photo Part No Description Price (each) Stock
11M0339CP TRUNKING-ELEC-REAR $85.58 To Order
Photo Part No Description Price (each) Stock
11M0338CP Trunking/Harness Routing - Tunnel $261.81 To Order
Photo Part No Description Price (each) Stock
11M0493CP Strap - Battery $140.97 To Order
Photo Part No Description Price (each) Stock
11M0490CP Bracket - Strap - Battery - Front $40.26 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11M3335CP Clamp - Gen 2 Battery Side - LH $264.02 To Order
11M0715CP CLAMP BATTERY SIDE-LH $50.76 To Order
Photo Part No Description Price (each) Stock
11M3307CP Clamp - Gen 2 Battery Side - RH $243.70 To Order
11M0714CP CLAMP BATTERY SIDE-RH $50.76 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0227CP BATTERY CABLE - NEGATIVE $151.05 To Order
Photo Part No Description Price (each) Stock
22MA597GP LV BATTERY 60AH $2,179.55 To Order
Photo Part No Description Price (each) Stock
11M3222CP Fusebox - Battery - Front $463.23 To Order
Photo Part No Description Price (each) Stock
11M3340CP Battery Upgrade Kit - GEN2 $825.77 To Order
Photo Part No Description Price (each) Stock
22MA274GP - BATTERY - SIDE RH - MY20 GEN3 $65.98 To Order
Photo Part No Description Price (each) Stock
22MA404GP BATTERY CABLE - NEGATIVE $548.37 To Order
Photo Part No Description Price (each) Stock
22MA347GP PRE FUSE BOX $284.34 To Order
Photo Part No Description Price (each) Stock
11MA038CP BATTERY GEN_3 LIN HARNESS $30.44 To Order

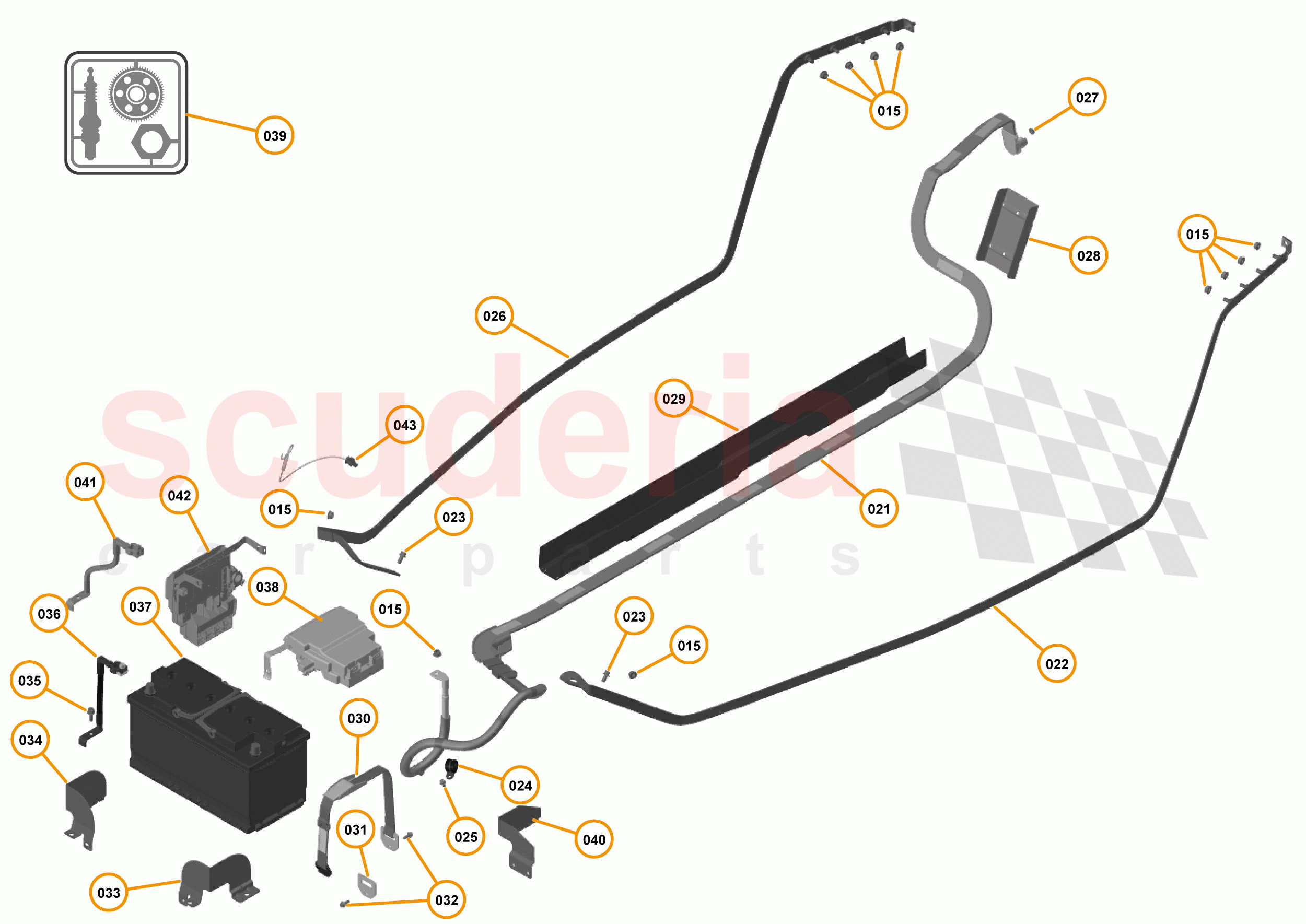

23 - M1 - ELECTRICAL DISTRIBUTION - 23.1 - 01 - ELECTRICAL DISTRIBUTION - POWER DISTRIBUTION of McLaren McLaren 625C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
015 00RA075
NUT - M8-8 - HEX 		- 12
PE
 Enquire
021 11M1124CP
BUSBAR - RHD 24 		$1,712.02 1
TO
021 11M0926CP
BUSBAR - LHD 		- 1
PE
 Enquire
022 11M2412CP
WIRING HARNESS GND24OOP-LH
Superseded parts: 11M0185CP; 		$966.78 1
TO
023 00RA344
SCREW - HEX - FLANGE - M8X16 - 8.8 		- 6
PE
 Enquire
024 00RB060
P CLIP - DIA 20 		- 2
PE
 Enquire
025 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 3
PE
 Enquire
026 11M2413CP
WIRING HARNESS GND24OOP-RH
Superseded parts: 11M0186CP; 		$966.78 1
TO
027 00RA262
HALF NUT - M8 - DIN 439 		- 1
PE
 Enquire
028 11M0339CP
TRUNKING-ELEC-REAR 		$85.58 1
TO
029 11M0338CP
Trunking/Harness Routing - Tunnel 		$261.81 1
TO
030 11M0493CP
Strap - Battery 		$140.97 1
TO
031 11M0490CP
Bracket - Strap - Battery - Front 		$40.26 1
TO
032 00RA313
SCREW - M6X16 - HEX - SILVER 		- 19
PE
 Enquire
033 11M3335CP
Clamp - Gen 2 Battery Side - LH 		$264.02 1
TO
033 11M0715CP
CLAMP BATTERY SIDE-LH 		$50.76 1
TO
034 11M3307CP
Clamp - Gen 2 Battery Side - RH 		$243.70 1
TO
034 11M0714CP
CLAMP BATTERY SIDE-RH 		$50.76 1
TO
035 00RA002
BOLT - M8X20 - HEX 		- 1
PE
 Enquire
036 11M0227CP
BATTERY CABLE - NEGATIVE 		$151.05 1
TO
037 22MA597GP
LV BATTERY 60AH 		$2,179.55 1
TO
038 11M3222CP
Fusebox - Battery - Front
Superseded parts: 11M1391CP; 		$463.23 1
TO
039 11M3340CP
Battery Upgrade Kit - GEN2 		$825.77 1
TO
040 22MA274GP
- BATTERY - SIDE RH - MY20 GEN3
Superseded parts: 11M1286CP; 		$65.98 1
TO
041 22MA404GP
BATTERY CABLE - NEGATIVE 		$548.37 1
TO
042 22MA347GP
PRE FUSE BOX 		$284.34 1
TO
043 11MA038CP
BATTERY GEN_3 LIN HARNESS 		$30.44 1
TO
