McLaren 625C Coupe - 16 - F1 - POWER UNIT - 16.3 - 01 - POWER UNIT - CYLINDER HEAD AND VALVE TRAIN

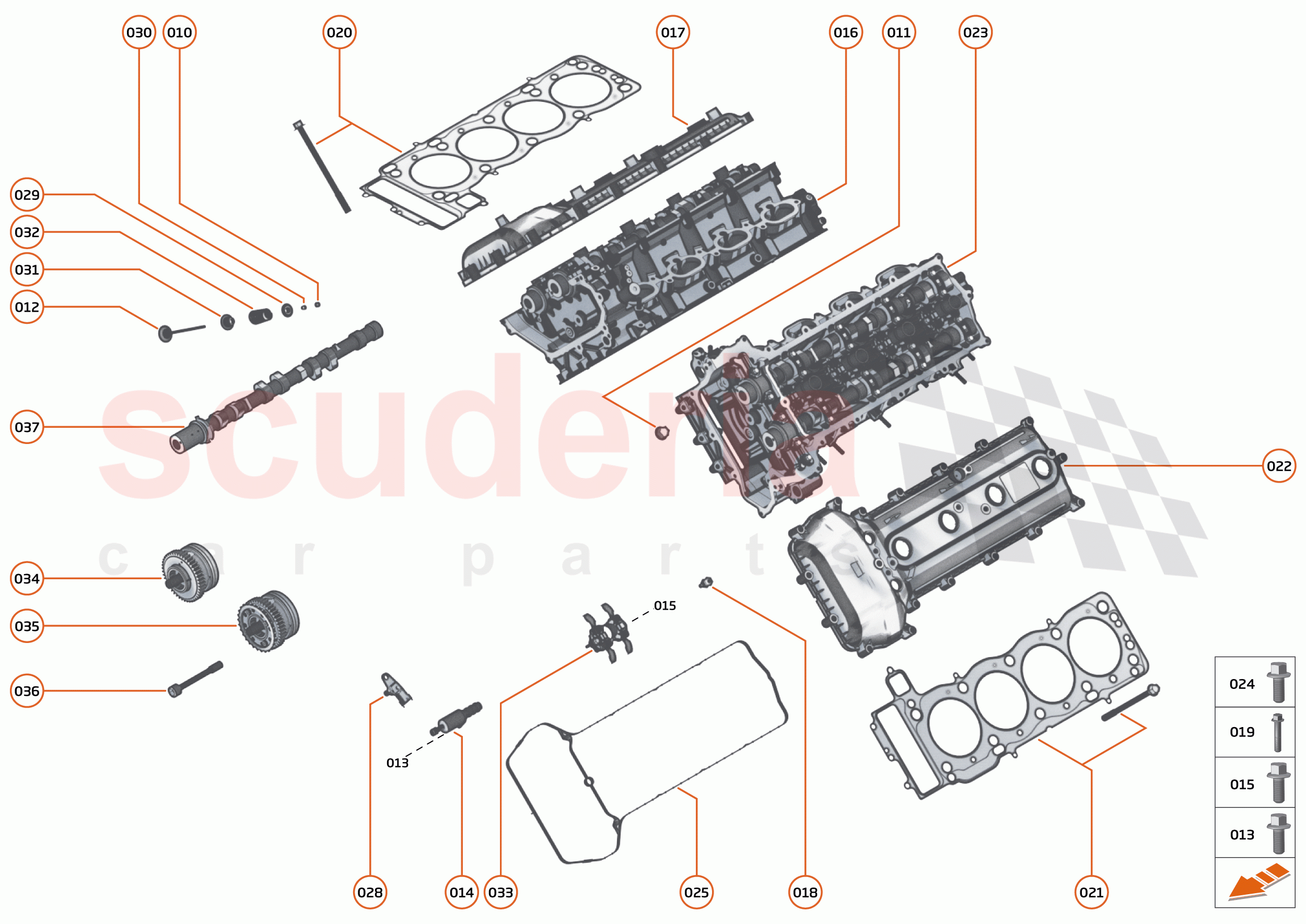

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1510CP SHIM - VALVE LASH - 2.935 $191.32 To Order
11F1509CP SHIM - VALVE LASH - 2.92 $191.32 To Order
11F1508CP SHIM - VALVE LASH - 2.905 $191.32 To Order
...and 69 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11F1688CP Cap - Head Bolt $12.17 To Order
Photo Part No Description Price (each) Stock
12F0583CP EXHAUST VALVE-STD $322.46 To Order
11F1228CP INTAKE VALVE-STD Enquire To Order
Photo Part No Description Price (each) Stock
11F0803CP Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser $7.09 To Order
Photo Part No Description Price (each) Stock
11F2459CP Solenoid - Engine Cam Phaser $201.40 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F0712CP CYLINDER HEAD - ENGINE - ASSY - RH $12,535.91 To Order
11F1545CP Cylinder Head - Engine - Assy - RH - MY2015 $9,356.94 To Order
Photo Part No Description Price (each) Stock
11F1152CP CAM COVER-RH 24 $288.53 To Order
Photo Part No Description Price (each) Stock
11F1060CP Mount - Anti-Vibration - Ignition Coil - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0826CP Bolt - M6x40 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1693CP Head Gasket Kit - inc. Bolts - Engine - RH - MY15 $507.76 To Order
11F1691CP HEAD GASKET KIT - INC. BOLTS - ENGINE - RH - 12C - P1 $684.79 To Order
Photo Part No Description Price (each) Stock
11F2316CP HEAD GASKET KIT - INC. BOLTS - ENGINE - LH - 12C - P1 $690.54 To Order
11F1692CP Head Gasket Kit - inc. Bolts - Engine - LH - MY15 $523.66 To Order
Photo Part No Description Price (each) Stock
11F1153CP CAM COVER-LH 24 $288.53 To Order
Photo Part No Description Price (each) Stock
11F0711CP CYLINDER HEAD - ENGINE - ASSY - LH $12,535.91 To Order
11F1544CP Cylinder Head - Engine - Assy - LH - MY2015 $9,356.94 To Order
Photo Part No Description Price (each) Stock
11F1685CP BOLT - CYLINDER HEAD INC. WASHER $11.14 To Order
Photo Part No Description Price (each) Stock
14FA259CP SEAL CAM COVER $243.70 IN STOCK
Photo Part No Description Price (each) Stock
11F0740CP ENGINE CAM PHASE SENSOR $241.69 To Order
Photo Part No Description Price (each) Stock
11F1977CP RETAINER SPRING $13.18 To Order
Photo Part No Description Price (each) Stock
11F1975CP Color codes: COLLET $8.71 To Order
Photo Part No Description Price (each) Stock
11F1979CP SEAL- VALVE STEM $13.18 To Order
Photo Part No Description Price (each) Stock
11F1981CP VALVE SPRING Enquire To Order
Photo Part No Description Price (each) Stock
11F2684CP ROCKER MOUNTING $483.38 To Order
Photo Part No Description Price (each) Stock
11F1991CP ASSY - VCT - EXHAUST - RH $2,224.62 To Order
11F1988CP ASSY - VCT - EXHAUST - LH $2,224.62 To Order
Photo Part No Description Price (each) Stock
11F1990CP ASSY - VCT - INLET - RH $2,224.62 To Order
11F1989CP ASSY - VCT - INLET - LH $2,224.62 To Order
Photo Part No Description Price (each) Stock
11FA015CP BOLT - VCT $55.84 To Order
Photo Part No Description Price (each) Stock
11F1513CP CAMSHAFT-EXHAUST-RH $483.38 To Order
11F1237CP CAMSHAFT - EXHAUST - RH - 12C $483.38 To Order
11F1512CP CAMSHAFT-EXHAUST-LH $483.38 To Order
...and 3 more part variants. See table on right for more details.
16 - F1 - POWER UNIT - 16.3 - 01 - POWER UNIT - CYLINDER HEAD AND VALVE TRAIN of McLaren McLaren 625C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1510CP
SHIM - VALVE LASH - 2.935 		$191.32 1
TO
010 11F1509CP
SHIM - VALVE LASH - 2.92 		$191.32 1
TO
010 11F1508CP
SHIM - VALVE LASH - 2.905 		$191.32 1
TO
010 11F1507CP
SHIM - VALVE LASH - 2.89 		$191.32 1
TO
010 11F1506CP
SHIM - VALVE LASH - 2.875 		$191.32 1
TO
010 11F1505CP
SHIM - VALVE LASH - 2.86 		$191.32 1
TO
010 11F1504CP
SHIM - VALVE LASH - 2.845 		$191.32 1
TO
010 11F1503CP
SHIM - VALVE LASH - 2.83 		$191.32 1
TO
010 11F1502CP
SHIM - VALVE LASH - 2.815 		$191.32 1
TO
010 11F1501CP
SHIM - VALVE LASH - 2.8 		$191.32 1
TO
010 11F1500CP
SHIM - VALVE LASH - 2.785 		$191.32 1
TO
010 11F1499CP
SHIM - VALVE LASH - 2.77 		$191.32 1
TO
010 11F1498CP
SHIM - VALVE LASH - 2.755 		$191.32 1
TO
010 11F1497CP
SHIM - VALVE LASH - 2.74 		$191.32 1
TO
010 11F1496CP
SHIM - VALVE LASH - 2.725 		$191.32 1
TO
010 11F1495CP
SHIM - VALVE LASH - 2.71 		$191.32 1
TO
010 11F1494CP
SHIM - VALVE LASH - 2.695 		$191.32 1
TO
010 11F1493CP
SHIM - VALVE LASH - 2.68 		$191.32 1
TO
010 11F2741CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.505 		- 1
PE
 Enquire
010 11F2740CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.49 		- 1
PE
 Enquire
010 11F2739CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.475 		- 1
PE
 Enquire
010 11F2738CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.46 		- 1
PE
 Enquire
010 11F2737CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.445 		- 1
PE
 Enquire
010 11F2736CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.43 		- 1
PE
 Enquire
010 11F2735CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.415 		- 1
PE
 Enquire
010 11F2734CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.4 		- 1
PE
 Enquire
010 11F2733CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.385 		- 1
PE
 Enquire
010 11F2732CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.37 		- 1
PE
 Enquire
010 11F2731CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.355 		- 1
PE
 Enquire
010 11F2730CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.34 		- 1
PE
 Enquire
010 11F2729CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.325 		- 1
PE
 Enquire
010 11F2728CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.31 		- 1
PE
 Enquire
010 11F2727CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.295 		- 1
PE
 Enquire
010 11F2726CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.28 		- 1
PE
 Enquire
010 11F2725CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.265 		- 1
PE
 Enquire
010 11F2724CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.25 		- 1
PE
 Enquire
010 11F2723CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.235 		- 1
PE
 Enquire
010 11F2722CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.22 		- 1
PE
 Enquire
010 11F2721CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.205 		- 1
PE
 Enquire
010 11F2720CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.19 		- 1
PE
 Enquire
010 11F2719CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.175 		- 1
PE
 Enquire
010 11F2718CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.16 		- 1
PE
 Enquire
010 11F2717CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.145 		- 1
PE
 Enquire
010 11F2716CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.13 		- 1
PE
 Enquire
010 11F2715CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.115 		- 1
PE
 Enquire
010 11F2714CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.1 		- 1
PE
 Enquire
010 11F2713CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.085 		- 1
PE
 Enquire
010 11F2712CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.07 		- 1
PE
 Enquire
010 11F2711CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.055 		- 1
PE
 Enquire
010 11F2710CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.04 		- 1
PE
 Enquire
010 11F2709CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.025 		- 1
PE
 Enquire
010 11F2708CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.01 		- 1
PE
 Enquire
010 11F2707CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.995 		- 1
PE
 Enquire
010 11F2706CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.98 		- 1
PE
 Enquire
010 11F2705CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.965 		- 1
PE
 Enquire
010 11F2704CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.95 		- 1
PE
 Enquire
010 11F2703CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.665 		- 1
PE
 Enquire
010 11F2702CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.65 		$142.16 1
TO
010 11F2701CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.635 		$142.16 1
TO
010 11F2700CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.62 		$142.16 1
TO
010 11F2699CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.605 		- 1
PE
 Enquire
010 11F2698CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.59 		$142.16 1
TO
010 11F2697CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.575 		- 1
PE
 Enquire
010 11F2696CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.56 		$142.16 1
TO
010 11F2695CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.545 		$142.16 1
TO
010 11F2694CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.53 		- 1
PE
 Enquire
010 11F2693CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.515 		- 1
PE
 Enquire
010 11F2692CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.5 		- 1
PE
 Enquire
010 11F2691CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.485 		- 1
PE
 Enquire
010 11F2690CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.47 		- 1
PE
 Enquire
010 11F2689CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.455 		- 1
PE
 Enquire
010 11F2688CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.44 		- 1
PE
 Enquire
011 11F1688CP
Cap - Head Bolt 		$12.17 4
TO
012 12F0583CP
EXHAUST VALVE-STD 		$322.46 1
TO
012 11F1228CP
INTAKE VALVE-STD 		- 1
PE
 Enquire
013 11F0803CP
Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser 		$7.09 1
TO
014 11F2459CP
Solenoid - Engine Cam Phaser 		$201.40 4
TO
015 11F1776CP
BOLT - M6X30 - HEX 		$10.14 1
TO
016 11F0712CP
CYLINDER HEAD - ENGINE - ASSY - RH 		$12,535.91 1
TO
016 11F1545CP
Cylinder Head - Engine - Assy - RH - MY2015 		$9,356.94 1
TO
017 11F1152CP
CAM COVER-RH 24 		$288.53 1
TO
018 11F1060CP
Mount - Anti-Vibration - Ignition Coil - Engine 		- 1
PE
 Enquire
019 11F0826CP
Bolt - M6x40 - Engine 		- 1
PE
 Enquire
020 11F1693CP
Head Gasket Kit - inc. Bolts - Engine - RH - MY15 		$507.76 1
TO
020 11F1691CP
HEAD GASKET KIT - INC. BOLTS - ENGINE - RH - 12C - P1 		$684.79 1
TO
021 11F2316CP
HEAD GASKET KIT - INC. BOLTS - ENGINE - LH - 12C - P1 		$690.54 1
TO
021 11F1692CP
Head Gasket Kit - inc. Bolts - Engine - LH - MY15 		$523.66 1
TO
022 11F1153CP
CAM COVER-LH 24
Superseded parts: 11F0395CP; 		$288.53 1
TO
023 11F0711CP
CYLINDER HEAD - ENGINE - ASSY - LH 		$12,535.91 1
TO
023 11F1544CP
Cylinder Head - Engine - Assy - LH - MY2015 		$9,356.94 1
TO
024 11F1685CP
BOLT - CYLINDER HEAD INC. WASHER 		$11.14 20
TO
025 14FA259CP
SEAL CAM COVER
IN STOCK 		$243.70 2
IN
028 11F0740CP
ENGINE CAM PHASE SENSOR 		$241.69 1
TO
029 11F1977CP
RETAINER SPRING 		$13.18 1
TO
030 11F1975CP
Color codes: COLLET
Color codes: COLLET; 		$8.71 1
TO
031 11F1979CP
SEAL- VALVE STEM 		$13.18 1
TO
032 11F1981CP
VALVE SPRING 		- 1
PE
 Enquire
033 11F2684CP
ROCKER MOUNTING 		$483.38 1
TO
034 11F1991CP
ASSY - VCT - EXHAUST - RH 		$2,224.62 2
TO
034 11F1988CP
ASSY - VCT - EXHAUST - LH 		$2,224.62 2
TO
035 11F1990CP
ASSY - VCT - INLET - RH 		$2,224.62 2
TO
035 11F1989CP
ASSY - VCT - INLET - LH 		$2,224.62 2
TO
036 11FA015CP
BOLT - VCT
VCT BOLT; 		$55.84 4
TO
037 11F1513CP
CAMSHAFT-EXHAUST-RH 		$483.38 1
TO
037 11F1237CP
CAMSHAFT - EXHAUST - RH - 12C 		$483.38 1
TO
037 11F1512CP
CAMSHAFT-EXHAUST-LH 		$483.38 1
TO
037 11F1235CP
CAMSHAFT - EXHAUST - LH - 12C 		$483.38 1
TO
037 11F1236CP
CAMSHAFT - INTAKE RH - 252x11 		$906.35 1
TO
037 11F1234CP
CAMSHAFT - INTAKE LH - 252x11 		$1,012.99 1
TO

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
