McLaren 620R - 38 - TRANSMISSION COOLING SYSTEMS - 38.2 - CLUTCH OIL COOLER FEED + RTRN PIPE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
13F0528CP Hose - Clutch Cooler - Low Temperature Radiators - Feed $142.16 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order

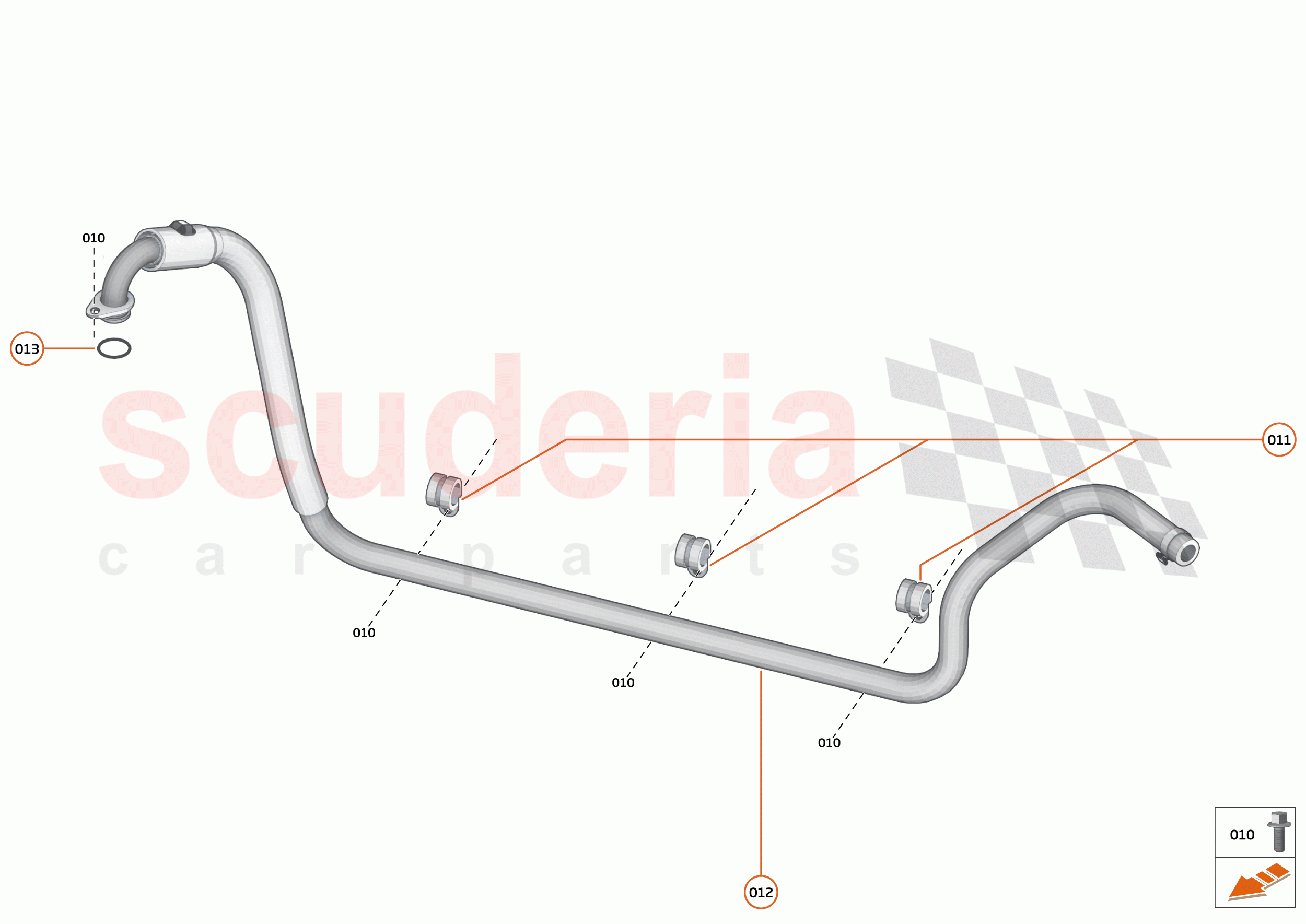

38 - TRANSMISSION COOLING SYSTEMS - 38.2 - CLUTCH OIL COOLER FEED + RTRN PIPE of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
011 00RB060
P CLIP - DIA 20 		- 3
PE
 Enquire
012 13F0528CP
Hose - Clutch Cooler - Low Temperature Radiators - Feed 		$142.16 1
TO
013 00RA367
PIPE PROTECTOR - 19MM ID 		- 1
PE
 Enquire
