32 - Engine - 32.8 - Breather Assembly

McLaren 620R

Find Your Part

McLaren 620R - 32 - ENGINE - 32.8 - BREATHER ASSEMBLY

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1681CP BRACKET - PCV - INC CLIPS $30.44 To Order
Photo Part No Description Price (each) Stock
11F2008CP HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE $324.96 To Order
Photo Part No Description Price (each) Stock
12F0722CP Bracket - Front Intake Check Valve $111.69 To Order
Photo Part No Description Price (each) Stock
11F2060CP SEAL - O-RING - 16-2.5 FKM $12.17 To Order
Photo Part No Description Price (each) Stock
13F0638CP HOSE ASSY - BREATHER TO TURBOCHARGER - ENGINE $35.54 To Order
Photo Part No Description Price (each) Stock
13F0858CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE $81.23 To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
11F1777CP BOLT - M6X40 - HEX $4.65 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
11F0991CP Bracket - Support - Cam Cover - Engine $203.09 To Order

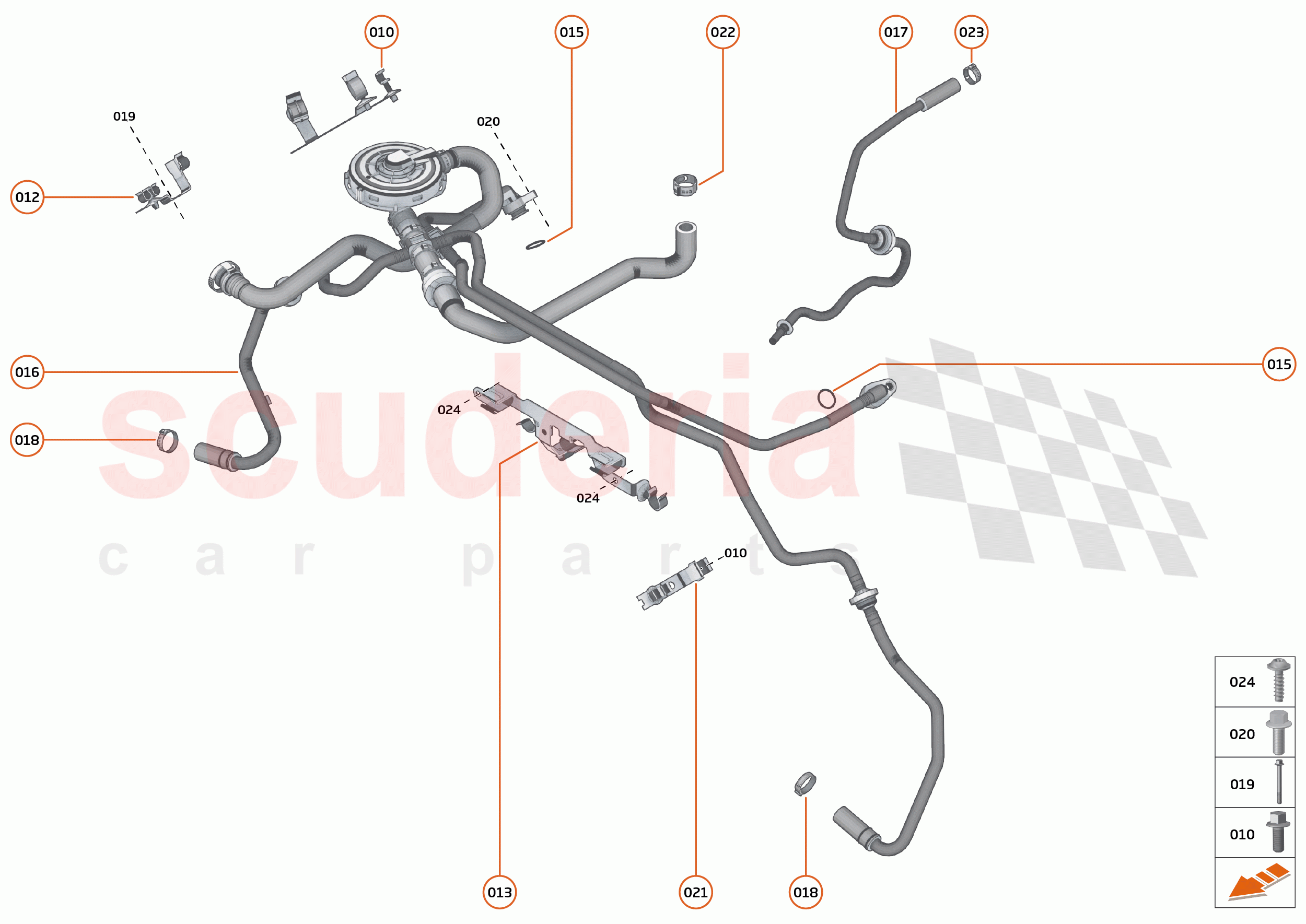

32 - ENGINE - 32.8 - BREATHER ASSEMBLY of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1681CP
BRACKET - PCV - INC CLIPS 		$30.44 -
TO
011 12F0710CP
CLIP - ONE WAY - RAYMOND 		$25.37 -
TO
012 11F2008CP
HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE 		$324.96 -
TO
013 12F0722CP
Bracket - Front Intake Check Valve 		$111.69 -
TO
014 13F0463CP
BREATHER ASSY - ENGINE 		$1,819.40 -
TO
015 11F2060CP
SEAL - O-RING - 16-2.5 FKM 		$12.17 -
TO
016 13F0638CP
HOSE ASSY - BREATHER TO TURBOCHARGER - ENGINE 		$35.54 -
TO
017 13F0858CP
FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE 		$81.23 -
TO
018 00RB094
OETIKER CLIP - 21.0 		- -
PE
 Enquire
019 11F1777CP
BOLT - M6X40 - HEX 		$4.65 -
TO
020 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 -
TO
021 11F0991CP
Bracket - Support - Cam Cover - Engine 		$203.09 -
TO
