32 - Engine - 32.4 - Exhaust Manifold & Turbochargers

McLaren 620R

Find Your Part

McLaren 620R - 32 - ENGINE - 32.4 - EXHAUST MANIFOLD & TURBOCHARGERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11FA017CP EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S $14.21 To Order
Photo Part No Description Price (each) Stock
13F0545CP TURBOCHARGER ASSY - ENGINE - RH $3,127.86 To Order
Photo Part No Description Price (each) Stock
13F0546CP TURBOCHARGER ASSY - ENGINE - LH $3,127.86 To Order
Photo Part No Description Price (each) Stock
13F0598CP HEATSHIELD - TURBOCHARGER - - LH $60.42 To Order
Photo Part No Description Price (each) Stock
13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE $96.45 To Order
Photo Part No Description Price (each) Stock
13FA070CP SCREW - M6X24 Enquire To Order
Photo Part No Description Price (each) Stock
13F0738CP NUT - M8 - TURBOCHARGER TO MANIFOLD $15.21 To Order
Photo Part No Description Price (each) Stock
13F0743CP V-RING - TURBOCHARGER - SEAL 59.4 X 64 X 3.3MM $30.44 To Order
Photo Part No Description Price (each) Stock
13F0796CP HEATSHIELD - CAM COVER RH $161.11 To Order
Photo Part No Description Price (each) Stock
13F0797CP HEATSHIELD - EXHAUST MANIFOLD - UPPER LH $243.70 To Order
Photo Part No Description Price (each) Stock
13F0798CP HEATSHIELD - EXHAUST MANIFOLD - LOWER LH $284.34 To Order
Photo Part No Description Price (each) Stock
13F0800CP HEATSHIELD - EXHAUST MANIFOLD - LOWER RH $284.34 To Order
Photo Part No Description Price (each) Stock
13F0801CP EXHAUST MANIFOLD - ENGINE - RH $6,554.72 To Order
Photo Part No Description Price (each) Stock
13F0802CP EXHAUST MANIFOLD - ENGINE - LH Enquire To Order
Photo Part No Description Price (each) Stock
13F0809CP HEATSHIELD - EXHAUST MANIFOLD - UPPER RH $243.70 To Order
Photo Part No Description Price (each) Stock
11F1116CP Wastegate Assembly - Turbocharger - Engine $1,624.84 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
11F0811CP ENGINE-HEAD HEATSHIELD-LH $132.00 To Order
Photo Part No Description Price (each) Stock
13F0879CP Kit - Dump Valve - Electric - Inc Screws $284.34 To Order

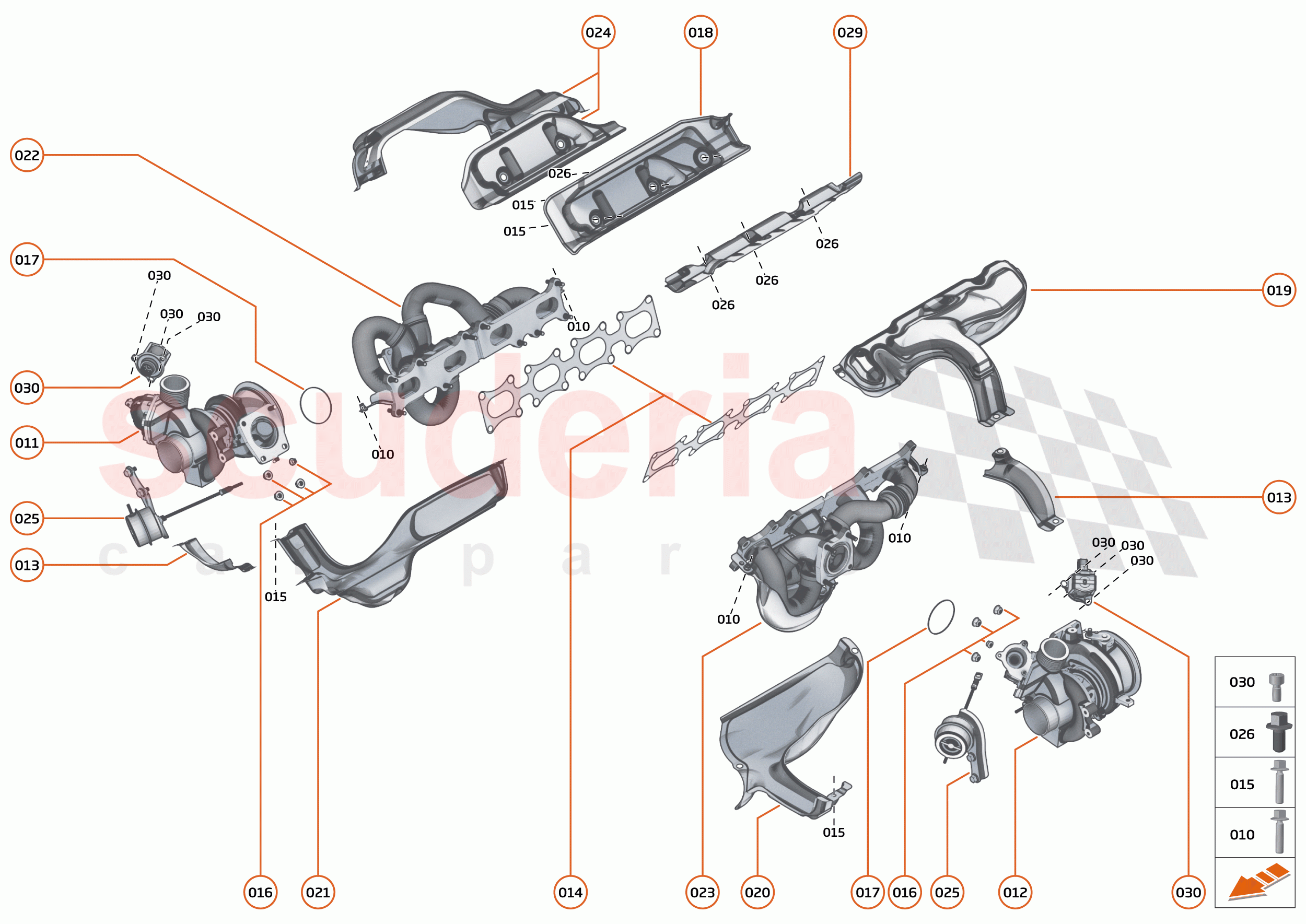

32 - ENGINE - 32.4 - EXHAUST MANIFOLD & TURBOCHARGERS of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11FA017CP
EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S 		$14.21 -
TO
011 13F0545CP
TURBOCHARGER ASSY - ENGINE - RH 		$3,127.86 -
TO
012 13F0546CP
TURBOCHARGER ASSY - ENGINE - LH 		$3,127.86 -
TO
013 13F0598CP
HEATSHIELD - TURBOCHARGER - - LH 		$60.42 -
TO
014 13F0599CP
GASKET - EXHAUST MANIFOLD - ENGINE 		$96.45 -
TO
015 13FA070CP
SCREW - M6X24 		- -
PE
 Enquire
016 13F0738CP
NUT - M8 - TURBOCHARGER TO MANIFOLD 		$15.21 -
TO
017 13F0743CP
V-RING - TURBOCHARGER - SEAL 59.4 X 64 X 3.3MM 		$30.44 -
TO
018 13F0796CP
HEATSHIELD - CAM COVER RH 		$161.11 -
TO
019 13F0797CP
HEATSHIELD - EXHAUST MANIFOLD - UPPER LH 		$243.70 -
TO
020 13F0798CP
HEATSHIELD - EXHAUST MANIFOLD - LOWER LH 		$284.34 -
TO
021 13F0800CP
HEATSHIELD - EXHAUST MANIFOLD - LOWER RH 		$284.34 -
TO
022 13F0801CP
EXHAUST MANIFOLD - ENGINE - RH 		$6,554.72 -
TO
023 13F0802CP
EXHAUST MANIFOLD - ENGINE - LH 		- -
PE
 Enquire
024 13F0809CP
HEATSHIELD - EXHAUST MANIFOLD - UPPER RH 		$243.70 -
TO
025 11F1116CP
Wastegate Assembly - Turbocharger - Engine 		$1,624.84 -
TO
026 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 -
TO
029 11F0811CP
ENGINE-HEAD HEATSHIELD-LH 		$132.00 -
TO
030 13F0879CP
Kit - Dump Valve - Electric - Inc Screws 		$284.34 -
TO
