46 - Interior Systems - 46.8 - Lower & Rear Trim

McLaren 620R

Find Your Part

McLaren 620R - 46 - INTERIOR SYSTEMS - 46.8 - LOWER & REAR TRIM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11N0887CP FUSEBOX ACCESS PANEL - INTERIOR $120.83 To Order
Photo Part No Description Price (each) Stock
31NA029CP ASSY HVAC SHROUD LH-RHD $289.61 To Order
31NA010CP ASSY HVAC SHROUD LH-LHD $274.69 To Order
Photo Part No Description Price (each) Stock
31NA093CP ASSY HVAC SHROUD RH-LHD - FED Enquire To Order
31NA030CP ASSY HVAC SHROUD RH-RHD $289.61 To Order
31NA011CP ASSY HVAC SHROUD RH-LHD $274.69 To Order
Photo Part No Description Price (each) Stock
11N2976CP LABEL - CAUTION - DOOR RELEASE - LEATHER STRAP $30.44 To Order
Photo Part No Description Price (each) Stock
11N0308CP Stowage Net Enquire To Order
Photo Part No Description Price (each) Stock
11N2282CP Hook - Stowage Net Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11N0642CP FOAM-DRIVER FOOTRE24-RHD $121.84 To Order
Photo Part No Description Price (each) Stock
11N0984CP FOOTREST - RHD - DRIVER $223.40 To Order
Photo Part No Description Price (each) Stock
11N0643CP FOOTREST - FOAM - LHD - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
11N0975CP FOOTREST - LHD - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
11N1412CP BRKT FOOTREST SUPPORT DRIVER $182.79 To Order
Photo Part No Description Price (each) Stock
11N1491CP Footrest - US - Driver Enquire To Order
Photo Part No Description Price (each) Stock
11N2648CP Footrest - US - Passenger Enquire To Order
11N2646CP Footrest - LHD - Passenger Enquire To Order
11N2647CP Footrest - RHD - Passenger Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11N2597CP NVH PAD - PASSENGER FOOTREST - US Enquire To Order
11N2596CP NVH PAD - PASS FOO24EST RHD $15.21 To Order
11N2595CP NVH PAD - PASSENGER FOOTREST - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA372 BOLT - HEX HEAD - LOCK - M5X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
11N1114CP BRACKET - SUPPORT - HVAC $101.53 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13NA300CP BRACKET - SPEAKER - QUARTER PANEL - REAR - LH $104.11 To Order
Photo Part No Description Price (each) Stock
13NA301CP BRACKET - SPEAKER - QUARTER PANEL - REAR - RH $104.11 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11N0687CP FOOTREST - SUPPORT - LHD - PASSENGER Enquire To Order
11N0893CP FOOTREST - SUPPORT - US - PASSENGER Enquire To Order
11N0688CP FOOTREST - SUPPORT - RHD - PASSENGER $284.34 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11N1490CP FOOTREST - ADAPTOR - US - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
13NA471MP ASSY CAPPING PANEL RR-AIS Enquire To Order
13N0168CP CAPPING PANEL - REAR Enquire To Order
Photo Part No Description Price (each) Stock
13N0731CP B PILLAR - TRIM - LOWER - RH Enquire To Order
Photo Part No Description Price (each) Stock
13N0254CP ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - RH $82.92 To Order
Photo Part No Description Price (each) Stock
13N0732CP B PILLAR - TRIM - LOWER - LH Enquire To Order
Photo Part No Description Price (each) Stock
13N0253CP ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - LH $90.62 To Order
Photo Part No Description Price (each) Stock
11N3997RP FOOTWELL PROTECTIVE TAPE - RHD - 675LT $132.00 To Order
Photo Part No Description Price (each) Stock
12N0875CP PROTECTIVE TAPE - FOOTWELL - DRIVER $243.70 To Order
Photo Part No Description Price (each) Stock
31NA013CP BRANDING PLATE $1,208.49 To Order
Photo Part No Description Price (each) Stock
00RC106 STARLOCK - DIAMETER 4.5MM SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA413 Clip - Firtree 6.8x12x14 Enquire To Order
Photo Part No Description Price (each) Stock
13NA633MP ASSY DUCT COVER LH RR LWR-AIS $1,940.70 To Order
Photo Part No Description Price (each) Stock
13NA634MP ASSY DUCT COVER RH RR LWR-AIS $2,071.69 To Order

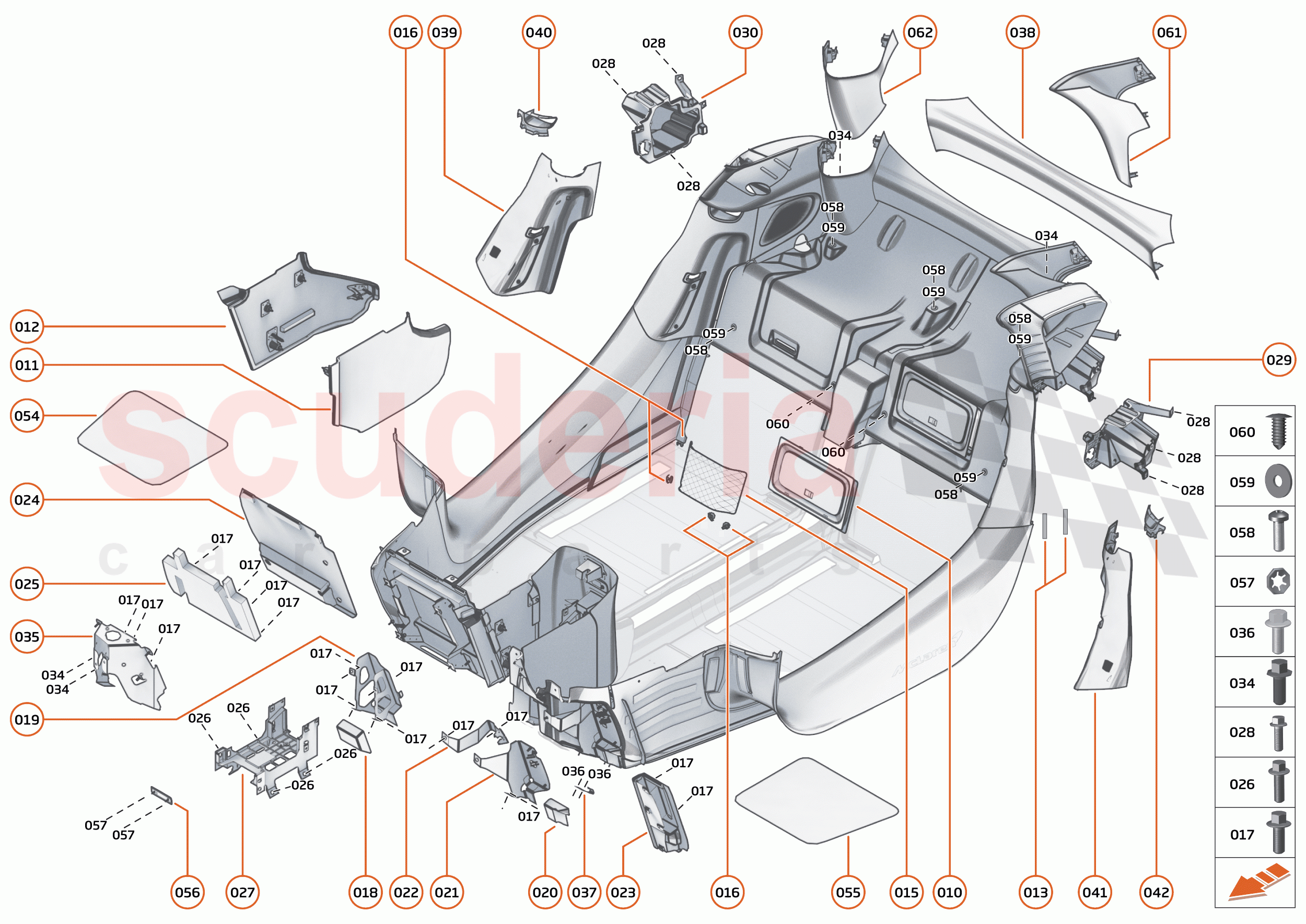

46 - INTERIOR SYSTEMS - 46.8 - LOWER & REAR TRIM of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11N0887CP
FUSEBOX ACCESS PANEL - INTERIOR 		$120.83 1
TO
011 31NA029CP
ASSY HVAC SHROUD LH-RHD 		$289.61 1
TO
011 31NA010CP
ASSY HVAC SHROUD LH-LHD 		$274.69 1
TO
012 31NA093CP
ASSY HVAC SHROUD RH-LHD - FED 		- 1
PE
 Enquire
012 31NA030CP
ASSY HVAC SHROUD RH-RHD 		$289.61 1
TO
012 31NA011CP
ASSY HVAC SHROUD RH-LHD 		$274.69 1
TO
013 11N2976CP
LABEL - CAUTION - DOOR RELEASE - LEATHER STRAP 		$30.44 2
TO
015 11N0308CP
Stowage Net 		- 1
PE
 Enquire
016 11N2282CP
Hook - Stowage Net 		- 4
PE
 Enquire
017 00RA064
BOLT - M5X12 - HEX 		- 4
PE
 Enquire
018 11N0642CP
FOAM-DRIVER FOOTRE24-RHD 		$121.84 1
TO
019 11N0984CP
FOOTREST - RHD - DRIVER 		$223.40 1
TO
020 11N0643CP
FOOTREST - FOAM - LHD - DRIVER 		- 1
PE
 Enquire
021 11N0975CP
FOOTREST - LHD - DRIVER 		- 1
PE
 Enquire
022 11N1412CP
BRKT FOOTREST SUPPORT DRIVER 		$182.79 1
TO
023 11N1491CP
Footrest - US - Driver 		- 1
PE
 Enquire
024 11N2648CP
Footrest - US - Passenger 		- 1
PE
 Enquire
024 11N2646CP
Footrest - LHD - Passenger 		- 1
PE
 Enquire
024 11N2647CP
Footrest - RHD - Passenger 		- 1
PE
 Enquire
024 11N3594CP
Footrest - Fire Extinguisher - Passenger 		- 1
PE
 Enquire
025 11N2597CP
NVH PAD - PASSENGER FOOTREST - US 		- 1
PE
 Enquire
025 11N2596CP
NVH PAD - PASS FOO24EST RHD 		$15.21 1
TO
025 11N2595CP
NVH PAD - PASSENGER FOOTREST - LHD 		- 1
PE
 Enquire
026 00RA372
BOLT - HEX HEAD - LOCK - M5X25 - 8.8 		- 4
PE
 Enquire
027 11N1114CP
BRACKET - SUPPORT - HVAC 		$101.53 1
TO
028 00RX003
BOLT - M6X1X12 - HEX 		- 3
PE
 Enquire
029 13NA300CP
BRACKET - SPEAKER - QUARTER PANEL - REAR - LH 		$104.11 1
TO
030 13NA301CP
BRACKET - SPEAKER - QUARTER PANEL - REAR - RH 		$104.11 1
TO
034 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
035 11N0687CP
FOOTREST - SUPPORT - LHD - PASSENGER 		- 1
PE
 Enquire
035 11N0893CP
FOOTREST - SUPPORT - US - PASSENGER 		- 1
PE
 Enquire
035 11N0688CP
FOOTREST - SUPPORT - RHD - PASSENGER 		$284.34 1
TO
036 00RA087
SCREW - M5X10 - HEX 		- 2
PE
 Enquire
037 11N1490CP
FOOTREST - ADAPTOR - US - DRIVER 		- 1
PE
 Enquire
038 13NA471MP
ASSY CAPPING PANEL RR-AIS 		- 1
PE
 Enquire
038 13N0168CP
CAPPING PANEL - REAR 		- 1
PE
 Enquire
039 13N0731CP
B PILLAR - TRIM - LOWER - RH 		- 1
PE
 Enquire
040 13N0254CP
ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - RH 		$82.92 1
TO
041 13N0732CP
B PILLAR - TRIM - LOWER - LH 		- 1
PE
 Enquire
042 13N0253CP
ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - LH 		$90.62 1
TO
054 11N3997RP
FOOTWELL PROTECTIVE TAPE - RHD - 675LT 		$132.00 1
TO
055 12N0875CP
PROTECTIVE TAPE - FOOTWELL - DRIVER 		$243.70 1
TO
056 31NA013CP
BRANDING PLATE 		$1,208.49 1
TO
057 00RC106
STARLOCK - DIAMETER 4.5MM SHAFT 		- 2
PE
 Enquire
058 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- -
PE
 Enquire
059 00RC064
WASHER - M6X18X1.6 - BLACK 		- -
PE
 Enquire
060 00RA413
Clip - Firtree 6.8x12x14 		- 2
PE
 Enquire
061 13NA633MP
ASSY DUCT COVER LH RR LWR-AIS 		$1,940.70 1
TO
062 13NA634MP
ASSY DUCT COVER RH RR LWR-AIS 		$2,071.69 1
TO
