44 - Infotainment - 44.1 - Iris System

McLaren 620R

Find Your Part

McLaren 620R - 44 - INFOTAINMENT - 44.1 - IRIS SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M1377CP WIRING HARNESS IRI24DISPLAY V6 $402.81 To Order
Photo Part No Description Price (each) Stock
00RA607 SCREW - TORX - PAN HEAD - M3X12 Enquire To Order
Photo Part No Description Price (each) Stock
13M1067CP VIDEO DATA LOGGER $8,459.46 To Order
Photo Part No Description Price (each) Stock
13M0837CP AUX USB MODULE - TRACK $704.93 To Order
13M0836CP AUX USB MODULE - PREMIUM $684.79 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
13M1266CP TRACK MICROPHONE $151.05 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
00RA138 SCREW-TORX HEAD-DIA4X14-TF Enquire To Order
00RA524 SCREW - TORX - 4X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RL022 EDGE CLIP - 202X4.6MM - INLINE Enquire To Order
Photo Part No Description Price (each) Stock
13M1426CP HEATSHIELD - TRACK CAMERA - REAR $30.20 To Order
Photo Part No Description Price (each) Stock
13M1511CP TAPE - DUPLOCOLL 2100FL $0.16 To Order
Photo Part No Description Price (each) Stock
12M0555CP CONNECTOR HOLDER - SINGLE $14.21 To Order
Photo Part No Description Price (each) Stock
31MA032CP RVC CAMERA BRACKET $132.00 To Order
13MA289RP REAR CAMERA $548.37 To Order
Photo Part No Description Price (each) Stock
13M1423CP HEATSHIELD - VEHICLE CAMERA - MAIN $50.34 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA587 Screw Torx - M6x18 Enquire To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13M1558CP TUNER AM-FM-DAB $2,034.27 To Order
13M1531CP TUNER - AM-FM-XM $1,933.58 To Order
Photo Part No Description Price (each) Stock
11M3069CP LINK HARNESS - HEADUNIT TO AM-FM TUNER $523.66 To Order
Photo Part No Description Price (each) Stock
11M3005CP BRACKET - HEAD UNIT - MOUNTING $322.24 To Order
Photo Part No Description Price (each) Stock
13MA211CP HEAD UNIT - AIS - HIGH-LINE $2,155.13 To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
11M0073CP VEHICLE CAMERA $604.24 To Order
Photo Part No Description Price (each) Stock
13M1424CP HEATSHILD - VEHICLE CAMERA - SUB $12.08 To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11M0778CP VEHICLE CAMERA - INTERNAL - REAR VIEW $1,523.29 To Order
Photo Part No Description Price (each) Stock
13M0841CP CLIP - SWITCHPACK - DOOR - USB INTERFACE Enquire To Order
13MA215CP ASSY - IRIS SCREEN WITH SWITCH PACK Enquire To Order
Photo Part No Description Price (each) Stock
13M1149CP 3M PT1100 TAPE 70MM X 20MM $270.12 To Order
Photo Part No Description Price (each) Stock
11A7405CP CLIP - HARNESS $20.29 To Order

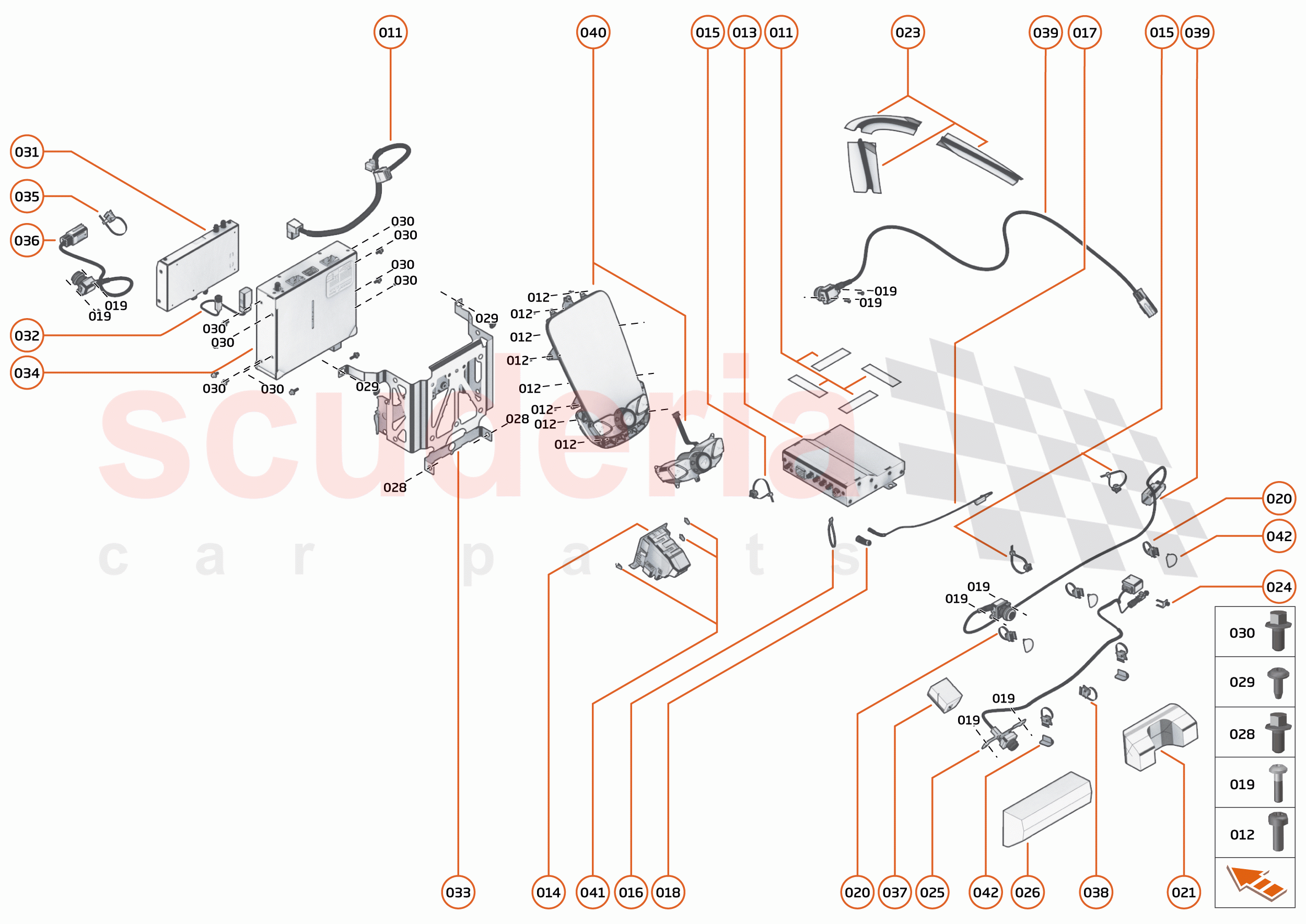

44 - INFOTAINMENT - 44.1 - IRIS SYSTEM of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M3388RP
USB - TRACK TELEMETRY SOFTWARE 		$70.46 1
TO
011 11M1377CP
WIRING HARNESS IRI24DISPLAY V6 		$402.81 1
TO
012 00RA607
SCREW - TORX - PAN HEAD - M3X12 		- 8
PE
 Enquire
013 13M1067CP
VIDEO DATA LOGGER 		$8,459.46 1
TO
014 13M0837CP
AUX USB MODULE - TRACK 		$704.93 1
TO
014 13M0836CP
AUX USB MODULE - PREMIUM 		$684.79 1
TO
015 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
016 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
017 13M1266CP
TRACK MICROPHONE 		$151.05 1
TO
018 00RL004
FELT TAPE
Color codes: TAPE-FELT; 		- 1
PE
 Enquire
019 00RA138
SCREW-TORX HEAD-DIA4X14-TF 		- 2
PE
 Enquire
019 00RA524
SCREW - TORX - 4X10 		- 2
PE
 Enquire
020 00RL022
EDGE CLIP - 202X4.6MM - INLINE 		- 3
PE
 Enquire
021 13M1426CP
HEATSHIELD - TRACK CAMERA - REAR 		$30.20 1
TO
023 13M1511CP
TAPE - DUPLOCOLL 2100FL 		$0.16 1
TO
024 12M0555CP
CONNECTOR HOLDER - SINGLE 		$14.21 1
TO
025 31MA032CP
RVC CAMERA BRACKET 		$132.00 1
TO
025 13MA289RP
REAR CAMERA 		$548.37 1
TO
026 13M1423CP
HEATSHIELD - VEHICLE CAMERA - MAIN 		$50.34 1
TO
028 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
029 00RA587
Screw Torx - M6x18 		- 2
PE
 Enquire
030 00RA165
BOLT - M5X8 - HEX 		- 8
PE
 Enquire
031 13M1558CP
TUNER AM-FM-DAB 		$2,034.27 1
TO
031 13M1531CP
TUNER - AM-FM-XM 		$1,933.58 1
TO
032 11M3069CP
LINK HARNESS - HEADUNIT TO AM-FM TUNER 		$523.66 1
TO
033 11M3005CP
BRACKET - HEAD UNIT - MOUNTING 		$322.24 1
TO
034 13MA211CP
HEAD UNIT - AIS - HIGH-LINE 		$2,155.13 1
TO
035 00RL011
EDGE CLIP - 202X4.6MM 		- 1
PE
 Enquire
036 11M0073CP
VEHICLE CAMERA 		$604.24 1
TO
037 13M1424CP
HEATSHILD - VEHICLE CAMERA - SUB 		$12.08 1
TO
038 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 1
PE
 Enquire
039 11M0778CP
VEHICLE CAMERA - INTERNAL - REAR VIEW 		$1,523.29 1
TO
040 13M0841CP
CLIP - SWITCHPACK - DOOR - USB INTERFACE 		- 1
PE
 Enquire
040 13MA215CP
ASSY - IRIS SCREEN WITH SWITCH PACK 		- 1
PE
 Enquire
041 13M1149CP
3M PT1100 TAPE 70MM X 20MM 		$270.12 4
TO
042 11A7405CP
CLIP - HARNESS 		$20.29 -
TO
