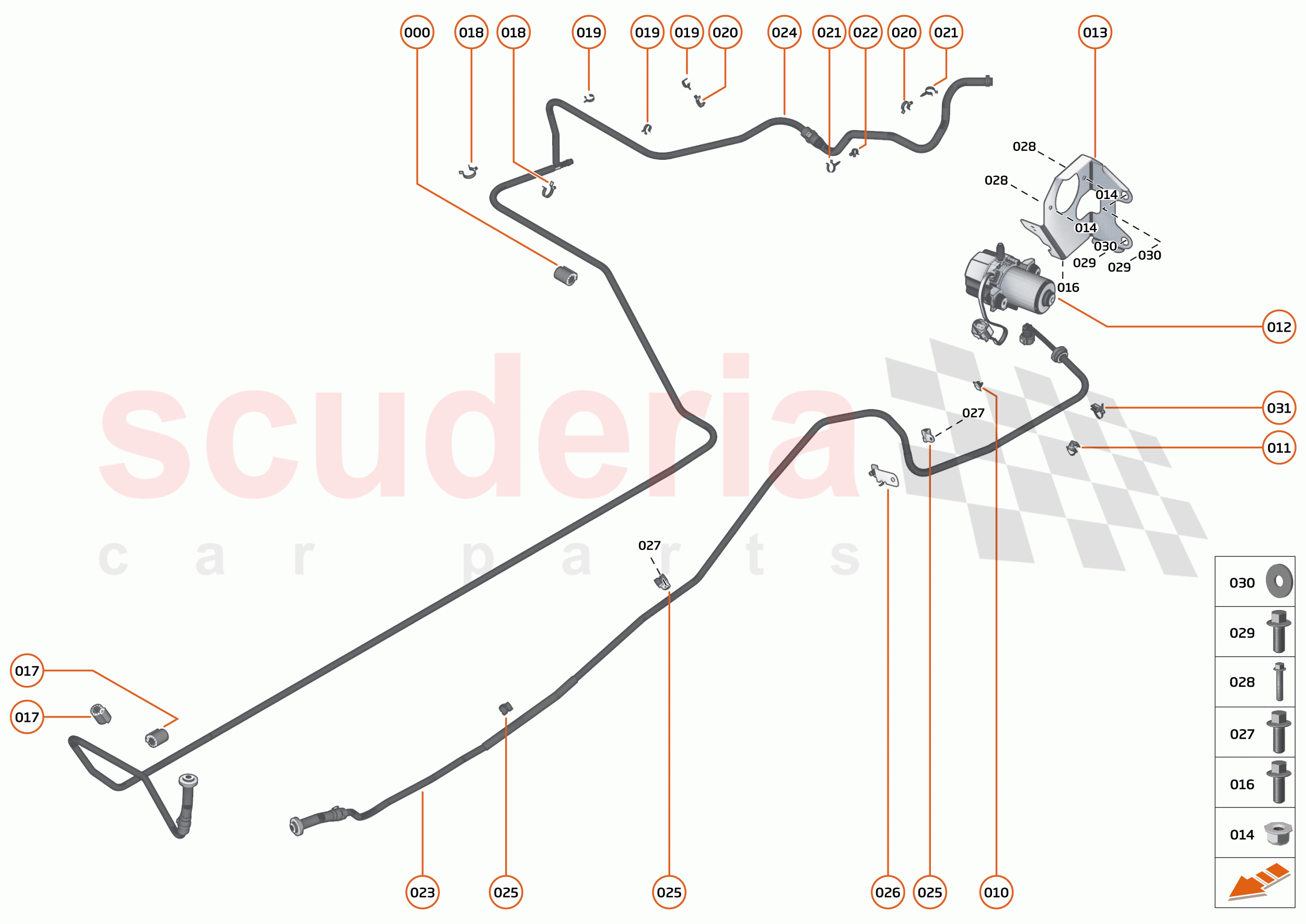

23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM of McLaren McLaren 620R

McLaren 620R - 23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RB059	CLIP CONNECTOR - TRW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15CA134CP	EVAC PUMP	$584.08	To Order

Photo	Part No	Description	Price (each)	Stock
	31CA013CP	BRKT-EVAC PUMP	$80.59	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX001	BOLT - M5X16 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA366	PIPE PROTECTOR - 13MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB018	CLIP - 11-13MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB046	CLIP - 8-9MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13CA165RP	VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD	$182.12	To Order
	13CA163RP	VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31CA018CP	HOSE-VACUUM-PUMP	$162.46	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB127	P-CLIP - 12/13 - EPDM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13CA206RP	BRACKET - VAC HOSE TO - CROSS BRACE	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA631	BLT-HX-FL-PPT-M6X1X45-8.8-72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA557	BOLT - HEX HEAD - M8X1.25X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC015	WASHER - M8X24X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB259	CAB TIE-EDGE-SIDE-1-3X45-NYL-BLK	Enquire	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	00RB059	CLIP CONNECTOR - TRW	00RB059 CLIP CONNECTOR - TRW	-	1	PE	Enquire
011	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL	-	1	PE	Enquire
012	15CA134CP	EVAC PUMP	15CA134CP EVAC PUMP EVAC PUMP;	$584.08	1	TO
013	31CA013CP	BRKT-EVAC PUMP	31CA013CP BRKT-EVAC PUMP	$80.59	1	TO
014	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	2	PE	Enquire
016	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX	-	2	PE	Enquire
017	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID	-	3	PE	Enquire
018	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE	-	2	PE	Enquire
019	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE	-	2	PE	Enquire
020	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	1	PE	Enquire
021	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE	-	2	PE	Enquire
022	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE	-	1	PE	Enquire
023	13CA165RP	VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD	13CA165RP VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD	$182.12	1	TO
023	13CA163RP	VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD	13CA163RP VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD	-	1	PE	Enquire
024	31CA018CP	HOSE-VACUUM-PUMP	31CA018CP HOSE-VACUUM-PUMP	$162.46	1	TO
025	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM	-	4	PE	Enquire
026	13CA206RP	BRACKET - VAC HOSE TO - CROSS BRACE	13CA206RP BRACKET - VAC HOSE TO - CROSS BRACE	$38.14	1	TO
027	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	-	PE	Enquire
028	00RA631	BLT-HX-FL-PPT-M6X1X45-8.8-72	00RA631 BLT-HX-FL-PPT-M6X1X45-8.8-72	-	2	PE	Enquire
029	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25	-	2	PE	Enquire
030	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2	-	2	PE	Enquire
031	00RB259	CAB TIE-EDGE-SIDE-1-3X45-NYL-BLK	00RB259 CAB TIE-EDGE-SIDE-1-3X45-NYL-BLK	-	1	PE	Enquire
