16 - Suspension - Front - 16.3 - Transverse Links Front

McLaren 620R

Find Your Part

McLaren 620R - 16 - SUSPENSION - FRONT - 16.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13BA201RP BRACKET - DISPLACEMENT SENSOR - FRONT - LH $30.44 To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $121.84 To Order
Photo Part No Description Price (each) Stock
13BA203RP BRACKET - DISPLACEMENT SENSOR - FRONT - RH $25.37 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.71 To Order
Photo Part No Description Price (each) Stock
13BA205RP WISHBONE - LOWER - FRONT - LH $1,409.89 To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $50.76 To Order
Photo Part No Description Price (each) Stock
13BA208RP WISHBONE - LOWER - FRONT - RH $1,107.77 To Order
Photo Part No Description Price (each) Stock
13BA490RP WISHBONE SPACER $35.54 To Order
Photo Part No Description Price (each) Stock
00RX053 BOLT - WISHBONE - M10X1.5X35 Enquire To Order
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $35.54 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $12.17 To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order

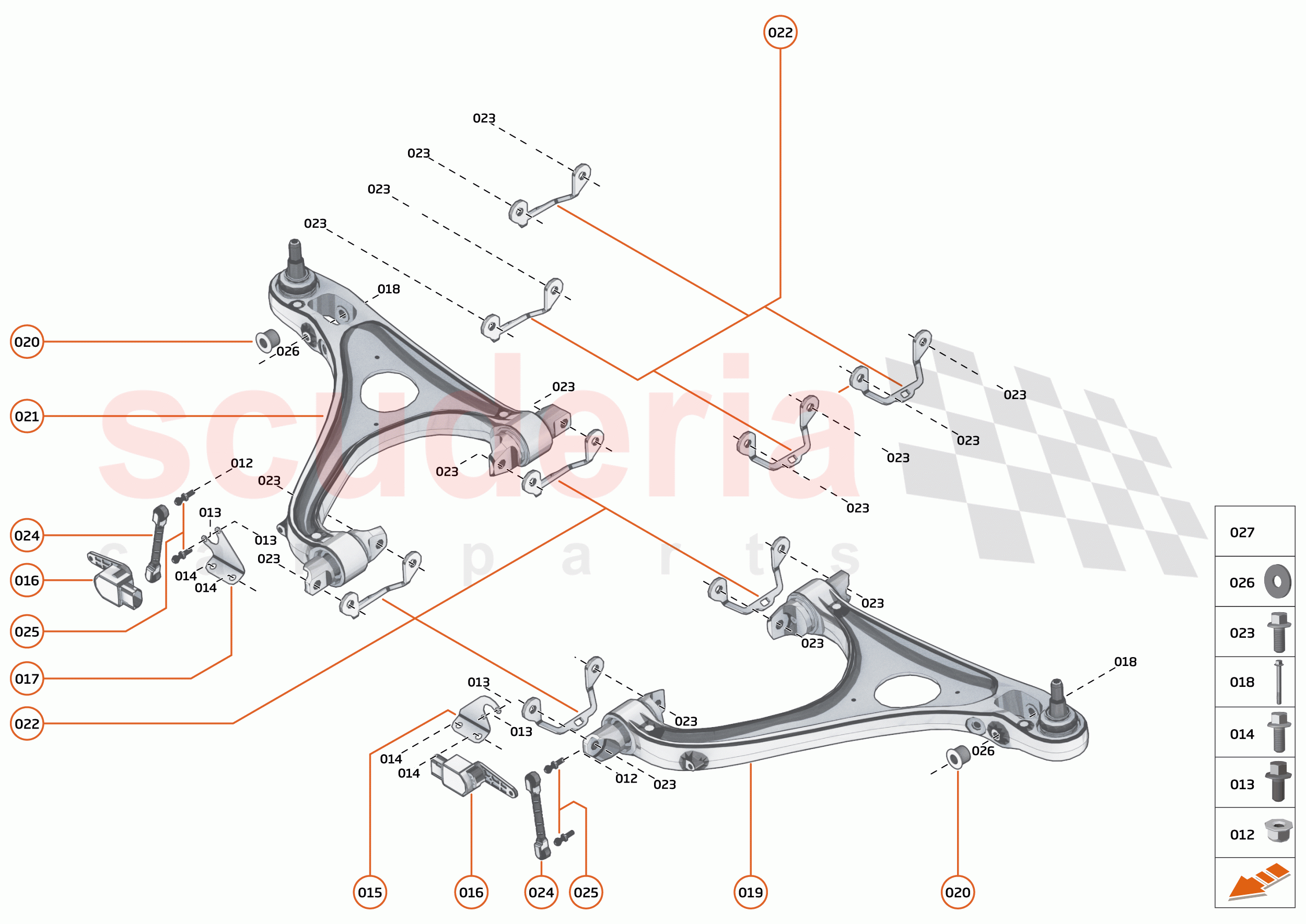

16 - SUSPENSION - FRONT - 16.3 - TRANSVERSE LINKS FRONT of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 1
PE
 Enquire
000 00RX003
BOLT - M6X1X12 - HEX 		- 1
PE
 Enquire
012 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
013 00RA087
SCREW - M5X10 - HEX 		- 2
PE
 Enquire
014 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2
PE
 Enquire
015 13BA201RP
BRACKET - DISPLACEMENT SENSOR - FRONT - LH 		$30.44 1
TO
016 13B0681CP
SENSOR - DISPLACEMENT 		$121.84 1
TO
017 13BA203RP
BRACKET - DISPLACEMENT SENSOR - FRONT - RH 		$25.37 1
TO
018 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.71 1
TO
019 13BA205RP
WISHBONE - LOWER - FRONT - LH 		$1,409.89 1
TO
020 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$50.76 1
TO
021 13BA208RP
WISHBONE - LOWER - FRONT - RH 		$1,107.77 1
TO
022 13BA490RP
WISHBONE SPACER 		$35.54 2
TO
023 00RX053
BOLT - WISHBONE - M10X1.5X35 		- 4
PE
 Enquire
023 00RA457
SCREW - M10X30-10.9 - HEX 		- 4
PE
 Enquire
024 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$35.54 1
TO
025 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$12.17 2
TO
026 00RC065
WASHER - M10X21X2.0 		- 4
PE
 Enquire
