16 - Suspension - Front - 16.2 - Uprights Front

McLaren 620R

Find Your Part

McLaren 620R - 16 - SUSPENSION - FRONT - 16.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $13.18 To Order
Photo Part No Description Price (each) Stock
13BA459RP PROTECTOR CAP - HUB $16.22 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $45.68 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $65.98 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.61 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $3.03 To Order
Photo Part No Description Price (each) Stock
13B0750CP TOPHAT - TRACKROD - 1.6 TAPER $30.44 To Order
Photo Part No Description Price (each) Stock
00RA759 BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER $17.10 To Order
Photo Part No Description Price (each) Stock
11B0993CP SCREW - M3X12 - HEX $2.17 To Order
Photo Part No Description Price (each) Stock
31BA002CP ASSY UPRIGHT FR-LH $5,991.68 To Order
Photo Part No Description Price (each) Stock
15BA254CP HUB WHEEL BEARING - CENTRE LOCK - FR - LH $2,316.27 To Order
Photo Part No Description Price (each) Stock
31BA004CP ASSY UPRIGHT FR-RH $5,991.68 To Order
Photo Part No Description Price (each) Stock
15BA255CP HUB WHEEL BEARING - CENTRE LOCK - FR - RH $2,316.27 To Order

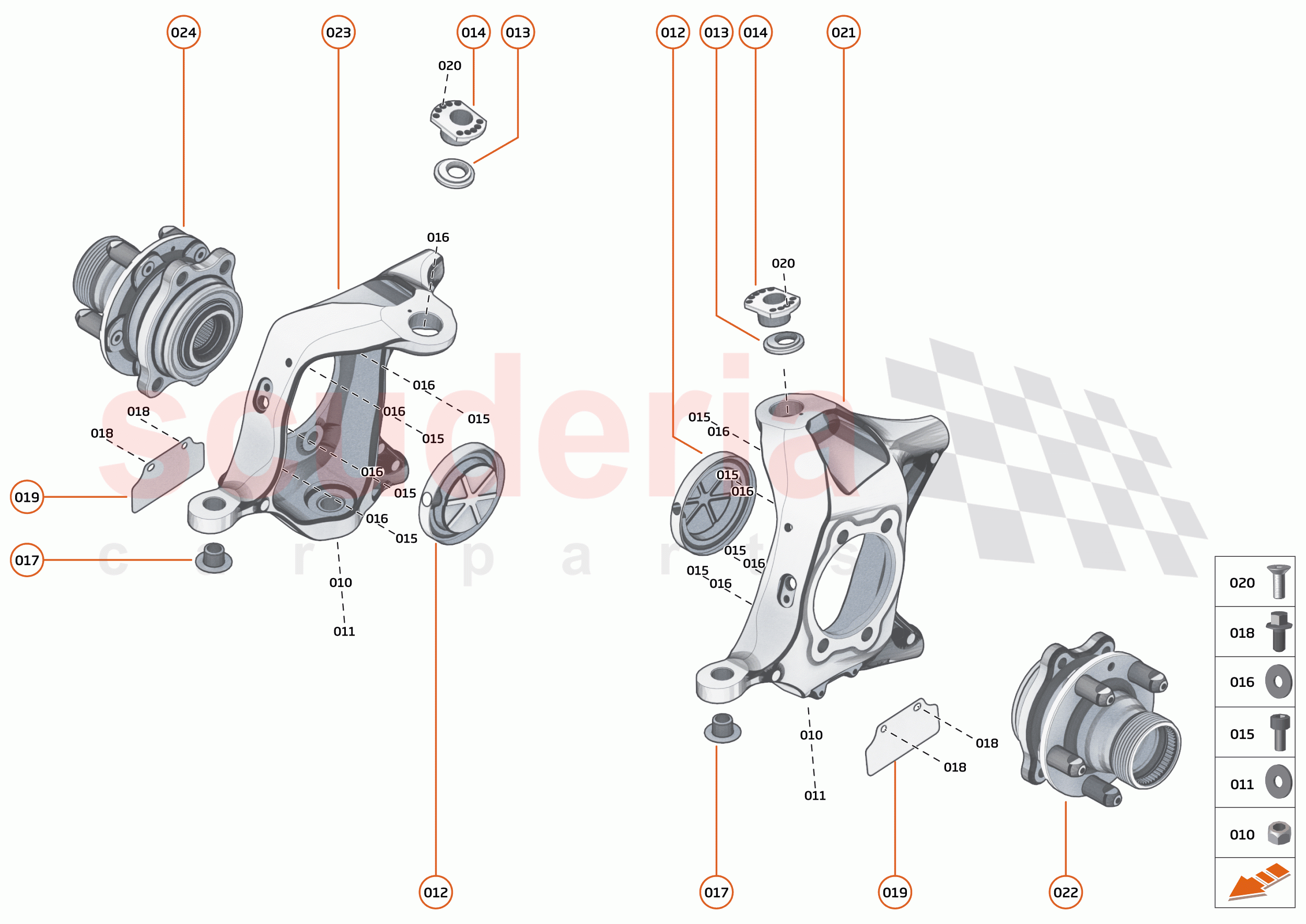

16 - SUSPENSION - FRONT - 16.2 - UPRIGHTS FRONT of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA229
NUT - M14X1.5 - LOCKED HEX 		- -
PE
 Enquire
011 11B0320CP
WASHER - DIA 35X3.9X14.5 		$13.18 -
TO
012 13BA459RP
PROTECTOR CAP - HUB 		$16.22 -
TO
013 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$45.68 -
TO
014 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$65.98 1
TO
015 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.61 -
TO
016 14B0714CP
WASHER - M12X23 		$3.03 -
TO
017 13B0750CP
TOPHAT - TRACKROD - 1.6 TAPER 		$30.44 1
TO
018 00RA759
BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX 		- -
PE
 Enquire
019 14B0431CP
HEATSHIELD - SUSPENSION UPRIGHT - LOWER 		$17.10 -
TO
020 11B0993CP
SCREW - M3X12 - HEX 		$2.17 -
TO
021 31BA002CP
ASSY UPRIGHT FR-LH 		$5,991.68 1
TO
022 15BA254CP
HUB WHEEL BEARING - CENTRE LOCK - FR - LH 		$2,316.27 1
TO
023 31BA004CP
ASSY UPRIGHT FR-RH 		$5,991.68 1
TO
024 15BA255CP
HUB WHEEL BEARING - CENTRE LOCK - FR - RH 		$2,316.27 1
TO
