McLaren 620R

Find Your Part

McLaren 620R - 16 - SUSPENSION - FRONT - 16.1 - DAMPER & ACTUATOR ASSEMBLIES FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
31BA032CP ASSY-ACTUATOR-FR-LH $3,554.40 To Order
13BA445RP SUSPENSION UNIT - NOSE LIFT - FRONT - LH $3,554.39 To Order
Photo Part No Description Price (each) Stock
31BA037CP ASSY ACTUATOR FR RH $3,554.40 To Order
13BA446RP SUSPENSION UNIT - NOSE LIFT - FRONT - RH $3,554.39 To Order
Photo Part No Description Price (each) Stock
31BA073CP BRACKET - DAMPER MOUNT $487.43 To Order
Photo Part No Description Price (each) Stock
13RA022RP M10 WASHER - 2 X 20MM $0.36 To Order
Photo Part No Description Price (each) Stock
13RA037RP BOLT M10X61 - 44MM SHANK $25.37 To Order
Photo Part No Description Price (each) Stock
13RA038RP M10 K-NUT $8.71 To Order

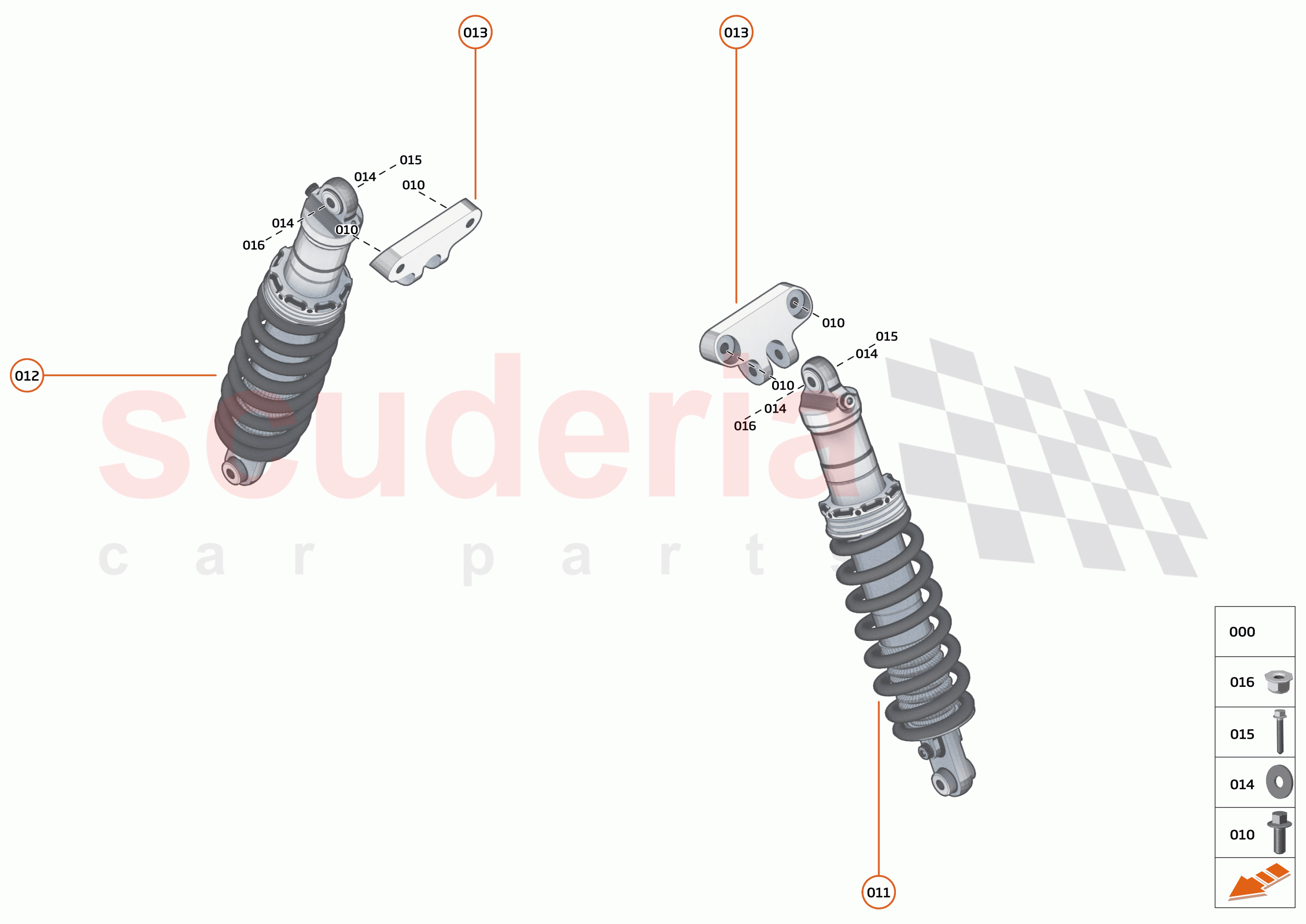

16 - SUSPENSION - FRONT - 16.1 - DAMPER & ACTUATOR ASSEMBLIES FRONT of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2
PE
 Enquire
011 31BA032CP
ASSY-ACTUATOR-FR-LH 		$3,554.40 1
TO
011 13BA445RP
SUSPENSION UNIT - NOSE LIFT - FRONT - LH 		$3,554.39 1
TO
012 31BA037CP
ASSY ACTUATOR FR RH 		$3,554.40 1
TO
012 13BA446RP
SUSPENSION UNIT - NOSE LIFT - FRONT - RH 		$3,554.39 1
TO
013 31BA073CP
BRACKET - DAMPER MOUNT 		$487.43 1
TO
014 13RA022RP
M10 WASHER - 2 X 20MM 		$0.36 -
TO
015 13RA037RP
BOLT M10X61 - 44MM SHANK 		$25.37 -
TO
016 13RA038RP
M10 K-NUT
M10 K-NUT; 		$8.71 -
TO
017 11B0814CP
Harness - Tenneco - Damper 		$85.58 -
TO
