5 - Panels - 5.5 - Upper Structure

McLaren 620R

Find Your Part

McLaren 620R - 5 - PANELS - 5.5 - UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA577 NUT-HX-FL-M6X1-8-ZFB Enquire To Order
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA242 STUD M8X1.25X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
00RA289 BOLT - BUTTON - FLANGE - M8X35 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A0541CP COVER - B POST - LATCH - LH $60.90 To Order
Photo Part No Description Price (each) Stock
11A0540CP COVER - B POST - LATCH - RH $60.90 To Order
Photo Part No Description Price (each) Stock
13A3152CP AIR EVACUATION VENT - LH $53.19 To Order
Photo Part No Description Price (each) Stock
13A3154CP AIR EVACUATION VENT - RH $53.19 To Order
Photo Part No Description Price (each) Stock
13AA986MP ASSY AIS MODULAR ROOF VCF Enquire To Order
13AA906MP ASSY MODULAR ROOF PNL VCF Enquire To Order
13AA951CP ASSY PNL ROOF OTR $913.96 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE Enquire To Order

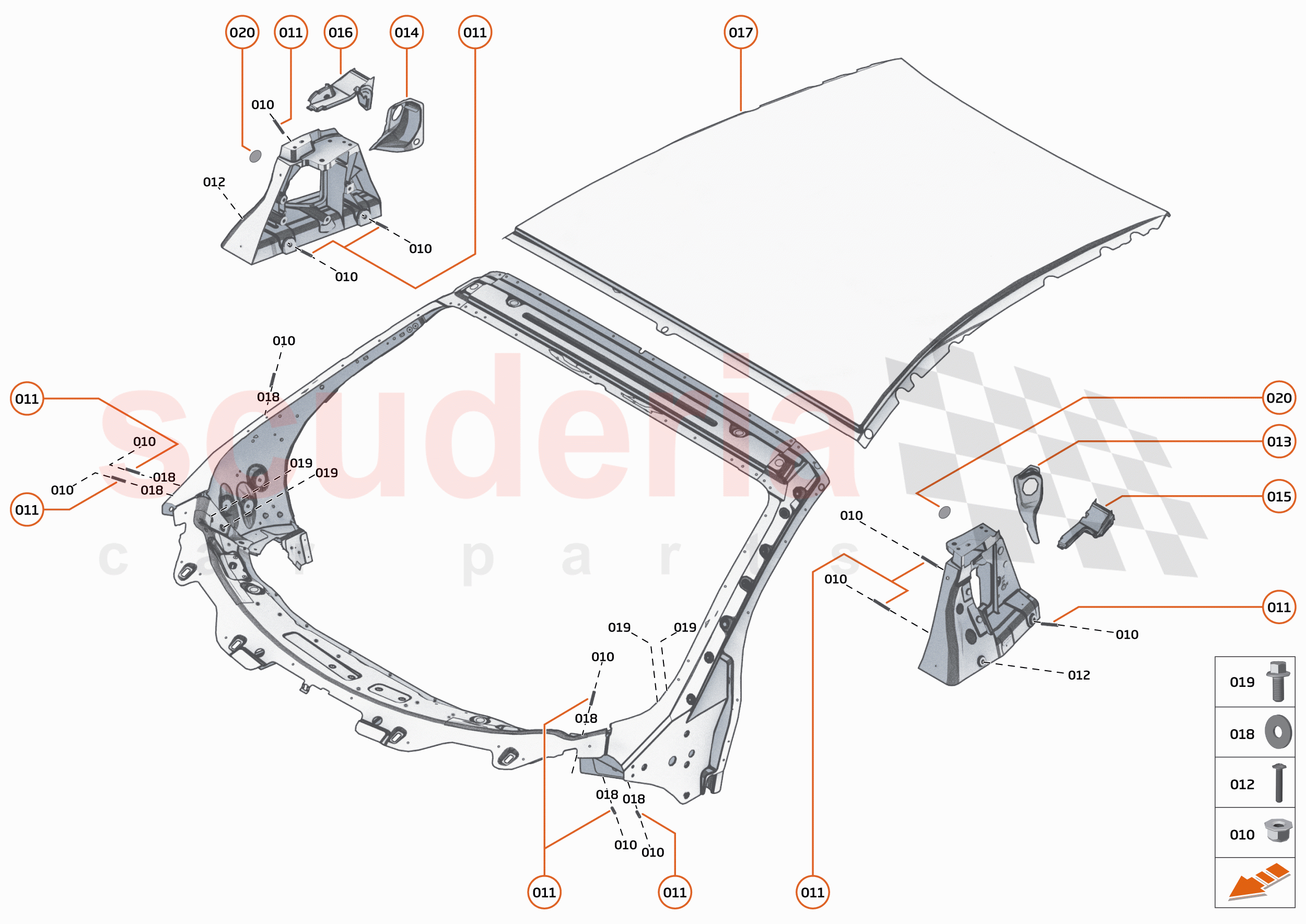

5 - PANELS - 5.5 - UPPER STRUCTURE of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA577
NUT-HX-FL-M6X1-8-ZFB 		- 8
PE
 Enquire
010 00RA056
NUT - M8-8 - LOCK HEX 		- 3
PE
 Enquire
011 00RA242
STUD M8X1.25X35 		- 3
PE
 Enquire
012 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 8
PE
 Enquire
012 00RA289
BOLT - BUTTON - FLANGE - M8X35 - 10.9 		- 1
PE
 Enquire
013 11A0541CP
COVER - B POST - LATCH - LH 		$60.90 1
TO
014 11A0540CP
COVER - B POST - LATCH - RH 		$60.90 1
TO
015 13A3152CP
AIR EVACUATION VENT - LH 		$53.19 1
TO
016 13A3154CP
AIR EVACUATION VENT - RH 		$53.19 1
TO
017 13AA986MP
ASSY AIS MODULAR ROOF VCF 		- 1
PE
 Enquire
017 13AA906MP
ASSY MODULAR ROOF PNL VCF 		- 1
PE
 Enquire
017 13AA951CP
ASSY PNL ROOF OTR 		$913.96 1
TO
017 13A6360CP
ROOF PANEL - CARBON 		$8,144.63 1
TO
018 00RC053
WASHER - M6X2.0MM 		- 8
PE
 Enquire
018 00RC015
WASHER - M8X24X2 		- 2
PE
 Enquire
019 00RA002
BOLT - M8X20 - HEX 		- 4
PE
 Enquire
020 11A7484CP
CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE 		- 1
PE
 Enquire
