5 - Panels - 5.3 - Bodyside Assembled

McLaren 620R

Find Your Part

McLaren 620R - 5 - PANELS - 5.3 - BODYSIDE ASSEMBLED

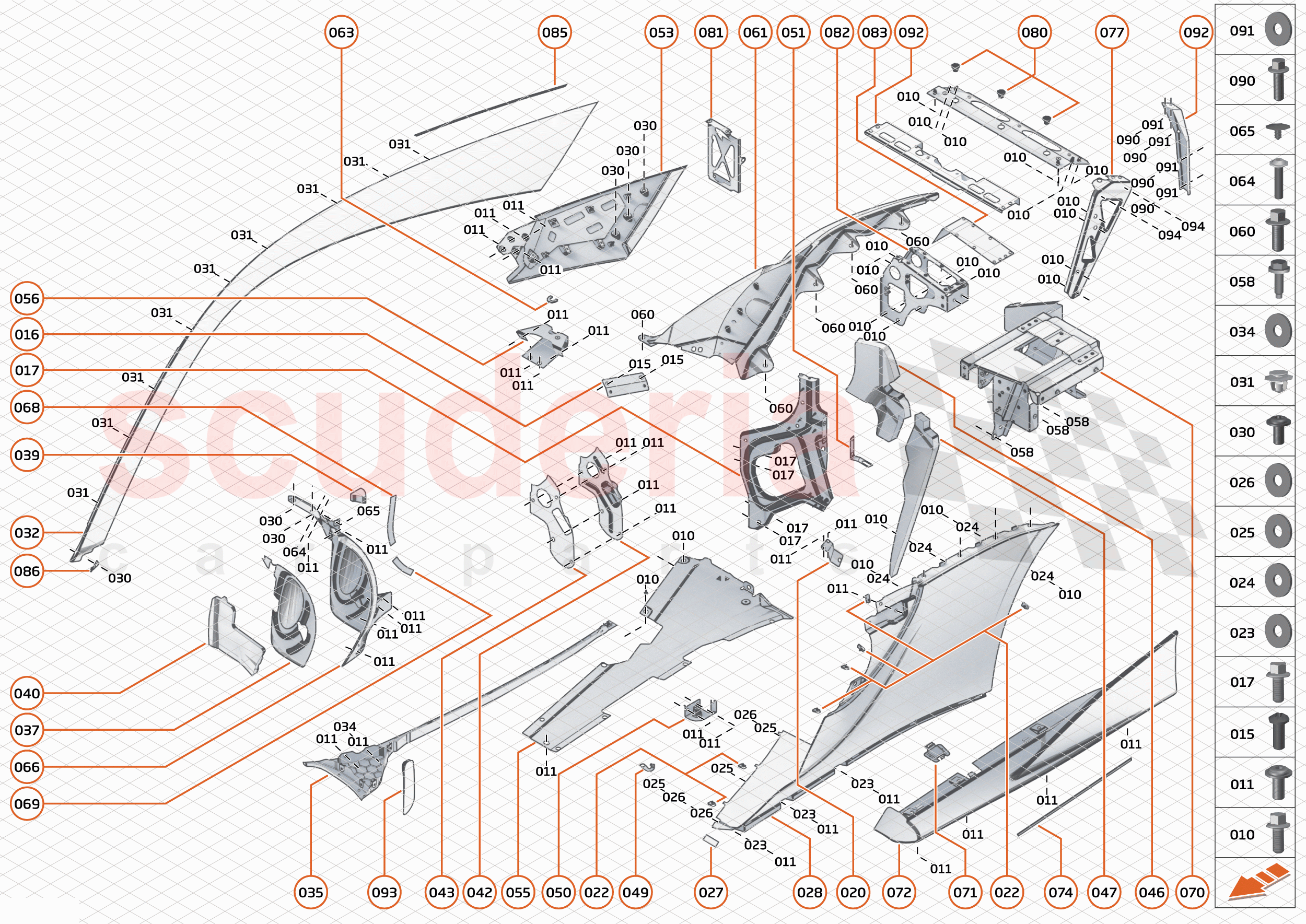

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA694 BLT-HX HD-FL-M6X1X40-8.8-78 Enquire To Order
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A4144CP BRACKET - CANTRAIL FINISHER $18.26 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A4894CP BRACKET - FENDER SUPPORT - RH $45.68 To Order
13A4893CP BRACKET - FENDER SUPPORT - LH $45.68 To Order
Photo Part No Description Price (each) Stock
00RA329 CLIP - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC113 SPACER - NYLON - 6.6X17.45X1.05 Enquire To Order
Photo Part No Description Price (each) Stock
00RC114 SPACER - NYLON - 6.6X17.45X0.54 Enquire To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
13AA971CP PNL BODYSIDE RR LWR RH $825.77 To Order
13AA970CP PNL BODYSIDE RR LWR LH $832.73 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB185 CLIP - CANTRAIL CAPPING PANEL Enquire To Order
Photo Part No Description Price (each) Stock
13AA693MP ASSY CAPPING CANTRAIL CARBON - RH Enquire To Order
13AA686MP ASSY CAPPING CANTRAIL CARBON - LH Enquire To Order
13A4662CP CAPPING PANEL - CANTRAIL - RH $684.79 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
13A3856CP FLOOR TRIM - RH $241.69 To Order
13A3855CP ASSY MLDG FLOOR FINISHER LH $241.69 To Order
Photo Part No Description Price (each) Stock
13A5500CP NVH PAD - WHEEL ARCH LINER COVER PANEL - RH $40.26 To Order
13A5498CP NVH PAD - WHEEL ARCH LINER COVER PANEL - LH $40.26 To Order
Photo Part No Description Price (each) Stock
13A5541CP NVH FRONT SUPPORT - A POST - LOWER $3.24 To Order
Photo Part No Description Price (each) Stock
13A5545CP NVH FRONT SUPPORT - FLOOR FINISHER - RH $25.15 To Order
13A5544CP NVH FRONT SUPPORT - FLOOR FINISHER - LH $20.89 To Order
Photo Part No Description Price (each) Stock
13A5575CP SERVICE PANEL - DOOR LATCH - RH $50.76 To Order
13A5572CP SERVICE PANEL - DOOR LATCH - LH $50.76 To Order
Photo Part No Description Price (each) Stock
13A5576CP GASKET - SERVICE PANEL - DOOR LATCH - RH $20.29 To Order
13A5573CP GASKET - SERVICE PANEL - DOOR LATCH - LH $20.29 To Order
Photo Part No Description Price (each) Stock
13A5583CP NVH REAR SUPPORT - BODYSIDE - UPPER - RH $45.30 To Order
13A5582CP NVH REAR SUPPORT - BODYSIDE - UPPER - LH $84.94 To Order
Photo Part No Description Price (each) Stock
13A5533CP NVH REAR SUPPORT - BODYSIDE - LOWER $18.11 To Order
Photo Part No Description Price (each) Stock
13AA681CP LEVER - EXTERNAL KEY BARREL $25.68 To Order
Photo Part No Description Price (each) Stock
13A6053CP BRACKET - KEY BARREL - EXTERNAL $19.27 To Order
Photo Part No Description Price (each) Stock
13A6353CP BRACKET - FENDER ADJUSTMENT - REAR - RH $25.37 To Order
13A6352CP BRACKET - FENDER ADJUSTMENT - REAR - LH $25.37 To Order
Photo Part No Description Price (each) Stock
13AA869CP BODYSIDE EXTENSION - REAR - LOWER - LH $152.32 To Order
Photo Part No Description Price (each) Stock
13A6675CP BRACKET - BULKHEAD TO DECK - RH $30.44 To Order
13A6672CP BRACKET - BULKHEAD TO DECK - LH $35.54 To Order
Photo Part No Description Price (each) Stock
00RA429 SCREW - WASHER - M8X24 - BUTTON-HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
31AA097CP ASSY PNL BDY SD TO DECK MACH - RH $513.92 To Order
31AA096CP ASSY PNL BDY SD TO DECK MACH - LH $513.92 To Order
13A6754CP PANEL - BODYSIDE TO REAR DECK - RH $342.38 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A3489CP GROMMET - BULKHEAD TO DECK BRACKET $2.42 To Order
Photo Part No Description Price (each) Stock
00RA305 SCREW - M6X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RG032 Fir Tree Clip - Anixter - 066 6053 Enquire To Order
Photo Part No Description Price (each) Stock
13A5733CP PANEL - WHEEL ARCH COVER - RH $281.95 To Order
13A5731CP PANEL - WHEEL ARCH COVER - LH $281.95 To Order
13A5720CP PANEL - WHEEL ARCH COVER - RH - CARBON $2,538.83 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A6133CP NVH - WHEEL ARCH COVER PANEL TO DOP - UPPER $9.66 To Order
Photo Part No Description Price (each) Stock
13A6134CP NVH - WHEEL ARCH COVER PANEL TO DOP - LOWER $6.23 To Order
Photo Part No Description Price (each) Stock
13AA890CP OUTRIGGER - REAR - LH $446.82 To Order
13AA889CP OUTRIGGER - REAR - RH $446.82 To Order
Photo Part No Description Price (each) Stock
13AA632CP COVER - EMERGENCY KEY BARREL $40.26 To Order
Photo Part No Description Price (each) Stock
13A6317CP SKIRT - BODY - 570S - 570GT - CARBON-RH $2,599.77 To Order
13A6315CP SKIRT - BODY - 570S - 570GT - CARBON-LH $2,599.77 To Order
13AA597CP SKIRT - BODY - 570S - 570GT - RH $690.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13AA851CP BRKT - CROSS BRACE - REAR - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA542 CLIP - SNAPLOC - 16X8 Enquire To Order
Photo Part No Description Price (each) Stock
13A5615CP CROSS BRACE - CENTRE - UPRIGHT $40.60 To Order
Photo Part No Description Price (each) Stock
13AA020CP BRACKET - CENTRE - CROSS BRACE $101.53 To Order
Photo Part No Description Price (each) Stock
13A5365CP SEAL - CANTRAIL CAPPING PANEL - RH $8.91 To Order
13A5362CP SEAL - CANTRAIL CAPPING PANEL - LH $8.91 To Order
Photo Part No Description Price (each) Stock
13A4066CP BRACKET - CANTRAIL TO DOOR HINGE - RH $25.37 To Order
13A4063CP BRACKET - CANTRAIL TO DOOR HINGE - LH $25.37 To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
13A6307CP COMPLETE - CROSS BRACE - CENTRE $241.69 To Order
Photo Part No Description Price (each) Stock
13AA969MP ASSY AIS INTAKE INFILL PANEL RH $172.62 To Order
13AA968MP ASSY AIS INTAKE INFILL PANEL LH $172.62 To Order
5 - PANELS - 5.3 - BODYSIDE ASSEMBLED of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA694
BLT-HX HD-FL-M6X1X40-8.8-78 		- 10
PE
 Enquire
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
011 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 1
PE
 Enquire
012 13AA868CP
BODYSIDE EXTENSION - REAR - LOWER - RH 		$152.32 1
TO
014 00RX003
BOLT - M6X1X12 - HEX 		- 4
PE
 Enquire
015 00RA019
SCREW - M6X12-10.9 - HEX 		- 2
PE
 Enquire
016 13A4144CP
BRACKET - CANTRAIL FINISHER 		$18.26 1
TO
017 00RA083
SCREW - M6X20 - FLANGE HEX 		- 3
PE
 Enquire
018 13AA892CP
SUPPORT BRACKET - FENDER - REAR - RH 		$142.16 1
TO
018 13AA891CP
SUPPORT BRACKET - FENDER - REAR - LH 		$152.32 1
TO
020 13A4894CP
BRACKET - FENDER SUPPORT - RH 		$45.68 1
TO
020 13A4893CP
BRACKET - FENDER SUPPORT - LH 		$45.68 1
TO
022 00RA329
CLIP - M6
CLIP - M6; 		- 7
PE
 Enquire
023 00RC053
WASHER - M6X2.0MM 		- 3
PE
 Enquire
024 00RC064
WASHER - M6X18X1.6 - BLACK 		- 4
PE
 Enquire
025 00RC113
SPACER - NYLON - 6.6X17.45X1.05 		- 3
PE
 Enquire
026 00RC114
SPACER - NYLON - 6.6X17.45X0.54 		- 3
PE
 Enquire
027 00RL004
FELT TAPE
Color codes: TAPE-FELT; 		- 1
PE
 Enquire
028 13AA971CP
PNL BODYSIDE RR LWR RH 		$825.77 1
TO
028 13AA970CP
PNL BODYSIDE RR LWR LH 		$832.73 1
TO
030 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 1
PE
 Enquire
031 00RB185
CLIP - CANTRAIL CAPPING PANEL 		- 7
PE
 Enquire
032 13AA693MP
ASSY CAPPING CANTRAIL CARBON - RH 		- 1
PE
 Enquire
032 13AA686MP
ASSY CAPPING CANTRAIL CARBON - LH 		- 1
PE
 Enquire
032 13A4662CP
CAPPING PANEL - CANTRAIL - RH 		$684.79 1
TO
032 13A4665CP
CAPPING PANEL - CANTRAIL - LH 		$684.79 1
TO
034 00RC043
WASHER - M6XOD25 		- 6
PE
 Enquire
035 13A3856CP
FLOOR TRIM - RH 		$241.69 1
TO
035 13A3855CP
ASSY MLDG FLOOR FINISHER LH 		$241.69 1
TO
037 13A5500CP
NVH PAD - WHEEL ARCH LINER COVER PANEL - RH 		$40.26 1
TO
037 13A5498CP
NVH PAD - WHEEL ARCH LINER COVER PANEL - LH 		$40.26 1
TO
039 13A5541CP
NVH FRONT SUPPORT - A POST - LOWER 		$3.24 1
TO
040 13A5545CP
NVH FRONT SUPPORT - FLOOR FINISHER - RH 		$25.15 1
TO
040 13A5544CP
NVH FRONT SUPPORT - FLOOR FINISHER - LH 		$20.89 1
TO
042 13A5575CP
SERVICE PANEL - DOOR LATCH - RH 		$50.76 1
TO
042 13A5572CP
SERVICE PANEL - DOOR LATCH - LH 		$50.76 1
TO
043 13A5576CP
GASKET - SERVICE PANEL - DOOR LATCH - RH 		$20.29 1
TO
043 13A5573CP
GASKET - SERVICE PANEL - DOOR LATCH - LH 		$20.29 1
TO
046 13A5583CP
NVH REAR SUPPORT - BODYSIDE - UPPER - RH 		$45.30 1
TO
046 13A5582CP
NVH REAR SUPPORT - BODYSIDE - UPPER - LH 		$84.94 1
TO
047 13A5533CP
NVH REAR SUPPORT - BODYSIDE - LOWER 		$18.11 1
TO
049 13AA681CP
LEVER - EXTERNAL KEY BARREL 		$25.68 1
TO
050 13A6053CP
BRACKET - KEY BARREL - EXTERNAL 		$19.27 1
TO
051 13A6353CP
BRACKET - FENDER ADJUSTMENT - REAR - RH 		$25.37 1
TO
051 13A6352CP
BRACKET - FENDER ADJUSTMENT - REAR - LH 		$25.37 1
TO
053 13A6459CP
PANEL - INNER - D POST - RH 		$221.54 1
TO
053 13A6456CP
PANEL - INNER - D POST - LH 		$221.54 1
TO
055 13AA869CP
BODYSIDE EXTENSION - REAR - LOWER - LH 		$152.32 1
TO
056 13A6675CP
BRACKET - BULKHEAD TO DECK - RH 		$30.44 1
TO
056 13A6672CP
BRACKET - BULKHEAD TO DECK - LH 		$35.54 1
TO
058 00RA429
SCREW - WASHER - M8X24 - BUTTON-HEX 		- 3
PE
 Enquire
060 00RA556
BOLT - HEX - FLANGED - M6X16 		- 4
PE
 Enquire
061 31AA097CP
ASSY PNL BDY SD TO DECK MACH - RH 		$513.92 1
TO
061 31AA096CP
ASSY PNL BDY SD TO DECK MACH - LH 		$513.92 1
TO
061 13A6754CP
PANEL - BODYSIDE TO REAR DECK - RH 		$342.38 1
TO
061 13A6753CP
PANEL - BODYSIDE TO REAR DECK - LH 		$342.38 1
TO
063 13A3489CP
GROMMET - BULKHEAD TO DECK BRACKET 		$2.42 2
TO
064 00RA305
SCREW - M6X25 - BUTTON 		- 1
PE
 Enquire
065 00RG032
Fir Tree Clip - Anixter - 066 6053 		- 1
PE
 Enquire
066 13A5733CP
PANEL - WHEEL ARCH COVER - RH 		$281.95 1
TO
066 13A5731CP
PANEL - WHEEL ARCH COVER - LH 		$281.95 1
TO
066 13A5720CP
PANEL - WHEEL ARCH COVER - RH - CARBON 		$2,538.83 1
TO
066 13A5717CP
PANEL - ARCH COVER - LH - CARBON 		$2,538.83 1
TO
068 13A6133CP
NVH - WHEEL ARCH COVER PANEL TO DOP - UPPER 		$9.66 1
TO
069 13A6134CP
NVH - WHEEL ARCH COVER PANEL TO DOP - LOWER 		$6.23 1
TO
070 13AA890CP
OUTRIGGER - REAR - LH 		$446.82 1
TO
070 13AA889CP
OUTRIGGER - REAR - RH 		$446.82 1
TO
071 13AA632CP
COVER - EMERGENCY KEY BARREL 		$40.26 1
TO
072 13A6317CP
SKIRT - BODY - 570S - 570GT - CARBON-RH 		$2,599.77 1
TO
072 13A6315CP
SKIRT - BODY - 570S - 570GT - CARBON-LH 		$2,599.77 1
TO
072 13AA597CP
SKIRT - BODY - 570S - 570GT - RH 		$690.54 1
TO
072 13AA594CP
SKIRT - BODY - 570S - 570GT - LH 		$690.54 1
TO
073 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 4
PE
 Enquire
073 00RB194
CLIP - U NUT - M6 		- 1
PE
 Enquire
077 13AA851CP
BRKT - CROSS BRACE - REAR - LH 		- 1
PE
 Enquire
079 13A5623CP
COMPLETE CROSS BRACE - REAR - CENTRE 		$60.42 1
TO
080 00RA542
CLIP - SNAPLOC - 16X8 		- 3
PE
 Enquire
081 13A5615CP
CROSS BRACE - CENTRE - UPRIGHT 		$40.60 1
TO
082 13AA020CP
BRACKET - CENTRE - CROSS BRACE 		$101.53 2
TO
085 13A5365CP
SEAL - CANTRAIL CAPPING PANEL - RH 		$8.91 1
TO
085 13A5362CP
SEAL - CANTRAIL CAPPING PANEL - LH 		$8.91 1
TO
086 13A4066CP
BRACKET - CANTRAIL TO DOOR HINGE - RH 		$25.37 1
TO
086 13A4063CP
BRACKET - CANTRAIL TO DOOR HINGE - LH 		$25.37 1
TO
091 00RC015
WASHER - M8X24X2 		- 2
PE
 Enquire
092 13A6307CP
COMPLETE - CROSS BRACE - CENTRE 		$241.69 1
TO
093 13AA969MP
ASSY AIS INTAKE INFILL PANEL RH 		$172.62 1
TO
093 13AA968MP
ASSY AIS INTAKE INFILL PANEL LH 		$172.62 1
TO
094 00RA481
BOLT - HEX HEAD - FLANGED - M8X45 		- 4
PE
 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
