McLaren 620R - 12 - DUCTS, VENTS AND FLOORS - 12.5 - REAR NON-STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
00RA584 SCREW - BUTTON - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13AA756CP DIFFUSER - 570S $4,326.19 To Order
13AA914CP REAR DIFFUSER - CARBON $10,033.55 To Order
Photo Part No Description Price (each) Stock
00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Enquire To Order
Photo Part No Description Price (each) Stock
13A4637CP HEATSHIELD - CARBON DIFFUSER - LH $120.83 To Order
Photo Part No Description Price (each) Stock
13A4638CP HEATSHIELD - CARBON DIFFUSER - RH $120.83 To Order
Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
13A5201CP BRACKET - DIFFUSER - LH $50.76 To Order
Photo Part No Description Price (each) Stock
13A5210CP BRACKET - DIFFUSER - RH $50.76 To Order

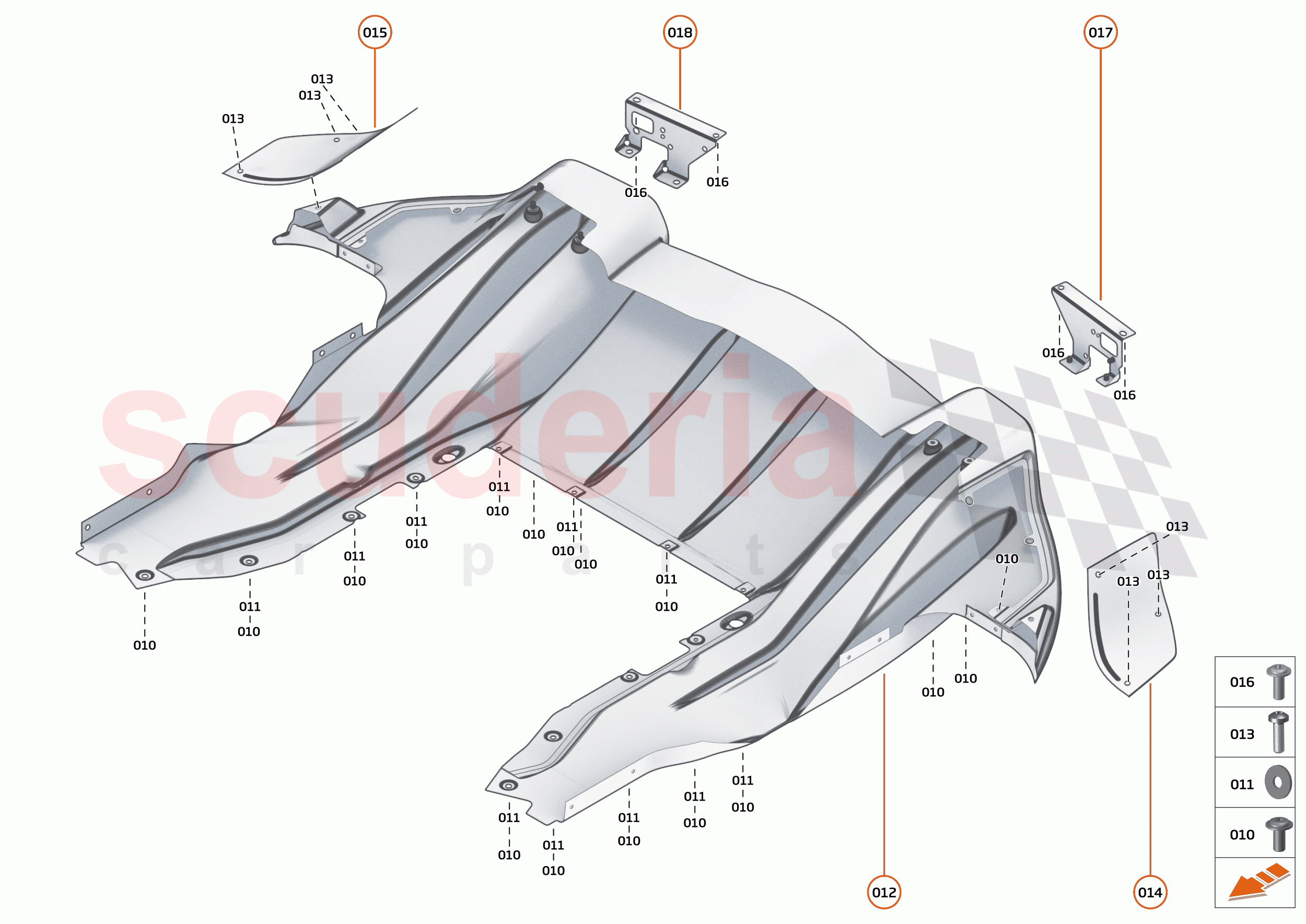

12 - DUCTS, VENTS AND FLOORS - 12.5 - REAR NON-STRUCTURAL FLOORS of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 00RA238
SCREW - M6X16 - LOCK BUTTON 		- 4
PE
 Enquire
010 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 18
PE
 Enquire
010 00RA584
SCREW - BUTTON - TORX - M6X16 		- -
PE
 Enquire
011 00RC064
WASHER - M6X18X1.6 - BLACK 		- 12
PE
 Enquire
012 13AA756CP
DIFFUSER - 570S 		$4,326.19 1
TO
012 13AA914CP
REAR DIFFUSER - CARBON 		$10,033.55 1
TO
013 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 		- 6
PE
 Enquire
014 13A4637CP
HEATSHIELD - CARBON DIFFUSER - LH 		$120.83 1
TO
015 13A4638CP
HEATSHIELD - CARBON DIFFUSER - RH 		$120.83 1
TO
016 00RA263
SCREW - M6X20 - BUTTON 		- 4
PE
 Enquire
017 13A5201CP
BRACKET - DIFFUSER - LH 		$50.76 1
TO
018 13A5210CP
BRACKET - DIFFUSER - RH 		$50.76 1
TO
