24 - Brakes - Rear - 24.2 - Brake Calipers Rear

McLaren 600LT Spider

Find Your Part

McLaren 600LT Spider - 24 - BRAKES - REAR - 24.2 - BRAKE CALIPERS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB109 CLIP - NORMA - RSGU 8 Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0383CP ASSY-LINK LEAD-BRAKE PAD-RR $55.36 IN STOCK
Photo Part No Description Price (each) Stock
11C0524CP BOLT - BRAKE CALIPER - REAR - IRON $17.25 To Order
00RA597 BOLT - BRAKE CALIPER - REAR - CARBON - MASSDAMPER Enquire To Order
11C0525CP BOLT - BRAKE CALIPER - CARBON CERAMIC $24.97 To Order
Photo Part No Description Price (each) Stock
13C0268CP MASS DAMPER - BRAKE CALIPER - REAR - CCM $604.24 To Order
Photo Part No Description Price (each) Stock
13CA117CP BRAKE PAD KIT - AXLE SET - IRON - REAR $453.45 To Order
14CA076CP BRAKE PAD KIT - REAR $1,032.86 To Order
Photo Part No Description Price (each) Stock
14CA114CP BRAKE CALIPER - CARBON 4 POT - REAR - RH - MACHINED LOGO Enquire To Order
14CA113CP BRAKE CALIPER - CARBON 4 POT - REAR - LH - MACHINED LOGO Enquire To Order
14CA110CP BRAKE CALIPER - 4 POT - REAR - RH $1,409.89 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13CA043CP PIN KIT - BRAKE PAD RETENTION $40.60 To Order

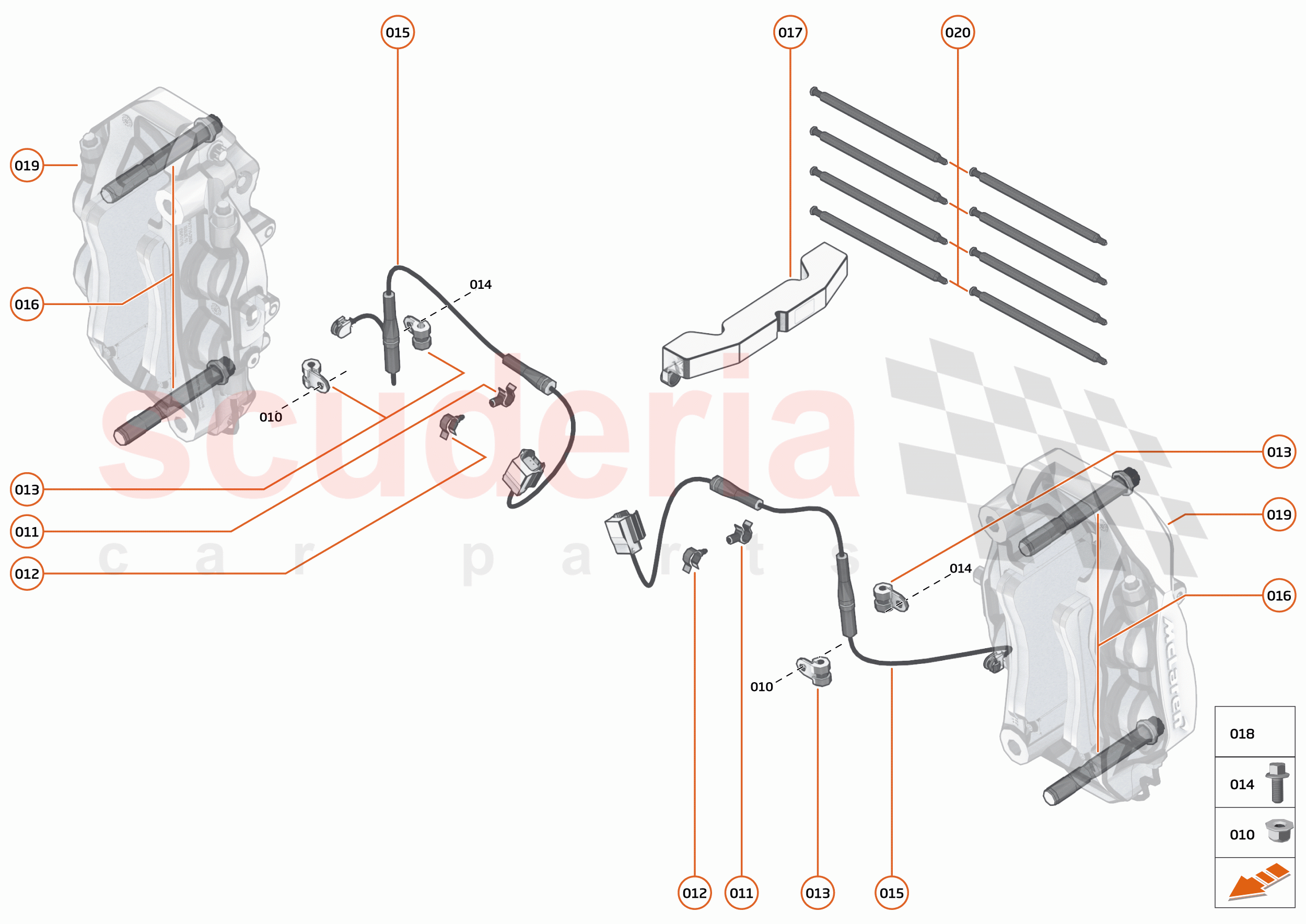

24 - BRAKES - REAR - 24.2 - BRAKE CALIPERS REAR of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11C0677CP
Dust Seal Kit - Brake Caliper - Carbon - Rear 		$35.54 1
TO
010 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 1
PE
 Enquire
011 00RB045
CLIP - 9.5-10MM - MALE 		- 1
PE
 Enquire
012 00RB046
CLIP - 8-9MM - FEMALE 		- 1
PE
 Enquire
013 00RB109
CLIP - NORMA - RSGU 8 		- 2
PE
 Enquire
014 00RX001
BOLT - M5X16 - HEX 		- 1
PE
 Enquire
015 11M0383CP
ASSY-LINK LEAD-BRAKE PAD-RR
IN STOCK 		$55.36 1
IN
016 11C0524CP
BOLT - BRAKE CALIPER - REAR - IRON 		$17.25 2
TO
016 00RA597
BOLT - BRAKE CALIPER - REAR - CARBON - MASSDAMPER 		- 2
PE
 Enquire
016 11C0525CP
BOLT - BRAKE CALIPER - CARBON CERAMIC 		$24.97 2
TO
017 13C0268CP
MASS DAMPER - BRAKE CALIPER - REAR - CCM 		$604.24 1
TO
018 13CA117CP
BRAKE PAD KIT - AXLE SET - IRON - REAR 		$453.45 1
TO
018 14CA076CP
BRAKE PAD KIT - REAR 		$1,032.86 1
TO
019 14CA114CP
BRAKE CALIPER - CARBON 4 POT - REAR - RH - MACHINED LOGO 		- 1
PE
 Enquire
019 14CA113CP
BRAKE CALIPER - CARBON 4 POT - REAR - LH - MACHINED LOGO 		- 1
PE
 Enquire
019 14CA110CP
BRAKE CALIPER - 4 POT - REAR - RH 		$1,409.89 1
TO
019 14CA109CP
BRAKE CALIPER - 4 POT - REAR - LH 		$1,409.89 1
TO
020 13CA043CP
PIN KIT - BRAKE PAD RETENTION 		$40.60 1
TO
