McLaren 600LT Spider - 34 - ENGINE - 34.10 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1192CP ENGINE LADDERFRAME COLD START OIL SEAL SOP $15.21 To Order
11F1191CP ENGINE LADDERFRAME WATER PASSAGE SEAL SOP $15.21 To Order
Photo Part No Description Price (each) Stock
11F0799CP ENGINE-BED PLATE PLUG-INCL WASHER $25.37 IN STOCK
11F1942CP WASHER - LADDERFRAME - M18 - COPPER $11.14 To Order
Photo Part No Description Price (each) Stock
11F2209CP CRANK TIMING PLUG - ENGINE - INC. O-RING $13.18 To Order
Photo Part No Description Price (each) Stock
11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE $10.14 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
11F0798CP Stud Kit - Engine to Transmission $30.44 To Order
Photo Part No Description Price (each) Stock
11F1918CP BOLT- LADDERFRAME- M10X110 $16.22 To Order
11F1917CP BOLT- LADDERFRAME- M12X115 $16.22 To Order

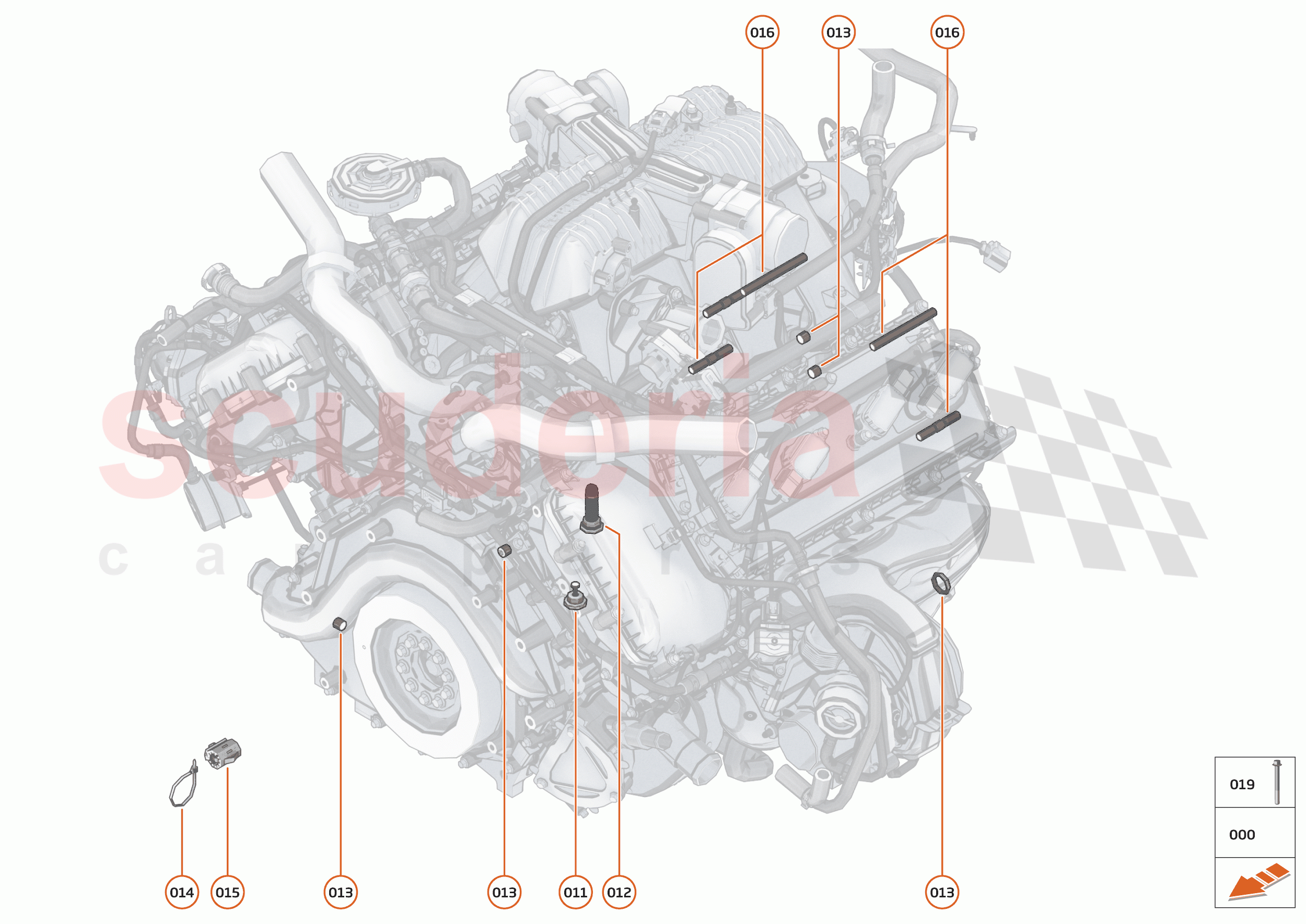

34 - ENGINE - 34.10 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1192CP
ENGINE LADDERFRAME COLD START OIL SEAL SOP 		$15.21 1
TO
000 11F1191CP
ENGINE LADDERFRAME WATER PASSAGE SEAL SOP 		$15.21 1
TO
010 13FA092RP
ENGINE - 3.8 LITRE V8 TWIN TURBO - ISG - NO A/C 		$67,516.72 1
TO
010 13FA026SP
ENGINE - 3.8 LITRE V8 TWIN TURBO - NON ISG 		$67,533.59 1
TO
011 11F0799CP
ENGINE-BED PLATE PLUG-INCL WASHER
IN STOCK 		$25.37 1
IN
011 11F1942CP
WASHER - LADDERFRAME - M18 - COPPER 		$11.14 1
TO
012 11F2209CP
CRANK TIMING PLUG - ENGINE - INC. O-RING 		$13.18 1
TO
013 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE 		$10.14 4
TO
014 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
015 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
016 11F0798CP
Stud Kit - Engine to Transmission 		$30.44 1
TO
018 11F1018CP
Seal - Clutch Cooler Pipe Connection 		$30.44 1
TO
019 11F1918CP
BOLT- LADDERFRAME- M10X110 		$16.22 1
TO
019 11F1917CP
BOLT- LADDERFRAME- M12X115 		$16.22 1
TO
