McLaren 600LT Spider - 33 - HEAT INSULATION - 33.1 - HEATSHIELDS - POWERTRAIN MOUNTED

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
13E0111CP HEATSHIELD - AC COMPRESSOR $426.52 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC063 Washer - M5x20x1 Enquire To Order
Photo Part No Description Price (each) Stock
11E0149CP Heatshield - Link Pipe - Lower - Outer - LH $487.43 To Order
Photo Part No Description Price (each) Stock
11E0151CP Heatshield - Link Pipe - Lower - Inner - LH $487.43 To Order
Photo Part No Description Price (each) Stock
11E0092CP Heatshield - Lambda Sensor $55.84 To Order
Photo Part No Description Price (each) Stock
11E0147CP Heatshield - Link Pipe - Upper LH Inner - RH Outer $487.43 To Order
Photo Part No Description Price (each) Stock
11E0148CP Heatshield - Link Pipe - Upper RH Inner - LH Outer $487.43 To Order
Photo Part No Description Price (each) Stock
11E0150CP Heatshield - Link Pipe - Lower - Outer - RH $487.43 To Order
Photo Part No Description Price (each) Stock
11E0152CP Heatshield - Link Pipe - Lower - Inner - RH $487.43 To Order

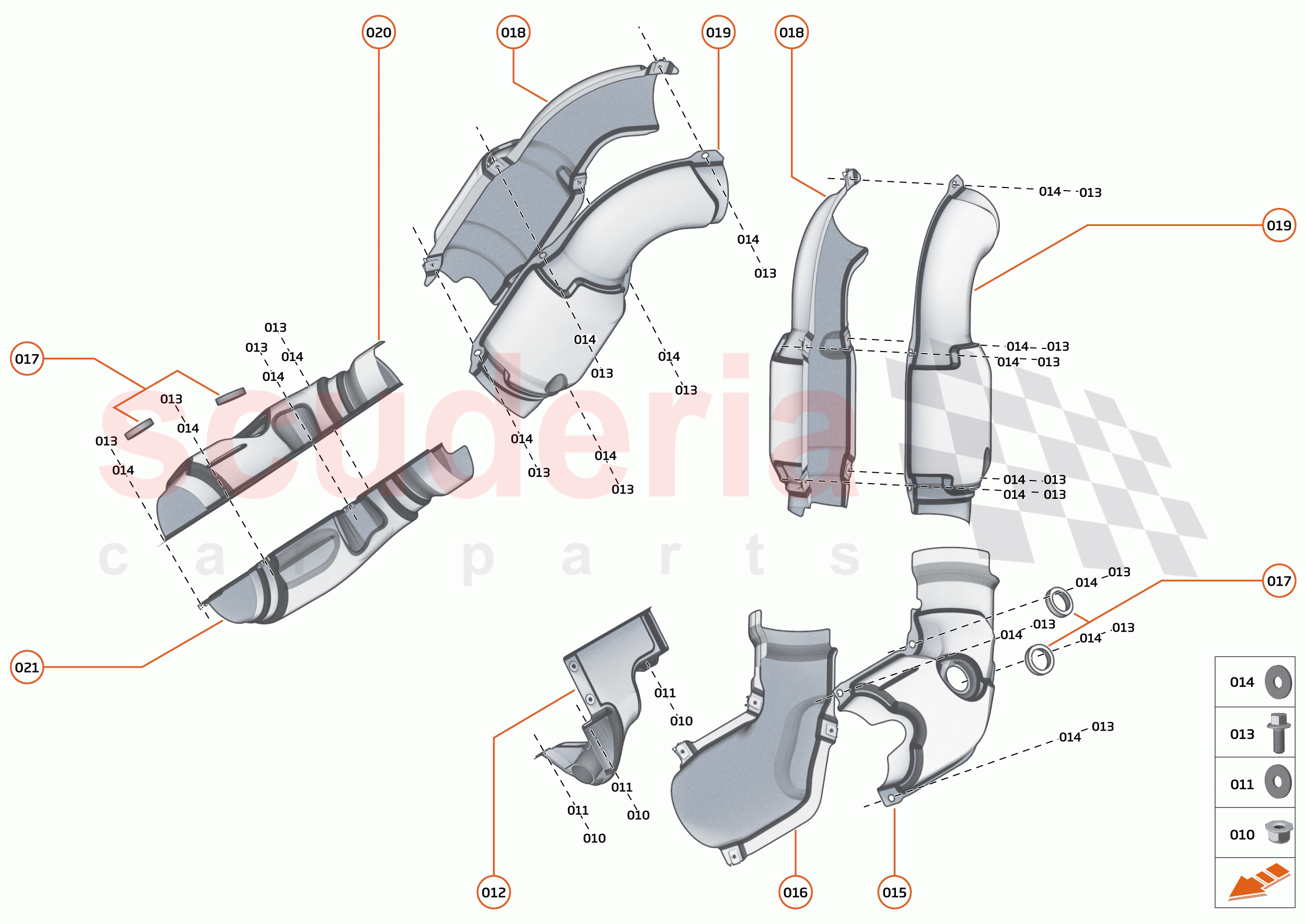

33 - HEAT INSULATION - 33.1 - HEATSHIELDS - POWERTRAIN MOUNTED of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 3
PE
 Enquire
011 00RC028
WASHER - M6 FORM C 		- 3
PE
 Enquire
012 13E0111CP
HEATSHIELD - AC COMPRESSOR 		$426.52 1
TO
013 00RA064
BOLT - M5X12 - HEX 		- 9
PE
 Enquire
014 00RC063
Washer - M5x20x1 		- 9
PE
 Enquire
015 11E0149CP
Heatshield - Link Pipe - Lower - Outer - LH 		$487.43 1
TO
016 11E0151CP
Heatshield - Link Pipe - Lower - Inner - LH 		$487.43 1
TO
017 11E0092CP
Heatshield - Lambda Sensor 		$55.84 2
TO
018 11E0147CP
Heatshield - Link Pipe - Upper LH Inner - RH Outer 		$487.43 1
TO
019 11E0148CP
Heatshield - Link Pipe - Upper RH Inner - LH Outer 		$487.43 1
TO
020 11E0150CP
Heatshield - Link Pipe - Lower - Outer - RH 		$487.43 1
TO
021 11E0152CP
Heatshield - Link Pipe - Lower - Inner - RH 		$487.43 1
TO
