5 - PANELS - 5.5 - UPPER STRUCTURE of McLaren McLaren 600LT Spider

McLaren 600LT Spider - 5 - PANELS - 5.5 - UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA242	STUD M8X1.25X35	Enquire	To Order
	00RA242	STUD M8X1.25X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA289	BOLT - BUTTON - FLANGE - M8X35 - 10.9	Enquire	To Order
	00RA289	BOLT - BUTTON - FLANGE - M8X35 - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A0541CP	COVER - B POST - LATCH - LH	$60.90	To Order
	11A0541CP	COVER - B POST - LATCH - LH	$60.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11A0540CP	COVER - B POST - LATCH - RH	$60.90	To Order
	11A0540CP	COVER - B POST - LATCH - RH	$60.90	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3152CP	AIR EVACUATION VENT - LH	$53.19	To Order
	13A3152CP	AIR EVACUATION VENT - LH	$53.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3154CP	AIR EVACUATION VENT - RH	$53.19	To Order
	13A3154CP	AIR EVACUATION VENT - RH	$53.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5808CP	ROOF PANEL - STANDARD	Enquire	To Order
	13AA197CP	Roof Panel - Standard	Enquire	To Order
	13A6360CP	Roof Panel - Carbon	$8,144.63	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	00RC015	WASHER - M8X24X2	Enquire	To Order
	00RC015	WASHER - M8X24X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A4934SP	AIR EVACUATION VENT - LH	$54.81	To Order
	13A4934SP	AIR EVACUATION VENT - LH	$54.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5173SP	AIR EVACUATION VENT - RH	$54.81	To Order
	13A5173SP	AIR EVACUATION VENT - RH	$54.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA531SP	Capping Panel - Header	$563.95	To Order
	13AA531SP	Capping Panel - Header	$563.95	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	Enquire	To Order
	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC056	Washer - M5x12.5x1 Form C	Enquire	To Order
	00RC056	Washer - M5x12.5x1 Form C	Enquire	To Order

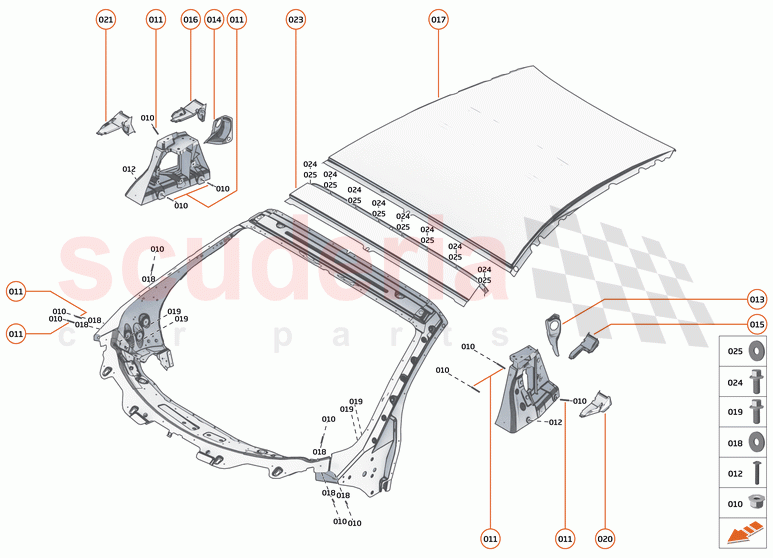

Diagram Tap to enlarge

	#	Part Description	Part Details
	00RA056	NUT - M8-8 - LOCK HEX	-
010 NUT - M8-8 - LOCK HEX - 3 PE Enquire 010 NUT - M8-8 - LOCK HEX - 3 PE Enquire
	00RA242	STUD M8X1.25X35	-
011 STUD M8X1.25X35 - 3 PE Enquire 011 STUD M8X1.25X35 - 3 PE Enquire
	00RA289	BOLT - BUTTON - FLANGE - M8X35 - 10.9	-
012 BOLT - BUTTON - FLANGE - M8X35 - 10.9 - 1 PE Enquire 012 BOLT - BUTTON - FLANGE - M8X35 - 10.9 - 1 PE Enquire
	11A0541CP	COVER - B POST - LATCH - LH	from $60.90
013 COVER - B POST - LATCH - LH $60.90 1 TO 013 COVER - B POST - LATCH - LH $60.90 1 TO
	11A0540CP	COVER - B POST - LATCH - RH	from $60.90
014 COVER - B POST - LATCH - RH $60.90 1 TO 014 COVER - B POST - LATCH - RH $60.90 1 TO
	13A3152CP	AIR EVACUATION VENT - LH	from $53.19
015 AIR EVACUATION VENT - LH $53.19 1 TO 015 AIR EVACUATION VENT - LH $53.19 1 TO
	13A3154CP	AIR EVACUATION VENT - RH	from $53.19
016 AIR EVACUATION VENT - RH $53.19 1 TO 016 AIR EVACUATION VENT - RH $53.19 1 TO
	13A5808CP	ROOF PANEL - STANDARD	-
017 ROOF PANEL - STANDARD - 1 PE Enquire 017 ROOF PANEL - STANDARD - 1 PE Enquire
	13AA197CP	ROOF PANEL - STANDARD	-
017 Roof Panel - Standard - 1 PE Enquire 017 Roof Panel - Standard - 1 PE Enquire
	13A6360CP	ROOF PANEL - CARBON	from $8,144.63
017 Roof Panel - Carbon $8,144.63 1 TO 017 Roof Panel - Carbon $8,144.63 1 TO
	00RC015	WASHER - M8X24X2	-
018 WASHER - M8X24X2 - 2 PE Enquire 018 WASHER - M8X24X2 - 2 PE Enquire
	00RA002	BOLT - M8X20 - HEX	-
019 BOLT - M8X20 - HEX - 4 PE Enquire 019 BOLT - M8X20 - HEX - 4 PE Enquire
	13A4934SP	AIR EVACUATION VENT - LH	from $54.81
020 AIR EVACUATION VENT - LH $54.81 1 TO 020 AIR EVACUATION VENT - LH $54.81 1 TO
	13A5173SP	AIR EVACUATION VENT - RH	from $54.81
021 AIR EVACUATION VENT - RH $54.81 1 TO 021 AIR EVACUATION VENT - RH $54.81 1 TO
	13AA531SP	CAPPING PANEL - HEADER	from $563.95
023 Capping Panel - Header $563.95 1 TO 023 Capping Panel - Header $563.95 1 TO
	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	-
024 BOLT - BUTTON HEAD - TORX - M5X16 - 8 PE Enquire 024 BOLT - BUTTON HEAD - TORX - M5X16 - 8 PE Enquire
	00RC056	WASHER - M5X12.5X1 FORM C	-
025 Washer - M5x12.5x1 Form C - 8 PE Enquire 025 Washer - M5x12.5x1 Form C - 8 PE Enquire

5 - Panels - 5.5 - Upper Structure

McLaren 600LT Spider

McLaren 600LT Spider - 5 - PANELS - 5.5 - UPPER STRUCTURE
