McLaren 600LT Spider - 8 - OPENING ROOF SYSTEMS - 8.7 - CONVERTIBLE ROOF (RHT) - HYDRAULICS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4609SP RHT - Gasket Kit - Hydraulic Lines $172.62 To Order
11A4050SP RHT - Hydraulic Union Clip kit $223.40 To Order
Photo Part No Description Price (each) Stock
11A4024SP RHT - Hydraulic Cylinder Kit (pair) - Tonneau $1,381.12 To Order
Photo Part No Description Price (each) Stock
11A4025SP RHT - Hydraulic Cylinder Kit (pair) - Roof $1,381.12 To Order
Photo Part No Description Price (each) Stock
11A4027SP RHT - Hydraulic Lines Kit - Tonneau Cylinders $1,949.82 To Order
Photo Part No Description Price (each) Stock
11A4033SP RHT - Hydraulic Powerpack $7,397.58 To Order
Photo Part No Description Price (each) Stock
13AA113SP Bracket - Support - Pump - RHT - LH $123.36 To Order
Photo Part No Description Price (each) Stock
13AA078SP Bracket - Support - Pump - RHT - RH $75.72 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC063 Washer - M5x20x1 Enquire To Order

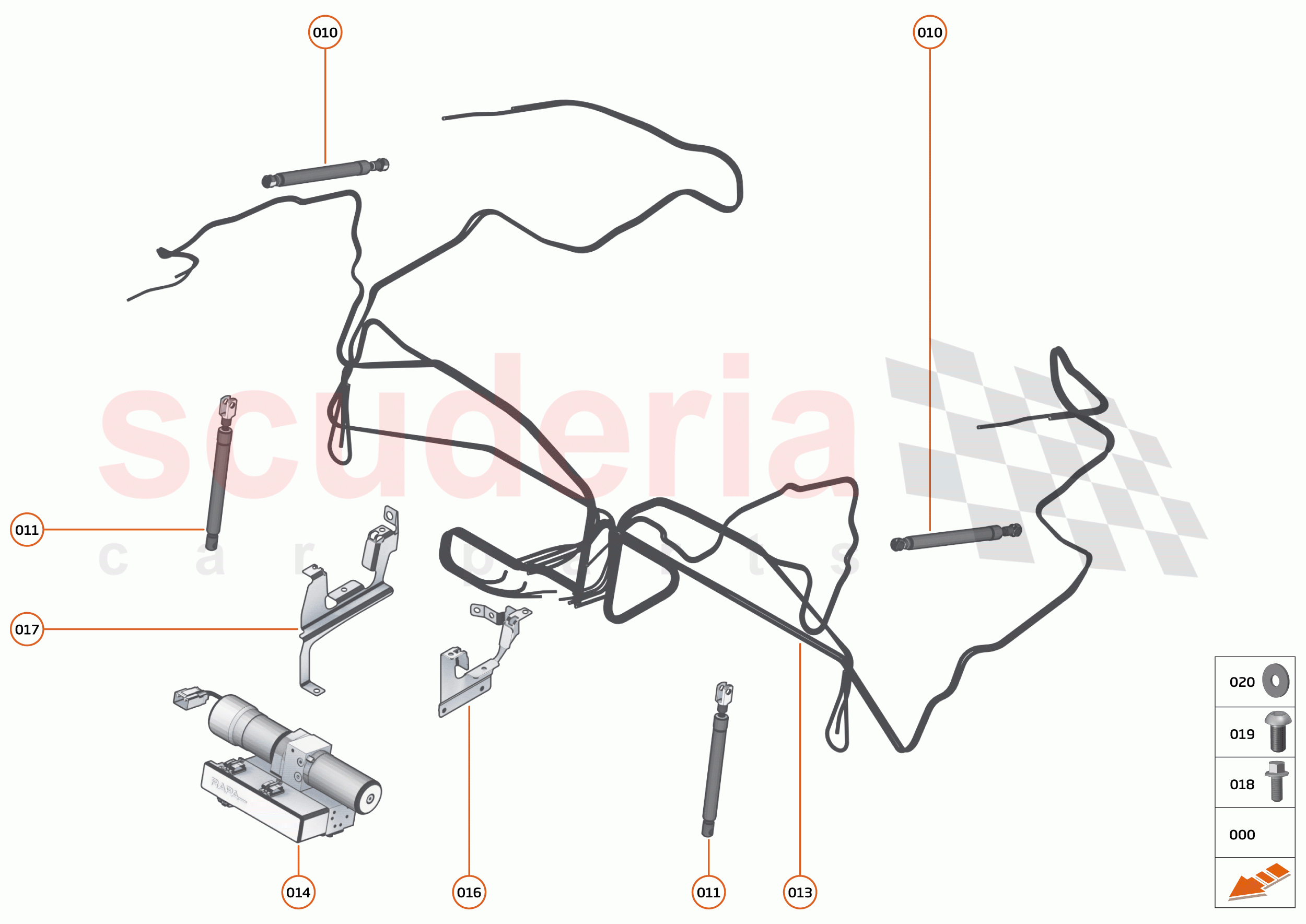

8 - OPENING ROOF SYSTEMS - 8.7 - CONVERTIBLE ROOF (RHT) - HYDRAULICS of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A4609SP
RHT - Gasket Kit - Hydraulic Lines 		$172.62 1
TO
000 11A4050SP
RHT - Hydraulic Union Clip kit 		$223.40 1
TO
010 11A4024SP
RHT - Hydraulic Cylinder Kit (pair) - Tonneau 		$1,381.12 1
TO
011 11A4025SP
RHT - Hydraulic Cylinder Kit (pair) - Roof 		$1,381.12 1
TO
012 11A4026SP
RHT - Hydraulic Cylinder Kit (pair) - Latch 		$1,381.12 1
TO
013 11A4027SP
RHT - Hydraulic Lines Kit - Tonneau Cylinders 		$1,949.82 1
TO
014 11A4033SP
RHT - Hydraulic Powerpack 		$7,397.58 1
TO
016 13AA113SP
Bracket - Support - Pump - RHT - LH 		$123.36 1
TO
017 13AA078SP
Bracket - Support - Pump - RHT - RH 		$75.72 1
TO
018 00RX001
BOLT - M5X16 - HEX 		- 1
PE
 Enquire
019 00RA019
SCREW - M6X12-10.9 - HEX 		- 1
PE
 Enquire
020 00RC063
Washer - M5x20x1 		- 2
PE
 Enquire
