McLaren 600LT Spider - 8 - OPENING ROOF SYSTEMS - 8.2 - CONVERTIBLE ROOF - BACKLIGHT & HYDRAULICS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4033SP RHT - Hydraulic Powerpack $7,397.58 To Order
11A4027SP RHT - Hydraulic Lines Kit - Tonneau Cylinders $1,949.82 To Order
11A4026SP RHT - Hydraulic Cylinder Kit (pair) - Latch $1,381.12 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8269SP ROOF KINEMATIC $32,355.17 To Order
Photo Part No Description Price (each) Stock
00RA302 SCREW - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA480 SCREW - M4X0.7X8MM - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB128 CLIP - EDGE - 90 DEG Enquire To Order
Photo Part No Description Price (each) Stock
00RC030 Washer - M4x12x1 Enquire To Order

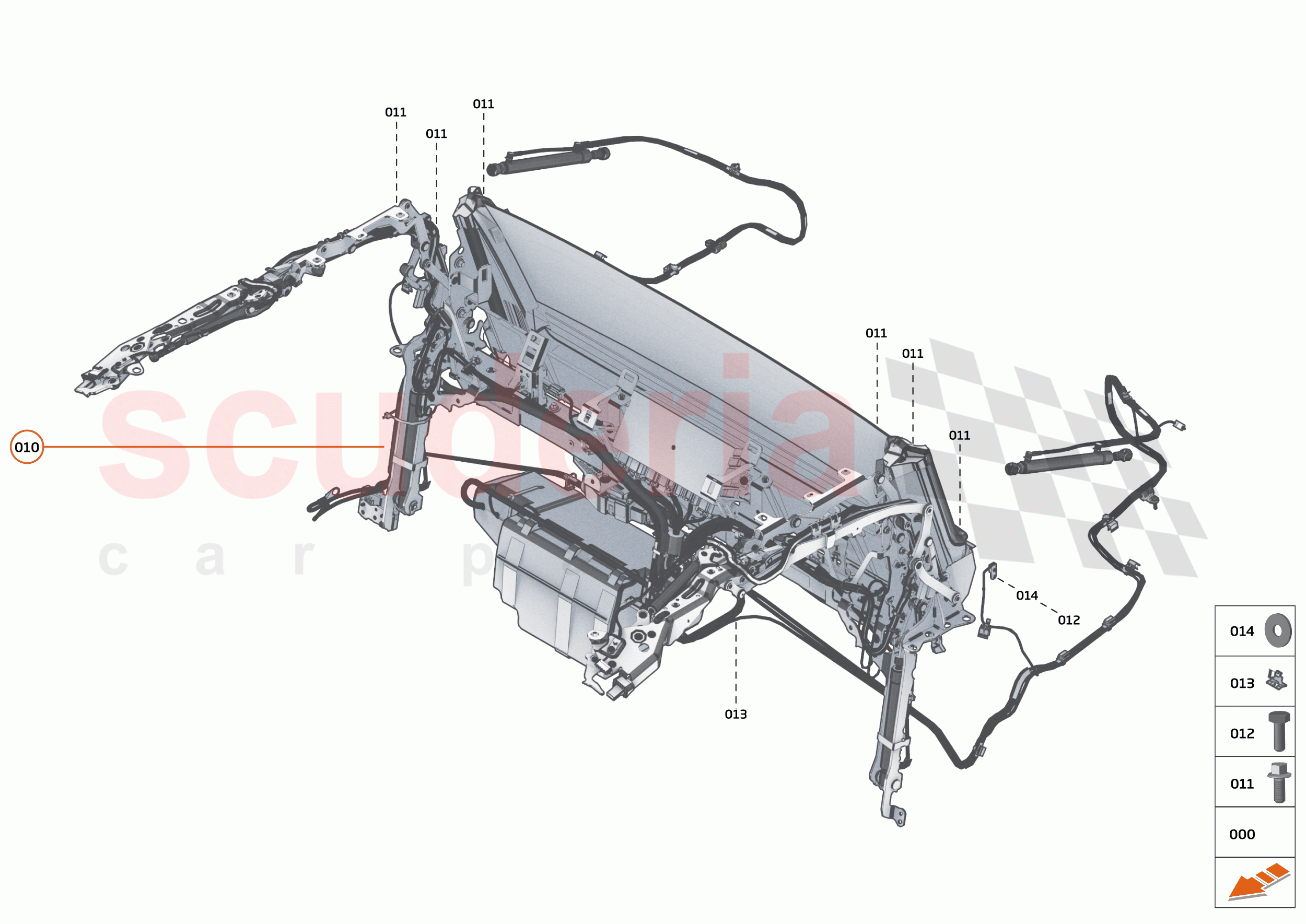

8 - OPENING ROOF SYSTEMS - 8.2 - CONVERTIBLE ROOF - BACKLIGHT & HYDRAULICS of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A4033SP
RHT - Hydraulic Powerpack 		$7,397.58 1
TO
000 11A4027SP
RHT - Hydraulic Lines Kit - Tonneau Cylinders 		$1,949.82 1
TO
000 11A4026SP
RHT - Hydraulic Cylinder Kit (pair) - Latch 		$1,381.12 1
TO
000 11A4025SP
RHT - Hydraulic Cylinder Kit (pair) - Roof 		$1,381.12 1
TO
000 11A4024SP
RHT - Hydraulic Cylinder Kit (pair) - Tonneau 		$1,381.12 1
TO
000 11A4609SP
RHT - Gasket Kit - Hydraulic Lines 		$172.62 1
TO
000 11A6683SP
RHT - Backlight Waterbag Kit 		$1,230.91 1
TO
000 11A4050SP
RHT - Hydraulic Union Clip kit 		$223.40 1
TO
000 11A4040SP
RHT - Drive Cable Kit 		$49.99 1
TO
000 11A4039SP
Motor - RHT - Back Light E-drive 		$261.81 1
TO
000 11A4038SP
RHT - Backlight Slider Carrier Kit 		$17.25 1
TO
000 11A4037SP
RHT - Back Light Glass Assy 		$1,087.63 1
TO
000 11A4036SP
RHT - Back Light Kinematic Assy - inc.Shims/Screws 		$1,266.13 1
TO
010 11A8269SP
ROOF KINEMATIC 		$32,355.17 1
TO
011 00RA302
SCREW - M8X20 - HEX 		- 6
PE
 Enquire
012 00RA480
SCREW - M4X0.7X8MM - HEX 		- 2
PE
 Enquire
013 00RB128
CLIP - EDGE - 90 DEG 		- 1
PE
 Enquire
014 00RC030
Washer - M4x12x1 		- 2
PE
 Enquire
015 00RC017
WASHER - M5X15X1.2 		- 2
PE
 Enquire
016 11AA052SP
ASSY-RHT BACKLIGHT MODULE - INC. GLASS 		- 1
PE
 Enquire
017 11AA053SP
ASSY-RHT BACKLIGHT MODULE - EXC. GLASS 		- 1
PE
 Enquire
018 00RB127
P-CLIP - 12/13 - EPDM 		- 2
PE
 Enquire
019 00RA099
SCREW - M4X25 - HEX 		- 1
PE
 Enquire
