McLaren 600LT - 33 - ENGINE - 33.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F2579CP FRONT CRANK SEAL $111.69 IN STOCK
Photo Part No Description Price (each) Stock
11F2344CP SEAL - ENGINE CRANK - REAR $111.69 To Order
Photo Part No Description Price (each) Stock
11F0397CP Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal Enquire To Order
Photo Part No Description Price (each) Stock
11F0978CP Cover - Cylinder Head Front - RH - Engine $152.32 To Order
Photo Part No Description Price (each) Stock
11F0722CP Chain Drive Kit - Engine - Oil Pump $223.40 To Order
Photo Part No Description Price (each) Stock
11F0718CP Gear - Engine - Compound $264.02 To Order
Photo Part No Description Price (each) Stock
11F0723CP Camshaft Drive Kit - Engine $1,399.53 To Order
Photo Part No Description Price (each) Stock
11F0977CP Cover - Cylinder Head Front - LH - Engine $152.32 To Order
Photo Part No Description Price (each) Stock
11F0721CP Chain Drive Kit - Engine - Water Pump $264.02 To Order
Photo Part No Description Price (each) Stock
11F1393CP Seal - Engine - Front Cover Perimeter $55.84 To Order
Photo Part No Description Price (each) Stock
11F0708CP ENGINE CRANKSHAFT 24MPER $629.62 To Order
Photo Part No Description Price (each) Stock
11F0816CP Bolt Set - M8x20 - Engine - Crankshaft Damper $60.90 To Order

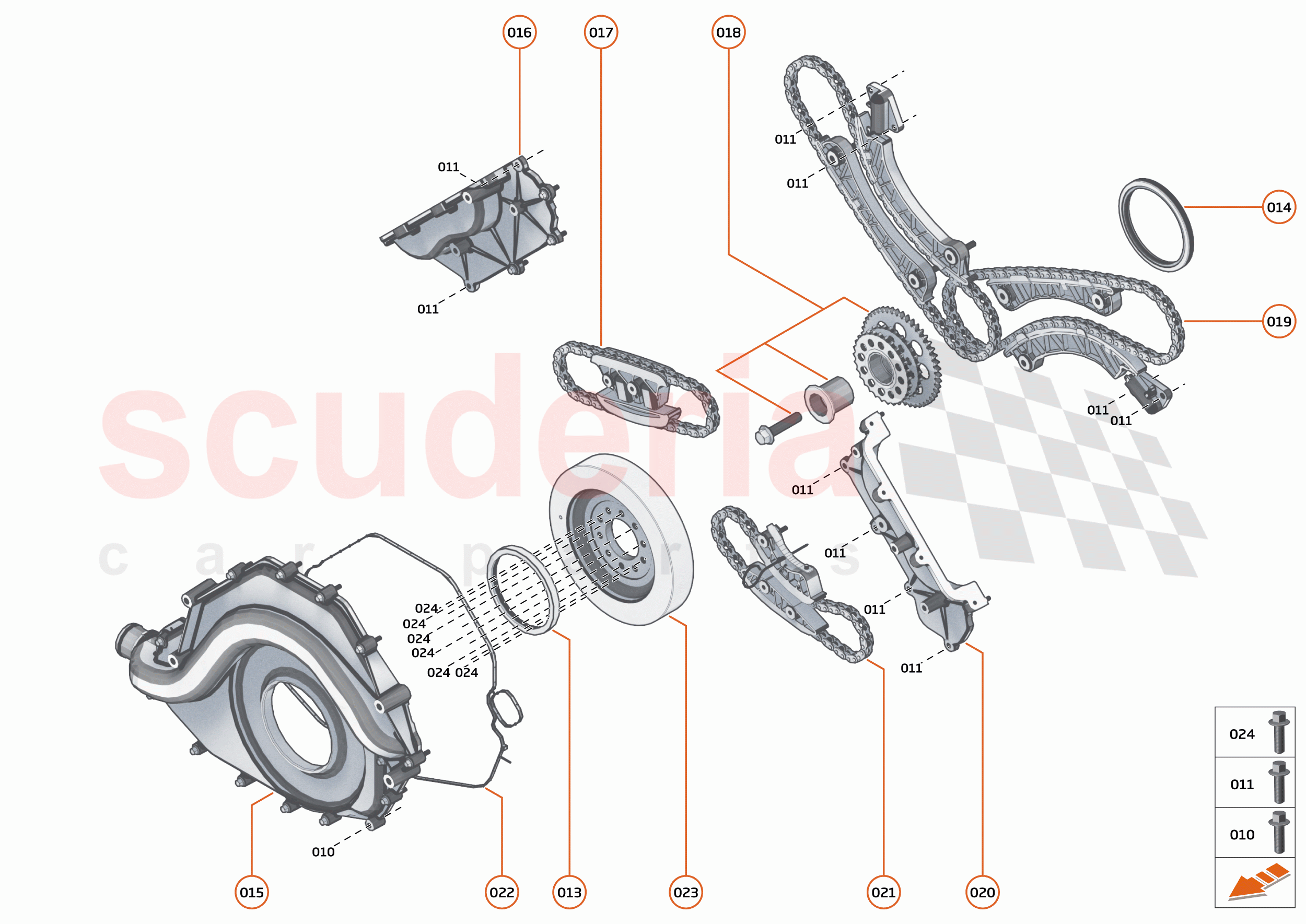

33 - ENGINE - 33.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1776CP
BOLT - M6X30 - HEX 		$10.14 1
TO
011 11F1793CP
BOLT - M6X20 - HEX 		$11.14 10
TO
013 11F2579CP
FRONT CRANK SEAL
IN STOCK 		$111.69 1
IN
014 11F2344CP
SEAL - ENGINE CRANK - REAR 		$111.69 1
TO
015 11F0397CP
Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal 		- 1
PE
 Enquire
016 11F0978CP
Cover - Cylinder Head Front - RH - Engine 		$152.32 1
TO
017 11F0722CP
Chain Drive Kit - Engine - Oil Pump 		$223.40 1
TO
018 11F0718CP
Gear - Engine - Compound 		$264.02 1
TO
019 11F0723CP
Camshaft Drive Kit - Engine 		$1,399.53 1
TO
020 11F0977CP
Cover - Cylinder Head Front - LH - Engine 		$152.32 1
TO
021 11F0721CP
Chain Drive Kit - Engine - Water Pump 		$264.02 1
TO
022 11F1393CP
Seal - Engine - Front Cover Perimeter 		$55.84 1
TO
023 11F0708CP
ENGINE CRANKSHAFT 24MPER 		$629.62 1
TO
024 11F0816CP
Bolt Set - M8x20 - Engine - Crankshaft Damper 		$60.90 1
TO
