33 - Engine - 33.1 - Cylinder Head & Valve Train

McLaren 600LT

Find Your Part

McLaren 600LT - 33 - ENGINE - 33.1 - CYLINDER HEAD & VALVE TRAIN

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11FA026CP VALVE SHIM - REPAIR KIT $2,799.66 To Order
11F1510CP SHIM - VALVE LASH - 2.935 $191.32 To Order
11F1509CP SHIM - VALVE LASH - 2.92 $191.32 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
13F0341CP VCT - EXHAUST - LH $649.93 To Order
Photo Part No Description Price (each) Stock
13F0343CP VCT - INTAKE - RH $649.93 To Order
Photo Part No Description Price (each) Stock
13F0345CP VCT - INTAKE - LH $548.37 To Order
Photo Part No Description Price (each) Stock
13F0347CP VCT - EXHAUST - RH $548.37 To Order
Photo Part No Description Price (each) Stock
11F1685CP BOLT - CYLINDER HEAD INC. WASHER $11.14 To Order
Photo Part No Description Price (each) Stock
13F0812CP CAP - HEAD BOLT $8.10 To Order
Photo Part No Description Price (each) Stock
11F0803CP Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser $7.09 To Order
Photo Part No Description Price (each) Stock
11F2459CP Solenoid - Engine Cam Phaser $201.40 To Order
Photo Part No Description Price (each) Stock
11F2636RP Cylinder Head - Engine - Assy - RH - 675LT - Sports Series $10,765.64 To Order
13F0549CP CYL HD ASSY MC-RH $2,843.52 To Order
Photo Part No Description Price (each) Stock
11F1152CP CAM COVER-RH 24 $288.53 To Order
Photo Part No Description Price (each) Stock
11F1060CP Mount - Anti-Vibration - Ignition Coil - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1777CP BOLT - M6X40 - HEX $4.65 To Order
Photo Part No Description Price (each) Stock
13FA049CP Head Gasket Kit - Inc. Bolts - Engine - RH $385.87 To Order
Photo Part No Description Price (each) Stock
13FA048CP Head Gasket Kit - Inc. Bolts - Engine - LH $385.87 To Order
Photo Part No Description Price (each) Stock
11F1153CP CAM COVER-LH 24 $288.53 To Order
Photo Part No Description Price (each) Stock
11F2635RP Cylinder Head - Engine - Assy - LH - 675LT - Sports Series $10,765.64 To Order
13F0548CP CYL HD ASSY MC-LH $2,843.52 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1685CP BOLT - CYLINDER HEAD INC. WASHER $11.14 To Order
Photo Part No Description Price (each) Stock
11F1459CP INTAKE VALVE-STD $30.44 To Order
Photo Part No Description Price (each) Stock
11F1452CP EXHAUST VALVE-STD $65.98 To Order
Photo Part No Description Price (each) Stock
11F1979CP SEAL- VALVE STEM $13.18 To Order
Photo Part No Description Price (each) Stock
11F1975CP Color codes: COLLET $8.71 To Order
Photo Part No Description Price (each) Stock
11F1685CP BOLT - CYLINDER HEAD INC. WASHER $11.14 To Order
Photo Part No Description Price (each) Stock
11F1977CP RETAINER SPRING $13.18 To Order
Photo Part No Description Price (each) Stock
11F2684CP ROCKER MOUNTING $483.38 To Order
Photo Part No Description Price (each) Stock
11F1513CP CAMSHAFT-EXHAUST-RH $483.38 To Order
11F1166RP CAMSHAFT-INLET RH $503.52 To Order
Photo Part No Description Price (each) Stock
11F1512CP CAMSHAFT-EXHAUST-LH $483.38 To Order
11F1123RP CAMSHAFT-INLET LH $463.23 To Order
Photo Part No Description Price (each) Stock
11F0740CP ENGINE CAM PHASE SENSOR $241.69 To Order

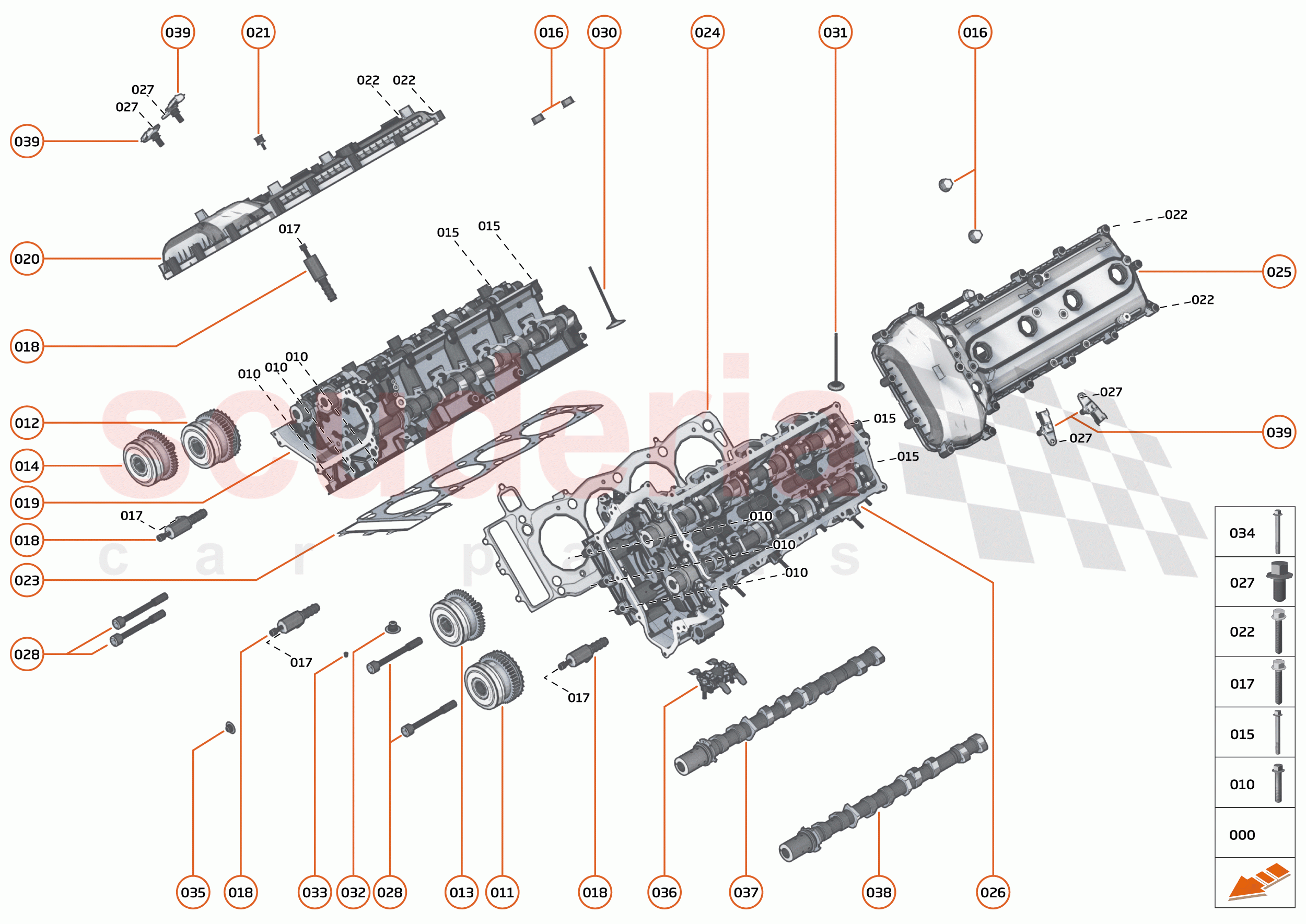

33 - ENGINE - 33.1 - CYLINDER HEAD & VALVE TRAIN of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11FA026CP
VALVE SHIM - REPAIR KIT 		$2,799.66 1
TO
000 11F1510CP
SHIM - VALVE LASH - 2.935 		$191.32 1
TO
000 11F1509CP
SHIM - VALVE LASH - 2.92 		$191.32 1
TO
000 11F1508CP
SHIM - VALVE LASH - 2.905 		$191.32 1
TO
000 11F1506CP
SHIM - VALVE LASH - 2.875 		$191.32 1
TO
000 11F1507CP
SHIM - VALVE LASH - 2.89 		$191.32 1
TO
000 11F1505CP
SHIM - VALVE LASH - 2.86 		$191.32 1
TO
000 11F1504CP
SHIM - VALVE LASH - 2.845 		$191.32 1
TO
000 11F1497CP
SHIM - VALVE LASH - 2.74 		$191.32 1
TO
000 11F1502CP
SHIM - VALVE LASH - 2.815 		$191.32 1
TO
000 11F1498CP
SHIM - VALVE LASH - 2.755 		$191.32 1
TO
000 11F1499CP
SHIM - VALVE LASH - 2.77 		$191.32 1
TO
000 11F1500CP
SHIM - VALVE LASH - 2.785 		$191.32 1
TO
000 11F1501CP
SHIM - VALVE LASH - 2.8 		$191.32 1
TO
000 11F1503CP
SHIM - VALVE LASH - 2.83 		$191.32 1
TO
000 11F1496CP
SHIM - VALVE LASH - 2.725 		$191.32 1
TO
000 11F1495CP
SHIM - VALVE LASH - 2.71 		$191.32 1
TO
000 11F1494CP
SHIM - VALVE LASH - 2.695 		$191.32 1
TO
000 11F1493CP
SHIM - VALVE LASH - 2.68 		$191.32 1
TO
010 11F1776CP
BOLT - M6X30 - HEX 		$10.14 6
TO
011 13F0341CP
VCT - EXHAUST - LH 		$649.93 1
TO
012 13F0343CP
VCT - INTAKE - RH 		$649.93 1
TO
013 13F0345CP
VCT - INTAKE - LH 		$548.37 1
TO
014 13F0347CP
VCT - EXHAUST - RH 		$548.37 1
TO

11F1685CP

BOLT - CYLINDER HEAD INC. WASHER

from $11.14

016 13F0812CP
CAP - HEAD BOLT 		$8.10 4
TO
017 11F0803CP
Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser 		$7.09 4
TO
018 11F2459CP
Solenoid - Engine Cam Phaser 		$201.40 4
TO
019 11F2636RP
Cylinder Head - Engine - Assy - RH - 675LT - Sports Series 		$10,765.64 1
TO
019 13F0549CP
CYL HD ASSY MC-RH 		$2,843.52 1
TO
020 11F1152CP
CAM COVER-RH 24 		$288.53 1
TO
021 11F1060CP
Mount - Anti-Vibration - Ignition Coil - Engine 		- 8
PE
 Enquire
022 11F1777CP
BOLT - M6X40 - HEX 		$4.65 4
TO
023 13FA049CP
Head Gasket Kit - Inc. Bolts - Engine - RH 		$385.87 1
TO
024 13FA048CP
Head Gasket Kit - Inc. Bolts - Engine - LH 		$385.87 1
TO
025 11F1153CP
CAM COVER-LH 24 		$288.53 1
TO
026 11F2635RP
Cylinder Head - Engine - Assy - LH - 675LT - Sports Series 		$10,765.64 1
TO
026 13F0548CP
CYL HD ASSY MC-LH 		$2,843.52 1
TO
027 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
029 11FA015CP
BOLT - VCT
Bolt - VCT; 		$55.84 4
TO
030 11F1459CP
INTAKE VALVE-STD 		$30.44 1
TO
031 11F1452CP
EXHAUST VALVE-STD 		$65.98 1
TO
032 11F1979CP
SEAL- VALVE STEM 		$13.18 1
TO
033 11F1975CP
Color codes: COLLET
Color codes: COLLET; 		$8.71 1
TO
035 11F1977CP
RETAINER SPRING 		$13.18 1
TO
036 11F2684CP
ROCKER MOUNTING 		$483.38 1
TO
037 11F1513CP
CAMSHAFT-EXHAUST-RH 		$483.38 1
TO
037 11F1166RP
CAMSHAFT-INLET RH 		$503.52 1
TO
038 11F1512CP
CAMSHAFT-EXHAUST-LH 		$483.38 1
TO
038 11F1123RP
CAMSHAFT-INLET LH 		$463.23 1
TO
039 11F0740CP
ENGINE CAM PHASE SENSOR 		$241.69 4
TO
