42 - Wiring Harness - 42.2 - Body Wiring Harness

McLaren 600LT

Find Your Part

McLaren 600LT - 42 - WIRING HARNESS - 42.2 - BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M1285CP NVH PAD - GROMMET - UPPER $40.26 To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $40.60 To Order
Photo Part No Description Price (each) Stock
13B0738CP BRACKET - VALVE BLOCK - NOSE LIFT $101.53 To Order
Photo Part No Description Price (each) Stock
11C0593CP TAPE ADHESIVE - COROPLAST - 837X - 19X100MM $35.54 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
13MA258CP HARNESS - BODY OCM LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA602 BOLT - M6X1X10 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA394 STUD - 316-M1/B23 - M5X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA179 SCREW - M6X10-10.9 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M1324CP EDGE CLIP TIE WRAP-RIGHT ANGLE Enquire To Order
Photo Part No Description Price (each) Stock
11M2517CP NVH PAD - GROMMET - LOWER - LHD $16.19 To Order
Photo Part No Description Price (each) Stock
00RB097 P-CLIP - DIA 25 - M6 Enquire To Order

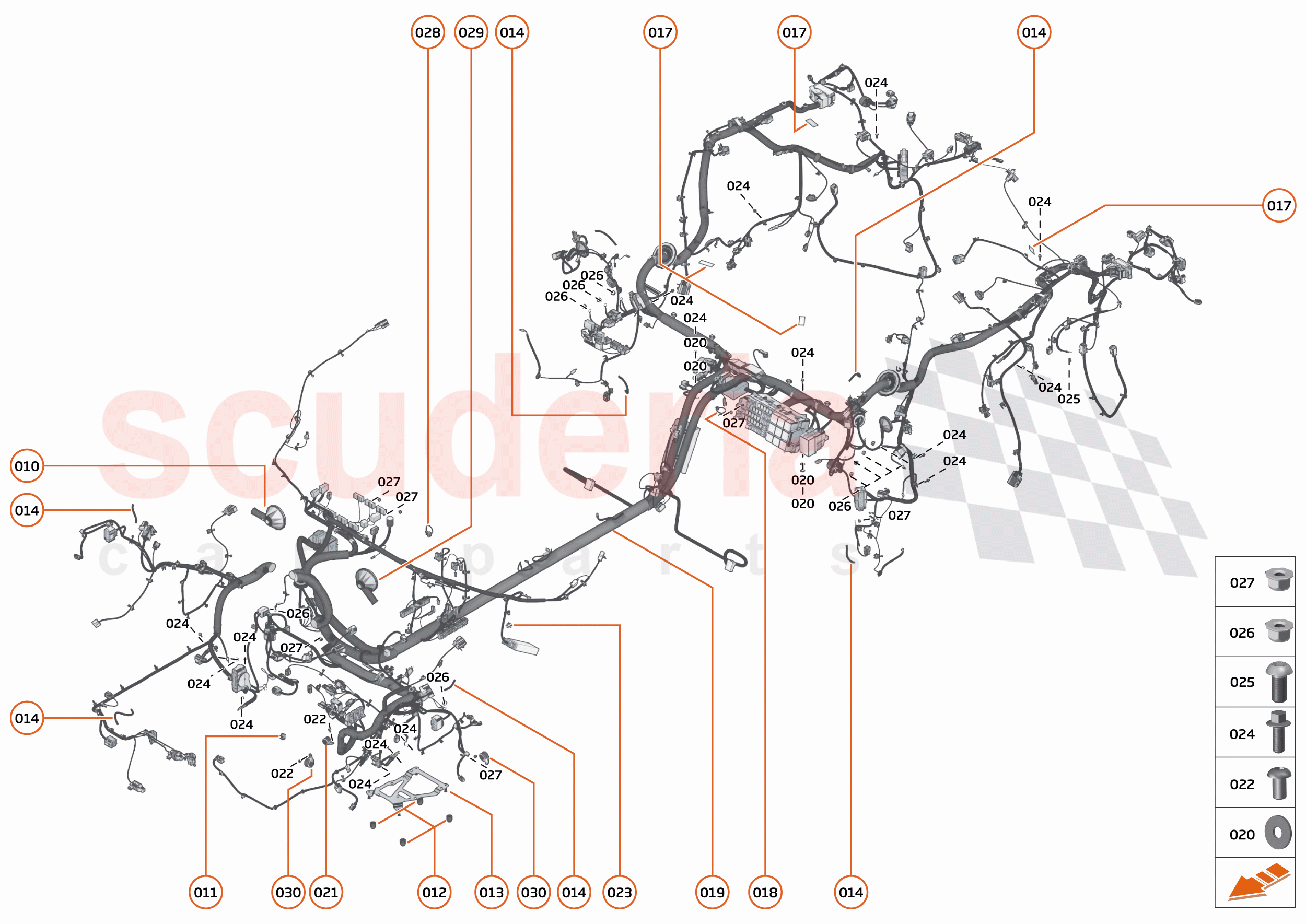

42 - WIRING HARNESS - 42.2 - BODY WIRING HARNESS of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M1285CP
NVH PAD - GROMMET - UPPER 		$40.26 1
TO
011 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 1
PE
 Enquire
012 11C0045CP
Mount - Anti-Vibration - Rubber 		$40.60 4
TO
013 13B0738CP
BRACKET - VALVE BLOCK - NOSE LIFT 		$101.53 1
TO
014 11C0593CP
TAPE ADHESIVE - COROPLAST - 837X - 19X100MM 		$35.54 7
TO
015 11M2507CP
BLANKING PLUG - APMU - MB229 		$2.80 1
TO
016 11M2508CP
BLANKING PLUG - APMU - MB230 		$3.61 1
TO
017 00RL004
FELT TAPE
FELT TAPE; 		- 4
PE
 Enquire
018 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
019 13MA258CP
HARNESS - BODY OCM LHD 		- 1
PE
 Enquire
020 00RC013
WASHER - M6X18X1.6 		- 4
PE
 Enquire
021 00RB060
P CLIP - DIA 20 		- 1
PE
 Enquire
022 00RA602
BOLT - M6X1X10 - TORX 		- 2
PE
 Enquire
023 00RA394
STUD - 316-M1/B23 - M5X12 		- 1
PE
 Enquire
024 00RA313
SCREW - M6X16 - HEX - SILVER 		- 16
PE
 Enquire
025 00RA179
SCREW - M6X10-10.9 - BUTTON 		- 1
PE
 Enquire
026 00RA075
NUT - M8-8 - HEX 		- 9
PE
 Enquire
027 00RA055
NUT - M6 - LOCKING - HEX 		- 5
PE
 Enquire
028 11M1324CP
EDGE CLIP TIE WRAP-RIGHT ANGLE 		- 1
PE
 Enquire
029 11M2517CP
NVH PAD - GROMMET - LOWER - LHD 		$16.19 1
TO
030 00RB097
P-CLIP - DIA 25 - M6 		- 2
PE
 Enquire
