McLaren 600LT - 29 - COOLING - HIGH TEMP - 29.2 - HIGH TEMP MAIN RADIATORS & FANS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11L0369CP BRACKET - RADIATOR MOUNTING - FORE - LOWER - LH $243.70 To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11L0370CP BRACKET - RADIATOR MOUNTING - FORE - LOWER - RH $243.70 To Order
Photo Part No Description Price (each) Stock
13L0205CP BRACKET - RADIATOR MOUNTING - UPPER - LH $50.76 To Order
Photo Part No Description Price (each) Stock
13L0206CP BRACKET - RADIATOR MOUNTING - UPPER - RH $50.76 To Order
Photo Part No Description Price (each) Stock
11L0371CP BRACKET - RADIATOR MOUNTING - AFT - LOWER - LH $121.84 To Order
Photo Part No Description Price (each) Stock
11L0372CP BRACKET - RADIATOR MOUNTING - AFT - LOWER - RH $121.84 To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RC074 SPACER - 6.5 X 12.7 X 6.4 Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA138 SCREW-TORX HEAD-DIA4X14-TF Enquire To Order
Photo Part No Description Price (each) Stock
11A2859CP CONDENSER - HVAC - LH $568.69 To Order
Photo Part No Description Price (each) Stock
11L0250CP SEAL - RADIATOR TO BODY - TOP $42.82 To Order
Photo Part No Description Price (each) Stock
11L0377CP SEAL - RADIATOR TO CONDENSER $65.44 To Order
Photo Part No Description Price (each) Stock
11L0378CP SEAL - RADIATOR TO BODY - FRONT $65.44 To Order
Photo Part No Description Price (each) Stock
11L0360CP RADIATOR - ENGINE COOLANT - LH $1,624.84 To Order
Photo Part No Description Price (each) Stock
11A7098CP CONDENSER - HVAC - RH $568.69 To Order
Photo Part No Description Price (each) Stock
11L0359CP RADIATOR - ENGINE COOLANT - RH $1,624.84 To Order
11L0376CP RADIATOR - ENGINE COOLANT - RH $1,624.84 To Order
Photo Part No Description Price (each) Stock
13L0207CP FLAP HOUSING - RADIATOR $172.62 To Order
Photo Part No Description Price (each) Stock
13LA114RP FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR $385.87 To Order

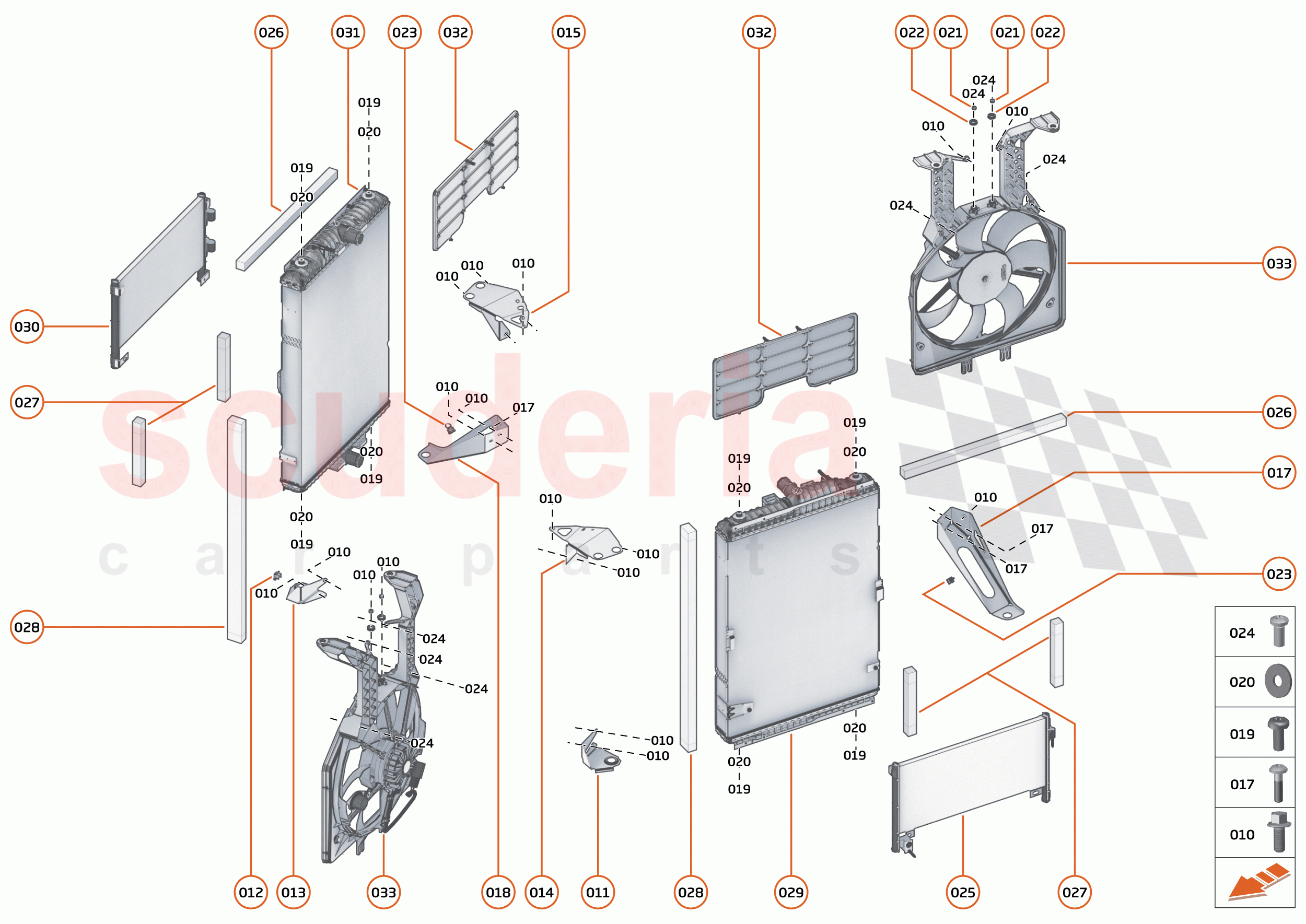

29 - COOLING - HIGH TEMP - 29.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 18
PE
 Enquire
011 11L0369CP
BRACKET - RADIATOR MOUNTING - FORE - LOWER - LH 		$243.70 1
TO
012 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 1
PE
 Enquire
013 11L0370CP
BRACKET - RADIATOR MOUNTING - FORE - LOWER - RH 		$243.70 1
TO
014 13L0205CP
BRACKET - RADIATOR MOUNTING - UPPER - LH 		$50.76 1
TO
015 13L0206CP
BRACKET - RADIATOR MOUNTING - UPPER - RH 		$50.76 1
TO
016 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 2
PE
 Enquire
017 11L0371CP
BRACKET - RADIATOR MOUNTING - AFT - LOWER - LH 		$121.84 1
TO
018 11L0372CP
BRACKET - RADIATOR MOUNTING - AFT - LOWER - RH 		$121.84 1
TO
019 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 8
PE
 Enquire
020 00RC043
WASHER - M6XOD25 		- 8
PE
 Enquire
021 00RC074
SPACER - 6.5 X 12.7 X 6.4 		- 4
PE
 Enquire
022 00RG011
GROMMET - DIA 19 - RUBBER 		- 4
PE
 Enquire
023 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 2
PE
 Enquire
024 00RA138
SCREW-TORX HEAD-DIA4X14-TF 		- 16
PE
 Enquire
025 11A2859CP
CONDENSER - HVAC - LH 		$568.69 1
TO
026 11L0250CP
SEAL - RADIATOR TO BODY - TOP 		$42.82 2
TO
027 11L0377CP
SEAL - RADIATOR TO CONDENSER 		$65.44 8
TO
028 11L0378CP
SEAL - RADIATOR TO BODY - FRONT 		$65.44 4
TO
029 11L0360CP
RADIATOR - ENGINE COOLANT - LH 		$1,624.84 1
TO
030 11A7098CP
CONDENSER - HVAC - RH 		$568.69 1
TO
031 11L0359CP
RADIATOR - ENGINE COOLANT - RH 		$1,624.84 1
TO
031 11L0376CP
RADIATOR - ENGINE COOLANT - RH 		$1,624.84 1
TO
032 13L0207CP
FLAP HOUSING - RADIATOR 		$172.62 2
TO
033 13LA114RP
FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR 		$385.87 2
TO
