27 - Fuel Tank - 27.2 - Fuel Tank Retention

McLaren 600LT

Find Your Part

McLaren 600LT - 27 - FUEL TANK - 27.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11K0107CP RETAINING STRAP - FUEL TANK - LH Enquire To Order
Photo Part No Description Price (each) Stock
11K0118CP RETAINING STRAP - FUEL TANK - RH Enquire To Order
Photo Part No Description Price (each) Stock
11K0135CP STUD PLATE - M6X33 - FUEL TANK $35.54 To Order
Photo Part No Description Price (each) Stock
13K0070CP PAD - FUEL TANK - REAR $13.18 To Order
Photo Part No Description Price (each) Stock
13K0073CP PAD - FUEL TANK - UPPER $40.60 To Order
Photo Part No Description Price (each) Stock
13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
13K0075CP PAD - FUEL TANK - BULKHEAD - UPPER $40.60 To Order
Photo Part No Description Price (each) Stock
13K0076CP PAD - FUEL TANK - CROSS MEMBER $15.21 To Order
Photo Part No Description Price (each) Stock
00RA257 BOLT-HEX SOCKET HD24AP-M6X55-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA580 SCREW - M6X1X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RG010 NUT PROTECTOR - M6 -REEVITE Enquire To Order
Photo Part No Description Price (each) Stock
11K0077CP Mounting Strap - Fuel Tank $50.76 To Order
Photo Part No Description Price (each) Stock
11K0102CP Spacer - Turnbuckle 8mm Long - Fuel Tank $30.44 To Order
Photo Part No Description Price (each) Stock
11K0105CP STUD PLATE - M6X18 - FUEL TANK $35.54 To Order
Photo Part No Description Price (each) Stock
11K0109CP Nut - Strap - Fuel Tank $13.18 To Order
Photo Part No Description Price (each) Stock
14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK $14.21 To Order
Photo Part No Description Price (each) Stock
11K0139CP Bracket - Fuel Tank Mounting - Tensioner $132.00 To Order
Photo Part No Description Price (each) Stock
13K0021CP BUSH STRAP - FUEL TANK $7.09 To Order
Photo Part No Description Price (each) Stock
13K0022CP Bracket - Fuel Tank - Lower $18.26 To Order

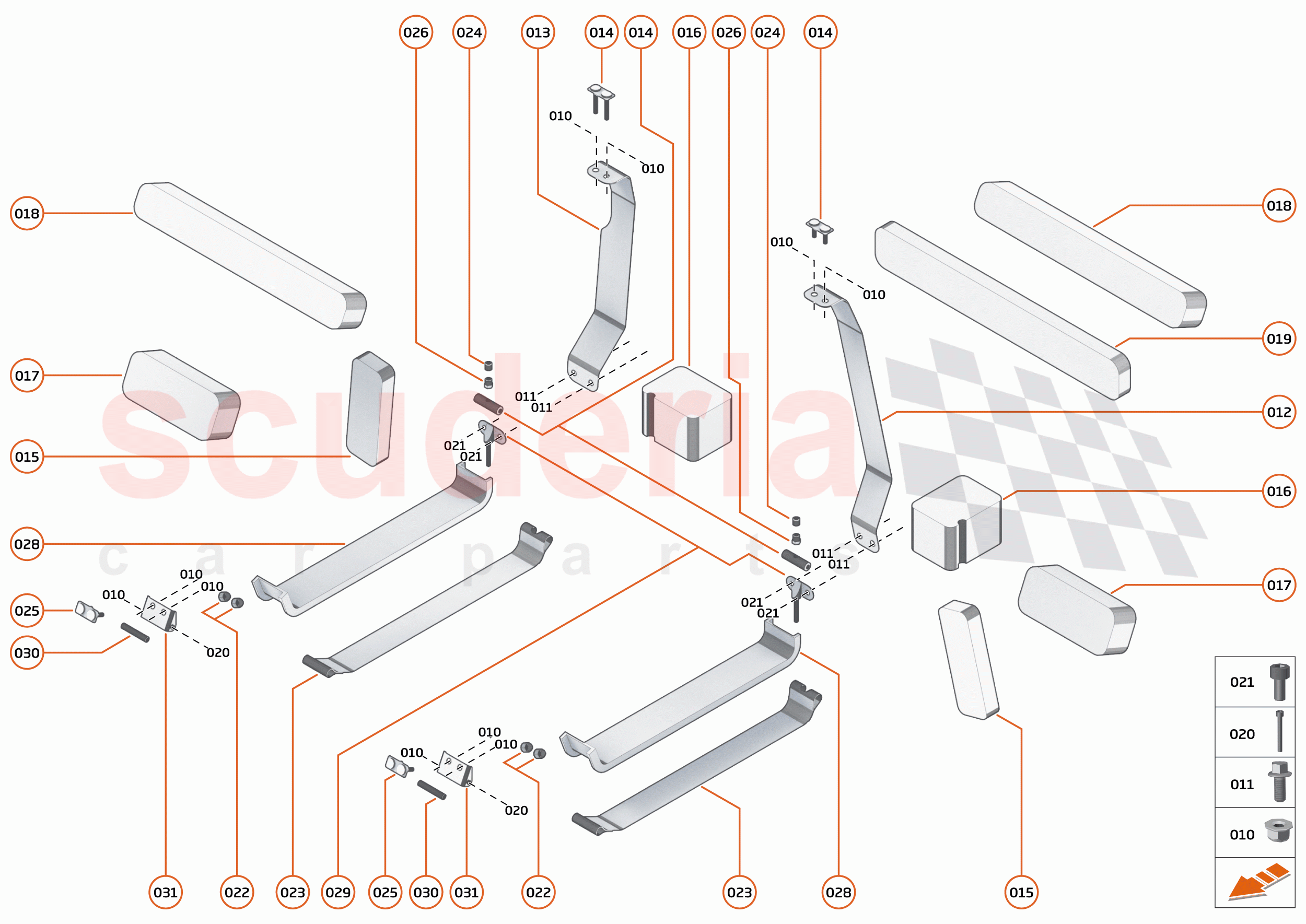

27 - FUEL TANK - 27.2 - FUEL TANK RETENTION of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX 		- 10
PE
 Enquire
011 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
012 11K0107CP
RETAINING STRAP - FUEL TANK - LH 		- 1
PE
 Enquire
013 11K0118CP
RETAINING STRAP - FUEL TANK - RH 		- 1
PE
 Enquire
014 11K0135CP
STUD PLATE - M6X33 - FUEL TANK 		$35.54 1
TO
015 13K0070CP
PAD - FUEL TANK - REAR 		$13.18 2
TO
016 13K0073CP
PAD - FUEL TANK - UPPER 		$40.60 1
TO
017 13K0074CP
PAD - FUEL TANK - BULKHEAD - LOWER 		- 2
PE
 Enquire
018 13K0075CP
PAD - FUEL TANK - BULKHEAD - UPPER 		$40.60 2
TO
019 13K0076CP
PAD - FUEL TANK - CROSS MEMBER 		$15.21 1
TO
020 00RA257
BOLT-HEX SOCKET HD24AP-M6X55-8 		- 2
PE
 Enquire
021 00RA580
SCREW - M6X1X16 		- 4
PE
 Enquire
022 00RG010
NUT PROTECTOR - M6 -REEVITE 		- 4
PE
 Enquire
023 11K0077CP
Mounting Strap - Fuel Tank 		$50.76 2
TO
024 11K0102CP
Spacer - Turnbuckle 8mm Long - Fuel Tank 		$30.44 2
TO
025 11K0105CP
STUD PLATE - M6X18 - FUEL TANK 		$35.54 3
TO
026 11K0109CP
Nut - Strap - Fuel Tank 		$13.18 2
TO
027 11K0110CP
Turnbuckle - Strap - Fuel Tank 		$35.54 2
TO
028 14KA046CP
MOUNTING STRAP - MOULDED - FUEL TANK 		$14.21 2
TO
029 11K0139CP
Bracket - Fuel Tank Mounting - Tensioner 		$132.00 2
TO
030 13K0021CP
BUSH STRAP - FUEL TANK 		$7.09 2
TO
031 13K0022CP
Bracket - Fuel Tank - Lower 		$18.26 2
TO
