McLaren 600LT - 24 - BRAKES - SYSTEMS - 24.3 - VACCUM SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
15CA134CP EVAC PUMP $584.08 To Order
Photo Part No Description Price (each) Stock
13CA190RP BRACKET - EVAC Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
13CA165RP VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD $182.12 To Order
13CA163RP VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD Enquire To Order
Photo Part No Description Price (each) Stock
13CA214RP HOSE - VACUUM PIPE $121.84 To Order
Photo Part No Description Price (each) Stock
00RB127 P-CLIP - 12/13 - EPDM Enquire To Order
Photo Part No Description Price (each) Stock
13CA206RP BRACKET - VAC HOSE TO - CROSS BRACE $38.14 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order

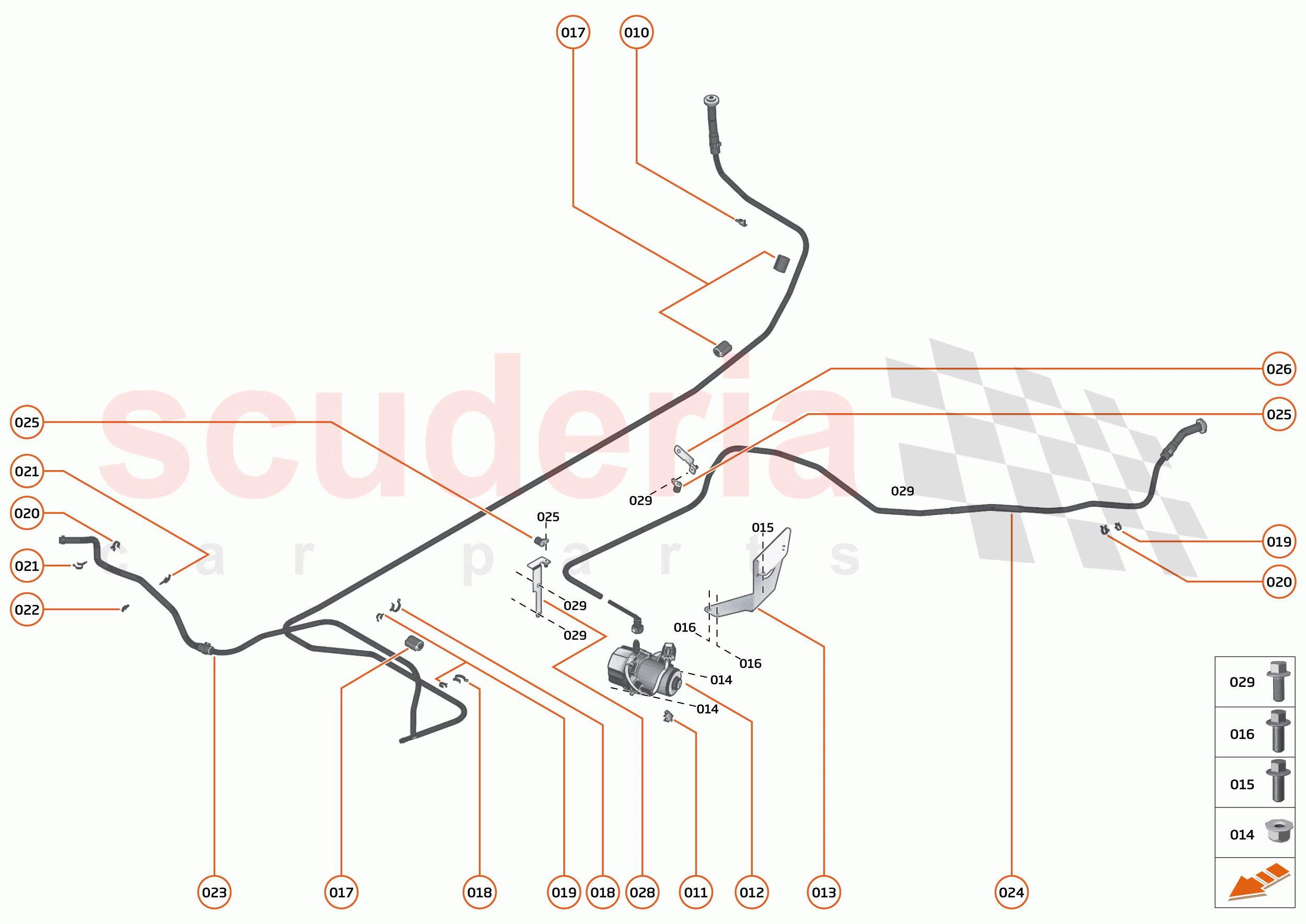

24 - BRAKES - SYSTEMS - 24.3 - VACCUM SYSTEM of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB059
CLIP CONNECTOR - TRW 		- 1
PE
 Enquire
011 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 1
PE
 Enquire
012 15CA134CP
EVAC PUMP
EVAC PUMP; 		$584.08 1
TO
013 13CA190RP
BRACKET - EVAC 		- 1
PE
 Enquire
014 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
015 00RA083
SCREW - M6X20 - FLANGE HEX 		- 1
PE
 Enquire
016 00RX001
BOLT - M5X16 - HEX 		- 2
PE
 Enquire
017 00RA366
PIPE PROTECTOR - 13MM ID 		- 6
PE
 Enquire
018 00RB007
CLIP - 18-20MM - FEMALE 		- 2
PE
 Enquire
019 00RB018
CLIP - 11-13MM - MALE 		- 3
PE
 Enquire
020 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
021 00RB034
CLIP - 14-15MM - MALE 		- 2
PE
 Enquire
022 00RB046
CLIP - 8-9MM - FEMALE 		- 1
PE
 Enquire
023 13CA165RP
VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD 		$182.12 1
TO
023 13CA163RP
VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD 		- 1
PE
 Enquire
024 13CA214RP
HOSE - VACUUM PIPE 		$121.84 1
TO
025 00RB127
P-CLIP - 12/13 - EPDM 		- 4
PE
 Enquire
026 13CA206RP
BRACKET - VAC HOSE TO - CROSS BRACE 		$38.14 1
TO
027 13CA207RP
BRACKET - VACUUM HOSE TO - REAR FRAME 		$40.60 1
TO
028 00RA313
SCREW - M6X16 - HEX - SILVER 		- 5
PE
 Enquire
