24 - Brakes - Systems - 24.2 - Brake Boost System

McLaren 600LT

Find Your Part

McLaren 600LT - 24 - BRAKES - SYSTEMS - 24.2 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA573 BOLT - M10X1 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13C0182CP BRACKET - ABS MODULATOR $60.42 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0430CP SENSOR - WHEEL SPEED - FRONT $201.40 To Order
Photo Part No Description Price (each) Stock
11M0432CP SENSOR - WHEEL SPEED - REAR $201.40 To Order
Photo Part No Description Price (each) Stock
14CA030CP BOLT - BRAKE BOOSTER - M8X184 $29.97 To Order
Photo Part No Description Price (each) Stock
13M0801CP VACUUM SENSOR WITH CHECK VALVE $75.52 To Order
Photo Part No Description Price (each) Stock
13CA216RP ASSY-BRAKE BOOSTER-26.9 $1,409.89 To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
00RE012 O-RING - BRACKET - BRAKE BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
14CA007CP BRACKET - BRAKE BOOSTER MOUNTING $223.40 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15MA186CP SENSOR - YAW RATE $324.96 To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $40.60 To Order
Photo Part No Description Price (each) Stock
13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED $1,726.40 To Order

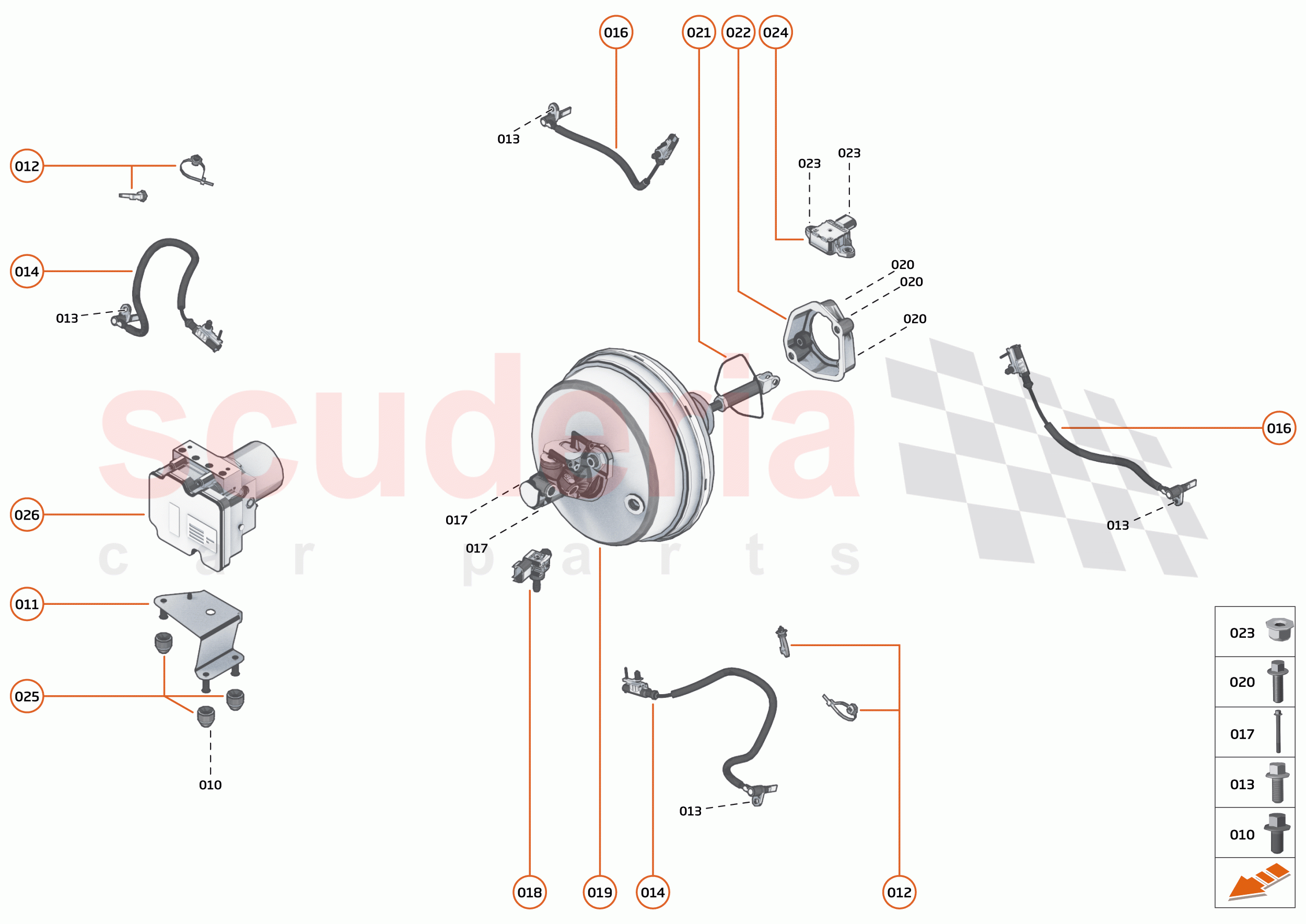

24 - BRAKES - SYSTEMS - 24.2 - BRAKE BOOST SYSTEM of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA573
BOLT - M10X1 - HEX 		- 1
PE
 Enquire
011 13C0182CP
BRACKET - ABS MODULATOR 		$60.42 1
TO
012 00RL001
CABLE TIE - FIRTREE BASE 		- 4
PE
 Enquire
013 00RX003
BOLT - M6X1X12 - HEX 		- 4
PE
 Enquire
014 11M0430CP
SENSOR - WHEEL SPEED - FRONT 		$201.40 1
TO
015 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$50.76 1
TO
016 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$201.40 1
TO
017 14CA030CP
BOLT - BRAKE BOOSTER - M8X184 		$29.97 4
TO
018 13M0801CP
VACUUM SENSOR WITH CHECK VALVE 		$75.52 1
TO
019 13CA216RP
ASSY-BRAKE BOOSTER-26.9 		$1,409.89 1
TO
020 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 6
PE
 Enquire
021 00RE012
O-RING - BRACKET - BRAKE BOOSTER 		- 2
PE
 Enquire
022 14CA007CP
BRACKET - BRAKE BOOSTER MOUNTING 		$223.40 1
TO
023 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
024 15MA186CP
SENSOR - YAW RATE 		$324.96 1
TO
025 11C0045CP
Mount - Anti-Vibration - Rubber 		$40.60 3
TO
026 13C0205CP
ABS MODULATOR 46 PIN EUCON - PRE-FILLED 		$1,726.40 1
TO
