19 - Suspension - Systems - 19.1 - Suspension Fluid Systems

McLaren 600LT

Find Your Part

McLaren 600LT - 19 - SUSPENSION - SYSTEMS - 19.1 - SUSPENSION FLUID SYSTEMS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
13B0737CP VALVE BLOCK - NOSE LIFT $1,096.76 To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
11B1107CP Bracket - Pipe - Suspension - Nose Lift $50.76 To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
13BA356RP HOSE - SUSPENSION - FRONT - NOSELIFT-RHD $149.29 To Order
13BA349RP HOSE - SUSPENSION - FRONT - NOSELIFT-LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB022 Clip - 4-4.8mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
13BA349RP HOSE - SUSPENSION - FRONT - NOSELIFT-LHD Enquire To Order
Photo Part No Description Price (each) Stock
13B0738CP BRACKET - VALVE BLOCK - NOSE LIFT $101.53 To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $40.60 To Order
Photo Part No Description Price (each) Stock
11B1104CP Clip - Single - DIA 10mm - Moulded $18.26 To Order

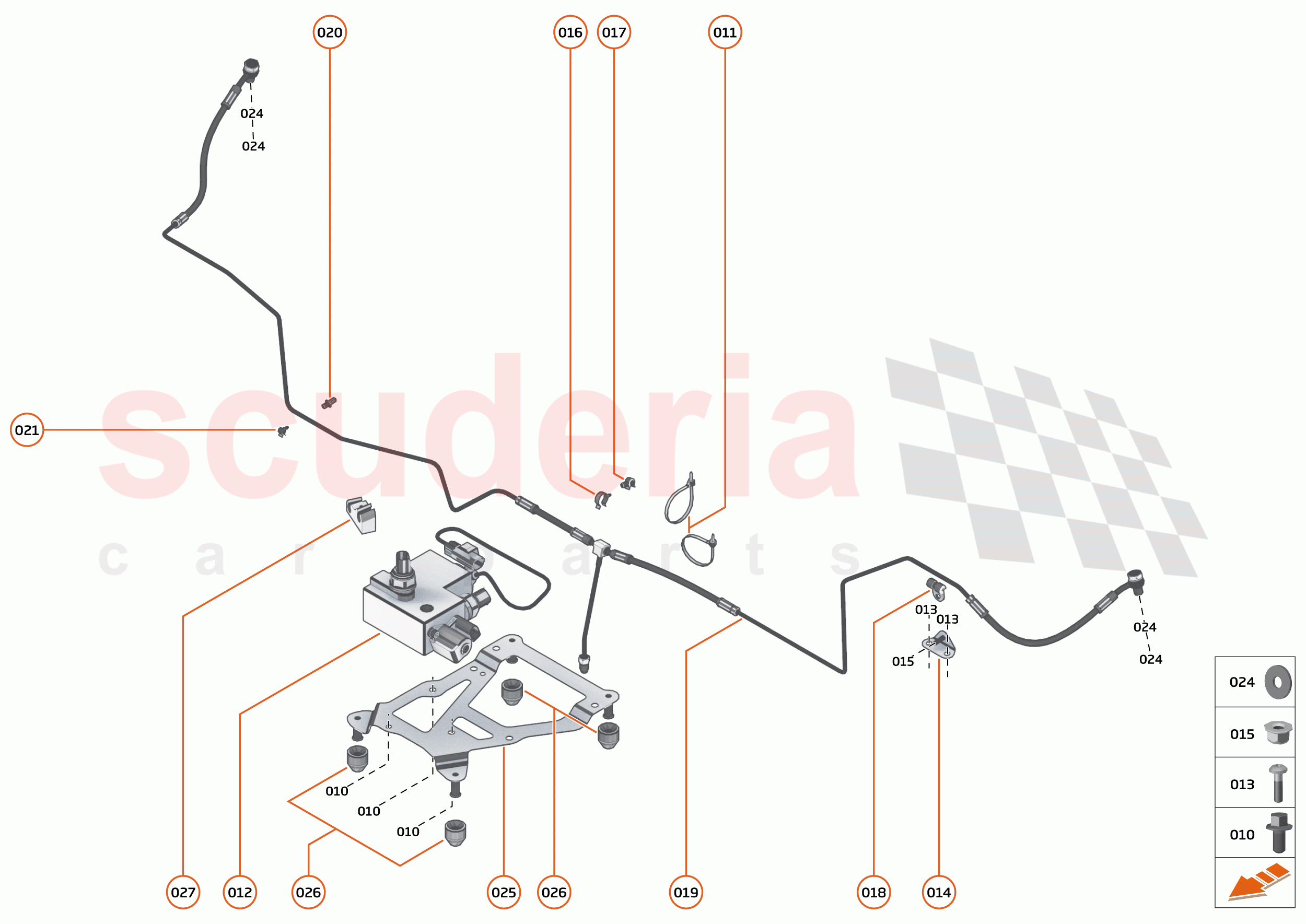

19 - SUSPENSION - SYSTEMS - 19.1 - SUSPENSION FLUID SYSTEMS of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA064
BOLT - M5X12 - HEX 		- 3
PE
 Enquire
011 00RL012
CABLE TIE - 300X4.6MM 		- 2
PE
 Enquire
012 13B0737CP
VALVE BLOCK - NOSE LIFT 		$1,096.76 1
TO
013 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 2
PE
 Enquire
014 11B1107CP
Bracket - Pipe - Suspension - Nose Lift 		$50.76 1
TO
015 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 2
PE
 Enquire
016 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
017 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 1
PE
 Enquire
018 00RB063
P CLIP - DIA 6 (M6) 		- 2
PE
 Enquire
019 13BA356RP
HOSE - SUSPENSION - FRONT - NOSELIFT-RHD 		$149.29 1
TO

13BA349RP

HOSE - SUSPENSION - FRONT - NOSELIFT-LHD

 -
020 00RB022
Clip - 4-4.8mm - Female 		- 1
PE
 Enquire
021 00RB045
CLIP - 9.5-10MM - MALE 		- 1
PE
 Enquire
022 00RB046
CLIP - 8-9MM - FEMALE 		- 1
PE
 Enquire
023 00RB042
SWIVEL PIPE CLIP 		- 1
PE
 Enquire
025 13B0738CP
BRACKET - VALVE BLOCK - NOSE LIFT 		$101.53 1
TO
026 11C0045CP
Mount - Anti-Vibration - Rubber 		$40.60 4
TO
027 11B1104CP
Clip - Single - DIA 10mm - Moulded 		$18.26 1
TO
