4 - Floors - 4.2 - Rear Structural Floors

McLaren 600LT

Find Your Part

McLaren 600LT - 4 - FLOORS - 4.2 - REAR STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA392 BOLT - HEX HEAD - TUFLOK - M6X20 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
14A4666CP NVH FOAM - FLOOR PANEL - TRANSMISSION $70.46 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA127 SCREW - M6X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA181 SCREW - M6X12-8.8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RM004 RIVET - 3.28.X 8MM - BOLLHOFF Enquire To Order
Photo Part No Description Price (each) Stock
11A3815CP COOLING FLIP - ENGINE BAY FLOOR $85.58 To Order
Photo Part No Description Price (each) Stock
13AB885RP ASSY-PANEL-ENGINE BAY-FLOOR $345.26 To Order
Photo Part No Description Price (each) Stock
13A4001CP FOAM - FLOOR PANEL - ENGINE/FUEL TANK - OUTER-LH $3.61 To Order
Photo Part No Description Price (each) Stock
13A4002CP FOAM - FLOOR PANEL - ENGINE/FUEL TANK - INNER $6.23 To Order
Photo Part No Description Price (each) Stock
13A4003CP FOAM - FLOOR PANEL - ENGINE/FUEL TANK - CENTRE $5.43 To Order
Photo Part No Description Price (each) Stock
13A4147CP FOAM - FLOOR PANEL - ENGINE/FUEL TANK - OUTER-RH $9.66 To Order

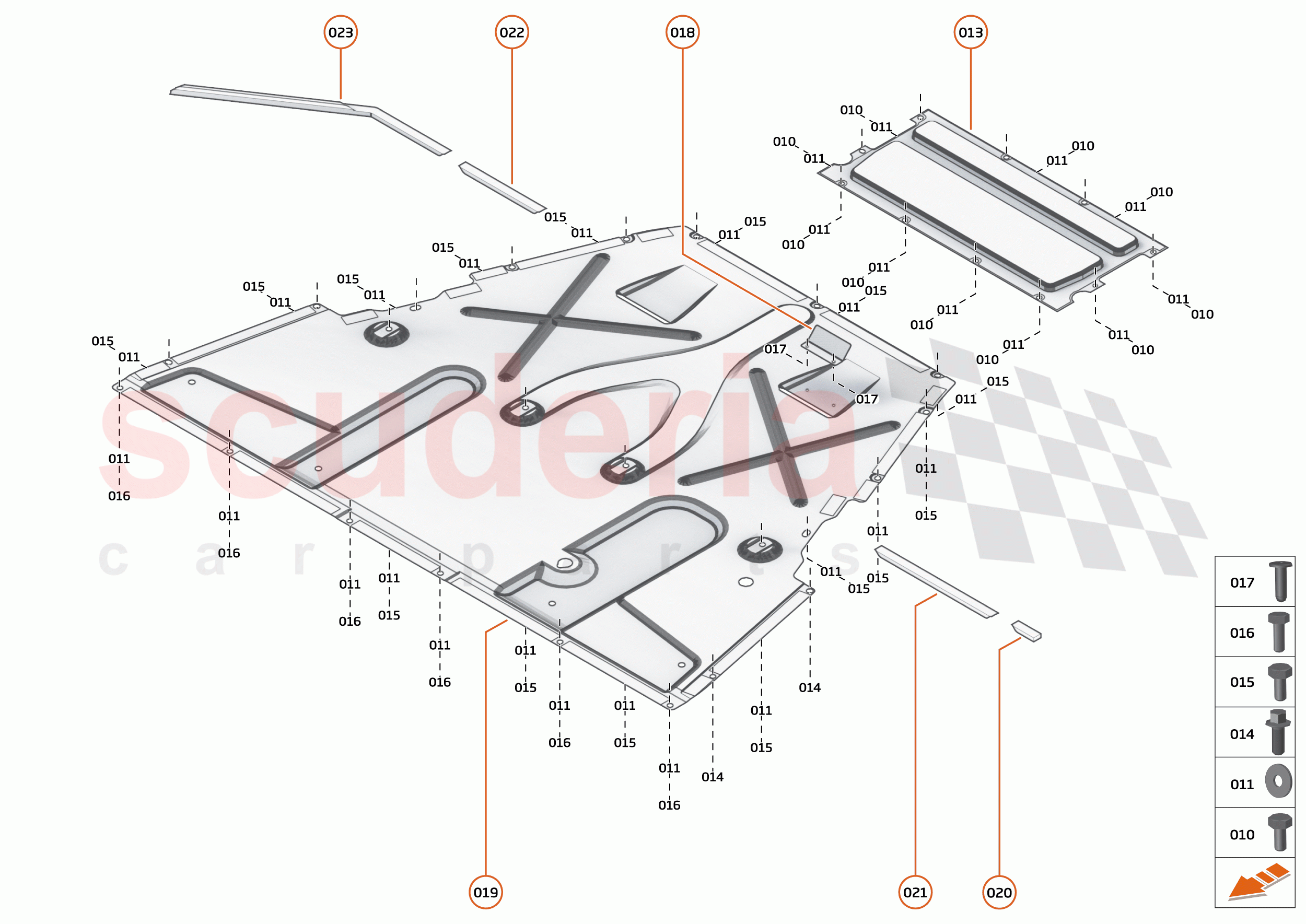

4 - FLOORS - 4.2 - REAR STRUCTURAL FLOORS of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA392
BOLT - HEX HEAD - TUFLOK - M6X20 - 8.8
Superseded parts: 00RA600; 		- 10
PE
 Enquire
011 00RC013
WASHER - M6X18X1.6 		- 29
PE
 Enquire
012 14A0076CP
FLOOR PANEL - TRANSMISSION 		$151.05 1
TO
013 14A4666CP
NVH FOAM - FLOOR PANEL - TRANSMISSION 		$70.46 1
TO
014 00RA002
BOLT - M8X20 - HEX 		- 4
PE
 Enquire
015 00RA127
SCREW - M6X20 - HEX 		- 13
PE
 Enquire
016 00RA181
SCREW - M6X12-8.8 - HEX 		- 6
PE
 Enquire
017 00RM004
RIVET - 3.28.X 8MM - BOLLHOFF 		- 2
PE
 Enquire
018 11A3815CP
COOLING FLIP - ENGINE BAY FLOOR 		$85.58 1
TO
019 13AB885RP
ASSY-PANEL-ENGINE BAY-FLOOR 		$345.26 1
TO
020 13A4001CP
FOAM - FLOOR PANEL - ENGINE/FUEL TANK - OUTER-LH 		$3.61 1
TO
021 13A4002CP
FOAM - FLOOR PANEL - ENGINE/FUEL TANK - INNER 		$6.23 1
TO
022 13A4003CP
FOAM - FLOOR PANEL - ENGINE/FUEL TANK - CENTRE 		$5.43 1
TO
023 13A4147CP
FOAM - FLOOR PANEL - ENGINE/FUEL TANK - OUTER-RH 		$9.66 1
TO
