6 - Closures - 6.9 - Side Mirrors

McLaren 600LT

Find Your Part

McLaren 600LT - 6 - CLOSURES - 6.9 - SIDE MIRRORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
13AA570CP DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH $4,108.14 To Order
13AA552CP DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-RH Enquire To Order
13AA564CP DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA599 SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RA374 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA442 SCREW - TORX - 3X38 Enquire To Order
Photo Part No Description Price (each) Stock
00RA491 SCREW - TORX - 3X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
11A8442CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH Enquire To Order
11A8438CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH Enquire To Order
11A8430CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA525 SCREW - POZI - 2.5X8MM Enquire To Order
Photo Part No Description Price (each) Stock
11A8451CP Scalp - Painted - LH $75.52 To Order

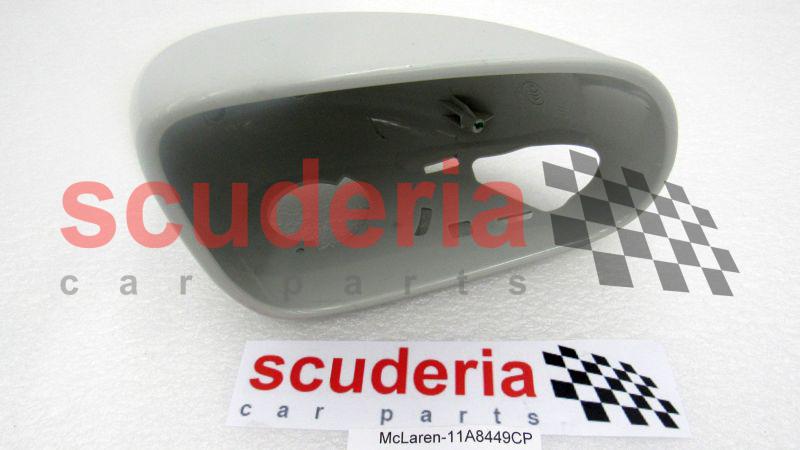

11A8449CP Scalp - Painted - RH $75.52 To Order
Photo Part No Description Price (each) Stock
11A8454CP FRAME - DOOR MIRROR GLASS - LH $100.68 To Order
11A8453CP FRAME - DOOR MIRROR GLASS - RH $100.68 To Order
Photo Part No Description Price (each) Stock
11A8456CP MOTOR - DOOR MIRROR GLASS - LH $130.89 To Order
11A8455CP MOTOR - DOOR MIRROR GLASS - RH $130.89 To Order
Photo Part No Description Price (each) Stock
13A2049CP COVER - DOOR MIRROR BASE - LOWER - LH $40.26 To Order
13A2055CP COVER - DOOR MIRROR BASE - LOWER - RH $40.26 To Order
Photo Part No Description Price (each) Stock
13A2052CP WIRING HARNESS - DOOR MIRROR - LH $120.83 To Order
13A2058CP WIRING HARNESS - DOOR MIRROR - RH $120.83 To Order
Photo Part No Description Price (each) Stock
13A4869CP SEAL - DOOR MIRROR - MOUNT - LH $45.68 To Order
13A4871CP SEAL - DOOR MIRROR - MOUNT - RH $45.68 To Order
Photo Part No Description Price (each) Stock
13A4872CP BASE COVER - DOOR MIRROR - UPPER - LH $50.34 To Order

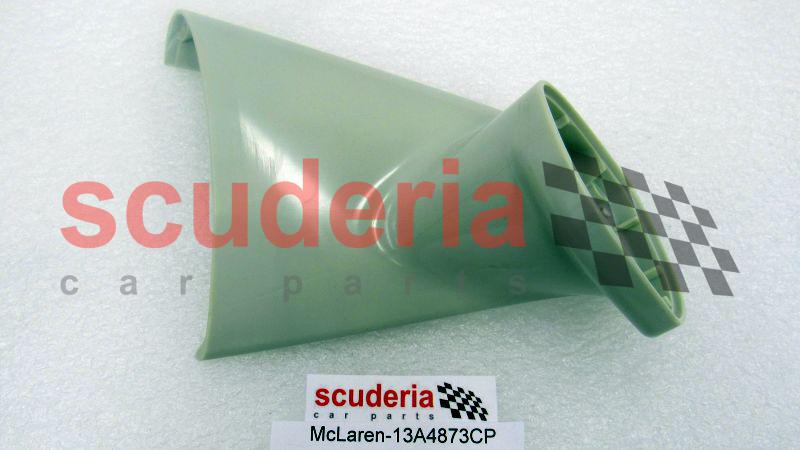

13A4873CP BASE COVER - DOOR MIRROR - UPPER - RH $50.34 To Order
Photo Part No Description Price (each) Stock
13A4912CP INTERNAL ARM - DOOR MIRROR - LH $171.18 To Order

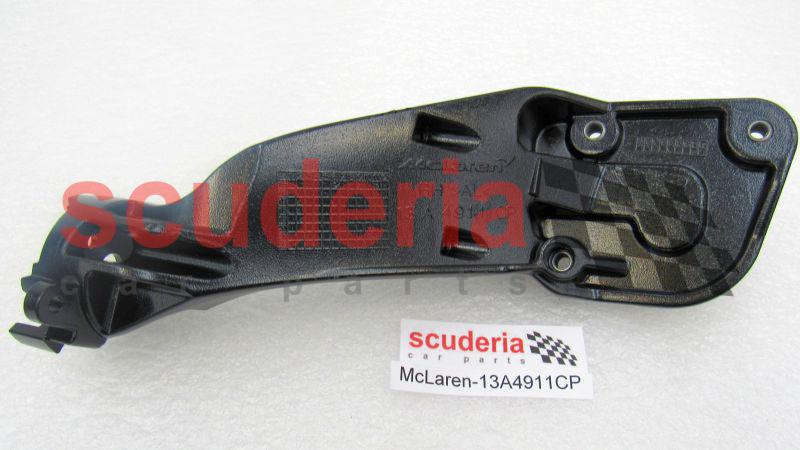

13A4911CP INTERNAL ARM - DOOR MIRROR - RH $171.18 To Order
Photo Part No Description Price (each) Stock
13A4868CP SEAL - DOOR MIRROR - GASKET - LOWER - LH $35.54 To Order
13A4870CP SEAL - DOOR MIRROR - GASKET - LOWER - RH $35.54 To Order
Photo Part No Description Price (each) Stock
11A6480CP Side Repeater - Mirror Mounted - LH $675.32 To Order
11A6479CP Side Repeater - Mirror Mounted - RH $1,489.70 To Order
Photo Part No Description Price (each) Stock
11A8417CP SCALP - LOWER - UNPAINTED - LH $60.42 To Order
11A8416CP SCALP - LOWER - UNPAINTED - RH $60.42 To Order
Photo Part No Description Price (each) Stock
118446CP ACTUATOR - DOOR MIRROR GLASS Enquire To Order

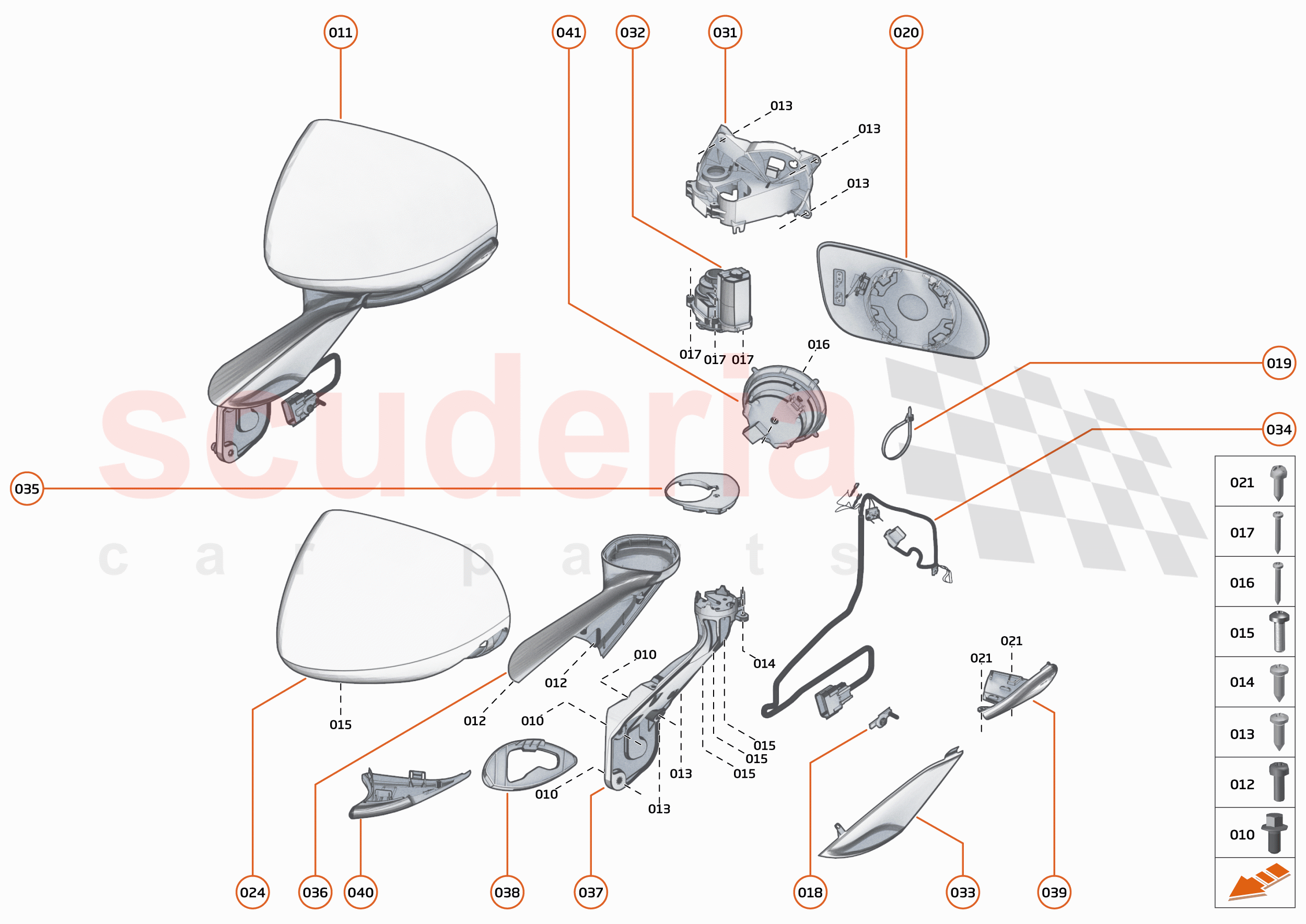

6 - CLOSURES - 6.9 - SIDE MIRRORS of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 6
PE
 Enquire
011 13AA570CP
DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH 		$4,108.14 1
TO
011 13AA552CP
DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-RH 		- 1
PE
 Enquire
011 13AA564CP
DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH 		- 1
PE
 Enquire
011 13AA558CP
DOOR MIRROR - COMPLETE - UNPAINTED - CHINAONLY-LH 		$684.79 1
TO
012 00RA140
SCREW - 3X8 - TORX 		- 4
PE
 Enquire
013 00RA363
SCREW - TORX - 4X12 		- 12
PE
 Enquire
014 00RA599
SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 		- 2
PE
 Enquire
015 00RA374
SCREW - TORX - 3.5X12 		- 8
PE
 Enquire
016 00RA442
SCREW - TORX - 3X38 		- 2
PE
 Enquire
017 00RA491
SCREW - TORX - 3X20 		- 6
PE
 Enquire
018 00RB059
CLIP CONNECTOR - TRW 		- 2
PE
 Enquire
019 00RL023
CABLE TIE - HIGH TEMP 		- 2
PE
 Enquire
020 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH 		- 1
PE
 Enquire
020 11A8438CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH 		- 1
PE
 Enquire
020 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH 		- 1
PE
 Enquire
020 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH 		$334.68 1
TO
020 11A8434CP
MIRROR GLASS ASSEMBLY - CONVEX - LH 		$334.68 1
TO
020 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH 		- 1
PE
 Enquire
021 00RA525
SCREW - POZI - 2.5X8MM 		- 4
PE
 Enquire
024 11A8451CP
Scalp - Painted - LH 		$75.52 1
TO
024 11A8449CP
Scalp - Painted - RH 		$75.52 1
TO
031 11A8454CP
FRAME - DOOR MIRROR GLASS - LH 		$100.68 1
TO
031 11A8453CP
FRAME - DOOR MIRROR GLASS - RH 		$100.68 1
TO
032 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH 		$130.89 1
TO
032 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH 		$130.89 1
TO
033 13A2049CP
COVER - DOOR MIRROR BASE - LOWER - LH 		$40.26 1
TO
033 13A2055CP
COVER - DOOR MIRROR BASE - LOWER - RH 		$40.26 1
TO
034 13A2052CP
WIRING HARNESS - DOOR MIRROR - LH 		$120.83 1
TO
034 13A2058CP
WIRING HARNESS - DOOR MIRROR - RH 		$120.83 1
TO
035 13A4869CP
SEAL - DOOR MIRROR - MOUNT - LH 		$45.68 1
TO
035 13A4871CP
SEAL - DOOR MIRROR - MOUNT - RH 		$45.68 1
TO
036 13A4872CP
BASE COVER - DOOR MIRROR - UPPER - LH 		$50.34 1
TO
036 13A4873CP
BASE COVER - DOOR MIRROR - UPPER - RH 		$50.34 1
TO
037 13A4912CP
INTERNAL ARM - DOOR MIRROR - LH 		$171.18 1
TO
037 13A4911CP
INTERNAL ARM - DOOR MIRROR - RH 		$171.18 1
TO
038 13A4868CP
SEAL - DOOR MIRROR - GASKET - LOWER - LH 		$35.54 1
TO
038 13A4870CP
SEAL - DOOR MIRROR - GASKET - LOWER - RH 		$35.54 1
TO
039 11A6480CP
Side Repeater - Mirror Mounted - LH 		$675.32 1
TO
039 11A6479CP
Side Repeater - Mirror Mounted - RH 		$1,489.70 1
TO
040 11A8417CP
SCALP - LOWER - UNPAINTED - LH 		$60.42 1
TO
040 11A8416CP
SCALP - LOWER - UNPAINTED - RH 		$60.42 1
TO
041 118446CP
ACTUATOR - DOOR MIRROR GLASS 		- 2
PE
 Enquire
