17 - SUSPENSION - FRONT - 17.2 - UPRIGHTS FRONT of McLaren McLaren 570S Spider

McLaren 570S Spider - 17 - SUSPENSION - FRONT - 17.2 - UPRIGHTS FRONT

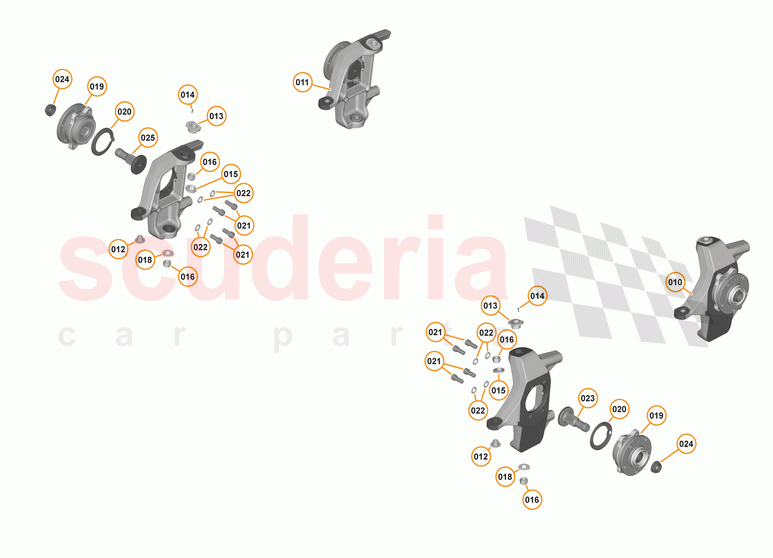

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13BA203CP	Upright - Suspension - Front - LH - Coupe	$2,255.84	To Order
	13BA191CP	Upright - Suspension - Front - LH - Coupe	Enquire	To Order
	13BA203CP	Upright - Suspension - Front - LH - Coupe	$2,255.84	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13BA204CP	Upright - Suspension - Front - RH - Coupe	$2,255.84	To Order
	13BA192CP	Upright - Suspension - Front - RH - Coupe	Enquire	To Order
	13BA204CP	Upright - Suspension - Front - RH - Coupe	$2,255.84	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	$30.44	To Order
	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0541CP	Tophat - Camber Adjustment	$65.98	To Order
	11B0541CP	Tophat - Camber Adjustment	$65.98	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0993CP	Screw - M3x12 - Hex	$2.17	To Order
	11B0993CP	Screw - M3x12 - Hex	$2.17	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0739CP	Washer - Camber Adjustment	$45.68	To Order
	11B0739CP	Washer - Camber Adjustment	$45.68	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA229	Nut - M14x1.5 - Locked Hex	Enquire	To Order
	00RA229	Nut - M14x1.5 - Locked Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0320CP	Washer - DIA 35x3.9x14.5	$13.18	To Order
	11B0320CP	Washer - DIA 35x3.9x14.5	$13.18	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0322CP	Wheel Hub Assy - Bearing	$649.93	To Order
	13BA350RP	WHEEL HUB ASSY - BEARING	$491.14	To Order
	11B0322CP	Wheel Hub Assy - Bearing	$649.93	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11B0630CP	Protector Cap - Hub	$30.01	To Order
	11B0630CP	Protector Cap - Hub	$30.01	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0595CP	Bolt - M12x30 - Hex	$40.60	To Order
	11B0595CP	Bolt - M12x30 - Hex	$40.60	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0596CP	Washer - M12x23x2	$35.54	To Order
	11B0596CP	Washer - M12x23x2	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	14B0373CP	Stub Axle - Front	$121.84	To Order
	14B0373CP	Stub Axle - Front	$121.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0566CP	NUT - M26 - 12POINT - HEX	$12.17	To Order
	11B0566CP	NUT - M26 - 12POINT - HEX	$12.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14B0373CP	Stub Axle - Front	$121.84	To Order
	14B0373CP	Stub Axle - Front	$121.84	To Order

Diagram Tap to enlarge

	#	Part Description	Part Details
	13BA203CP	UPRIGHT - SUSPENSION - FRONT - LH - COUPE	from $2,255.84
010 Upright - Suspension - Front - LH - Coupe $2,255.84 1 TO 010 Upright - Suspension - Front - LH - Coupe $2,255.84 1 TO
	13BA191CP	UPRIGHT - SUSPENSION - FRONT - LH - COUPE	-
010 Upright - Suspension - Front - LH - Coupe - 1 PE Enquire 010 Upright - Suspension - Front - LH - Coupe - 1 PE Enquire
	13BA204CP	UPRIGHT - SUSPENSION - FRONT - RH - COUPE	from $2,255.84
011 Upright - Suspension - Front - RH - Coupe $2,255.84 1 TO 011 Upright - Suspension - Front - RH - Coupe $2,255.84 1 TO
	13BA192CP	UPRIGHT - SUSPENSION - FRONT - RH - COUPE	-
011 Upright - Suspension - Front - RH - Coupe - 1 PE Enquire 011 Upright - Suspension - Front - RH - Coupe - 1 PE Enquire
	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	from $30.44
012 TOPHAT - TRACKROD - 1.6 TAPER $30.44 2 TO 012 TOPHAT - TRACKROD - 1.6 TAPER $30.44 2 TO
	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	from $65.98
013 Tophat - Camber Adjustment $65.98 2 TO 013 Tophat - Camber Adjustment $65.98 2 TO
	11B0993CP	SCREW - M3X12 - HEX	from $2.17
014 Screw - M3x12 - Hex $2.17 2 TO 014 Screw - M3x12 - Hex $2.17 2 TO
	11B0739CP	WASHER - CAMBER ADJUSTMENT	from $45.68
015 Washer - Camber Adjustment $45.68 2 TO 015 Washer - Camber Adjustment $45.68 2 TO
	00RA229	NUT - M14X1.5 - LOCKED HEX	-
016 Nut - M14x1.5 - Locked Hex - 4 PE Enquire 016 Nut - M14x1.5 - Locked Hex - 4 PE Enquire
	11B0320CP	WASHER - DIA 35X3.9X14.5	from $13.18
018 Washer - DIA 35x3.9x14.5 $13.18 2 TO 018 Washer - DIA 35x3.9x14.5 $13.18 2 TO
	11B0322CP	WHEEL HUB ASSY - BEARING	from $649.93
019 Wheel Hub Assy - Bearing $649.93 2 TO 019 Wheel Hub Assy - Bearing $649.93 2 TO
	13BA350RP	WHEEL HUB ASSY - BEARING	from $491.14
019 WHEEL HUB ASSY - BEARING $491.14 2 TO 019 WHEEL HUB ASSY - BEARING $491.14 2 TO
	11B0630CP	PROTECTOR CAP - HUB	from $30.01
020 Protector Cap - Hub $30.01 2 TO 020 Protector Cap - Hub $30.01 2 TO
	11B0595CP	BOLT - M12X30 - HEX	from $40.60
021 Bolt - M12x30 - Hex $40.60 8 TO 021 Bolt - M12x30 - Hex $40.60 8 TO
	11B0596CP	WASHER - M12X23X2	from $35.54
022 Washer - M12x23x2 $35.54 8 TO 022 Washer - M12x23x2 $35.54 8 TO
	14B0373CP	STUB AXLE - FRONT	from $121.84
023 Stub Axle - Front $121.84 2 TO 023 Stub Axle - Front $121.84 2 TO 025 Stub Axle - Front $121.84 2 TO 025 Stub Axle - Front $121.84 2 TO
	11B0566CP	NUT - M26 - 12POINT - HEX	from $12.17
024 NUT - M26 - 12POINT - HEX $12.17 2 TO 024 NUT - M26 - 12POINT - HEX $12.17 2 TO
