McLaren 570S Spider

Find Your Part

McLaren 570S Spider - 7 - OPENING ROOF SYSTEMS - 7.3 - CONVERTIBLE ROOF (RHT) - TONNEAU COVER

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4007SP RHT - Hinge -Tonneau Assy - Kit LH & RH $934.29 To Order
Photo Part No Description Price (each) Stock
11A4015SP RHT - Striker - Tonneau Cover - Kit $443.10 To Order
Photo Part No Description Price (each) Stock
11A4049SP RHT - Buffer Latch - Tonneau Cover $60.90 To Order
Photo Part No Description Price (each) Stock
13AA324SP SHIM - KINEMATIC - 1.0MM $1.53 To Order
13AA313SP Shim - Kinematic - 0.5mm $3.43 To Order
Photo Part No Description Price (each) Stock
13AA312SP SHIM - HINGE - 1.0MM $1.12 To Order
Photo Part No Description Price (each) Stock
11A2351SP SHIM PLATE PACK - TONNEAU 2-HOLE - SPIDER $10.48 To Order
Photo Part No Description Price (each) Stock
11A6363SP BOLT - TONNEAU ARM $32.31 To Order
Photo Part No Description Price (each) Stock
11A6364SP SPRING CLIP - TONNEAU ARM $3.03 To Order
Photo Part No Description Price (each) Stock
11A4043SP Striker - RHT - Down Stack Complete $503.52 To Order
Photo Part No Description Price (each) Stock
00RB127 P-CLIP - 12/13 - EPDM Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA429 SCREW - WASHER - M8X24 - BUTTON-HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4048SP RHT - Down Stack Buffer - Roof - Front $76.15 To Order
Photo Part No Description Price (each) Stock
13AA314SP SHIM - DOG BONE $17.07 To Order
Photo Part No Description Price (each) Stock
13AA611SP ASSY TONNEAU COVER $14,703.35 To Order
Photo Part No Description Price (each) Stock
11A6570SP LINKAGE - TONNEAU COVER - LH $906.35 To Order
Photo Part No Description Price (each) Stock
11A6571SP LINKAGE - TONNEAU COVER - RH $906.35 To Order
Photo Part No Description Price (each) Stock
13AA052SP Assy Fin - Tonneau Cover - LH Enquire To Order
Photo Part No Description Price (each) Stock
13AA056SP Assy Fin - Tonneau Cover - RH Enquire To Order
Photo Part No Description Price (each) Stock
13AA222SP LINER - TONNEAU COMPARTMENT - LH $12.17 To Order
Photo Part No Description Price (each) Stock
13AA226SP LINER - TONNEAU COMPARTMENT - RH $12.17 To Order

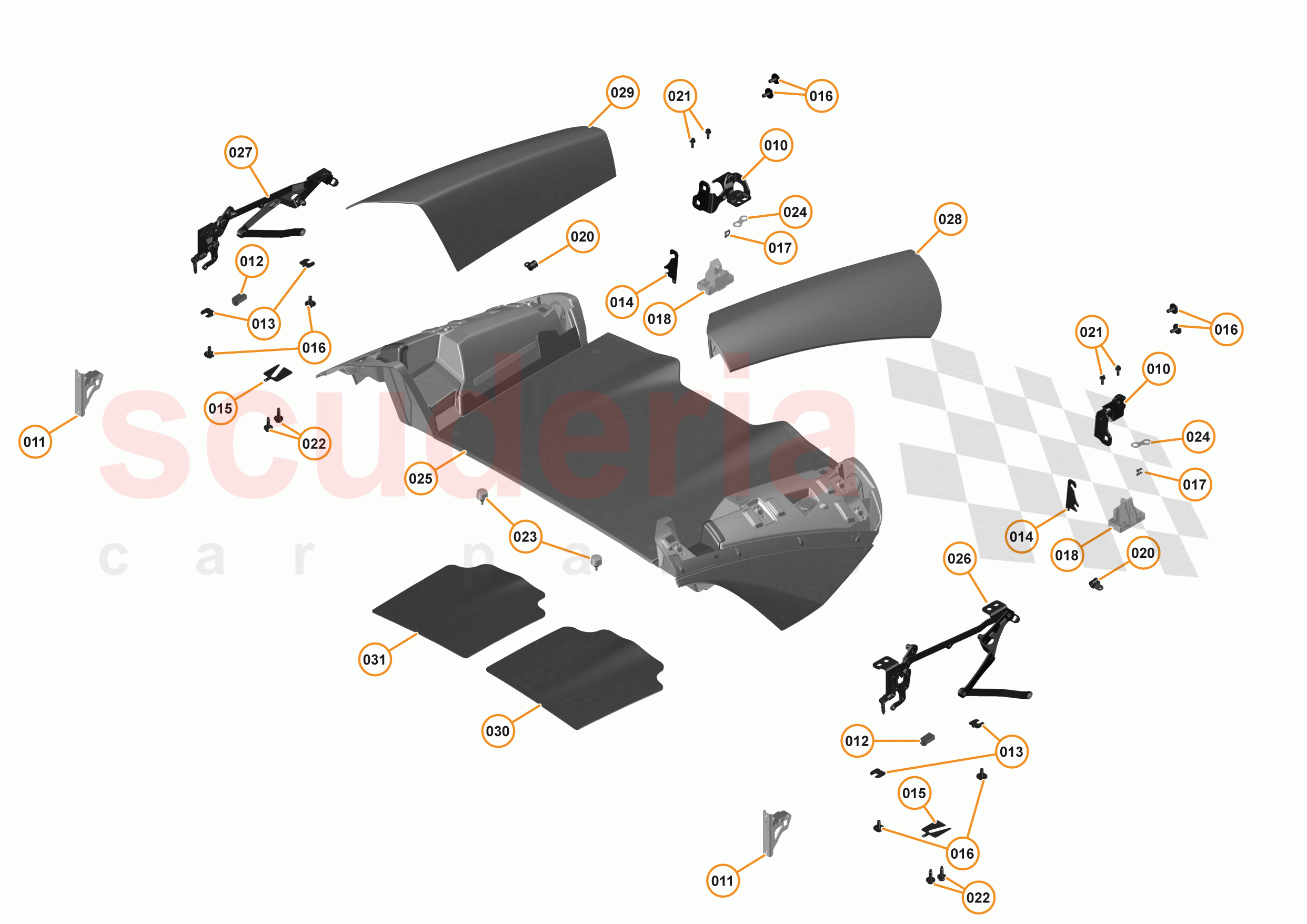

7 - OPENING ROOF SYSTEMS - 7.3 - CONVERTIBLE ROOF (RHT) - TONNEAU COVER of McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4007SP
RHT - Hinge -Tonneau Assy - Kit LH & RH 		$934.29 1
TO
011 11A4015SP
RHT - Striker - Tonneau Cover - Kit 		$443.10 1
TO
012 11A4049SP
RHT - Buffer Latch - Tonneau Cover 		$60.90 1
TO
013 13AA324SP
SHIM - KINEMATIC - 1.0MM 		$1.53 4
TO
013 13AA313SP
Shim - Kinematic - 0.5mm 		$3.43 4
TO
014 13AA312SP
SHIM - HINGE - 1.0MM 		$1.12 2
TO
015 11A2351SP
SHIM PLATE PACK - TONNEAU 2-HOLE - SPIDER 		$10.48 4
TO
016 11A6363SP
BOLT - TONNEAU ARM 		$32.31 8
TO
017 11A6364SP
SPRING CLIP - TONNEAU ARM 		$3.03 2
TO
018 11A4043SP
Striker - RHT - Down Stack Complete 		$503.52 1
TO
020 00RB127
P-CLIP - 12/13 - EPDM 		- 2
PE
 Enquire
021 00RA061
Screw - M6x16 - Flange Hex 		- 4
PE
 Enquire
022 00RA429
SCREW - WASHER - M8X24 - BUTTON-HEX 		- 4
PE
 Enquire
023 11A4048SP
RHT - Down Stack Buffer - Roof - Front 		$76.15 1
TO
024 13AA314SP
SHIM - DOG BONE 		$17.07 2
TO
025 13AA611SP
ASSY TONNEAU COVER 		$14,703.35 1
TO
026 11A6570SP
LINKAGE - TONNEAU COVER - LH 		$906.35 1
TO
027 11A6571SP
LINKAGE - TONNEAU COVER - RH 		$906.35 1
TO
028 13AA052SP
Assy Fin - Tonneau Cover - LH 		- 1
PE
 Enquire
029 13AA056SP
Assy Fin - Tonneau Cover - RH 		- 1
PE
 Enquire
030 13AA222SP
LINER - TONNEAU COMPARTMENT - LH 		$12.17 1
TO
031 13AA226SP
LINER - TONNEAU COMPARTMENT - RH 		$12.17 1
TO
