McLaren 570S Spider - 7 - OPENING ROOF SYSTEMS - 7.1 - CONVERTIBLE ROOF (RHT) - PANELS AND ROLL OVER PROTECTION SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A6684SP RHT - Expansion Rivet Set $50.34 To Order
11A4047SP RHT - Latch Repair Kit $60.90 To Order
11A4004SP RHT - Spring Main Pillar Kit $86.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA319 Bolt - M8x1.0x25 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA320 Bolt - M10x1.25x30 - Cap Enquire To Order
Photo Part No Description Price (each) Stock
13AA415SP Panel - Roof - Front Enquire To Order
Photo Part No Description Price (each) Stock
13AA337SP Panel - Roof - Rear Enquire To Order
Photo Part No Description Price (each) Stock
11A7426SP STRIKER - ROOF - SPIDER - RH $731.17 To Order
11A7425SP STRIKER - ROOF - SPIDER - LH $731.17 To Order
11A4041SP Striker - RHT - Roof Complete - Set $1,550.88 To Order
Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
13AA307SP SHIM - 2.0MM - ROOF STRIKER - SPIDER-LH $30.44 To Order
13AA311SP SHIM - 1.0MM - ROOF STRIKER - SPIDER-LH $30.44 To Order
13AA310SP SHIM - 0.6MM - ROOF STRIKER - SPIDER-LH $25.37 To Order
Photo Part No Description Price (each) Stock
13AA306SP SHIM - 2.0MM - ROOF STRIKER - SPIDER-RH $30.44 To Order
13AA309SP SHIM - 1.0MM - ROOF STRIKER - SPIDER-RH $30.44 To Order
13AA308SP SHIM - 0.6MM - ROOF STRIKER - SPIDER-RH $25.37 To Order
Photo Part No Description Price (each) Stock
13AA276SP Plastic Cover - Front Roof Panel - LH $44.11 To Order
Photo Part No Description Price (each) Stock
13AA277SP Plastic Cover - Front Roof Panel - RH $44.11 To Order
Photo Part No Description Price (each) Stock
13AA278SP PLASTIC COVER - REAR ROOF PANEL - FRONT - LH $55.36 To Order
Photo Part No Description Price (each) Stock
13AA279SP PLASTIC COVER - REAR ROOF PANEL - FRONT - RH $55.36 To Order
Photo Part No Description Price (each) Stock
13AA280SP PLASTIC COVER - REAR ROOF PANEL - REAR - LH $55.36 To Order
Photo Part No Description Price (each) Stock
13AA281SP PLASTIC COVER - REAR ROOF PANEL - REAR - RH $55.36 To Order
Photo Part No Description Price (each) Stock
11A4884SP PUSH ROD - ASSY - RH $152.32 To Order
Photo Part No Description Price (each) Stock
11A4885SP PUSH ROD - ASSY - LH $152.32 To Order
Photo Part No Description Price (each) Stock
11A6153SP RHT - Rod End - Male Thread $45.68 To Order
Photo Part No Description Price (each) Stock
00RA134 Nut - M6 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11A6154SP RHT - Spherical Bearing - Clip Type $14.21 To Order
Photo Part No Description Price (each) Stock
11A4002SP RHT - Centering Kit - Main Bracket $65.98 To Order
Photo Part No Description Price (each) Stock
11A4003SP RHT - Spacer Kit - Main Bracket $111.69 To Order
Photo Part No Description Price (each) Stock
11A4045SP RHT - Buffer Centering Plate - Twin Pack $35.54 To Order
Photo Part No Description Price (each) Stock
11A4046SP RHT - Front Latch Hook - Twin Pack $35.54 To Order
Photo Part No Description Price (each) Stock
11A4042SP RHT - Steering Rod Cpl Kit $96.45 To Order
Photo Part No Description Price (each) Stock
11A4005SP RHT - Overlap Kit $223.40 To Order
Photo Part No Description Price (each) Stock
11A6588SP RHT - DECAL KIT - BLACK $55.36 To Order
Photo Part No Description Price (each) Stock
11A6687SP RHT - Roll Over Protection Kit $4,171.58 To Order
Photo Part No Description Price (each) Stock
00RB208 CLIP - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
11A8840SP Screw - Torx - Flanged - M4x12 $16.96 To Order
Photo Part No Description Price (each) Stock
11A8273SP Headliner Trim - Roof Panel – Front – Textile $182.79 To Order
13A5796SP HEADLING TRIM - ROOF PANEL - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
11A8336SP HEADLINER TRIM - ROOF PANEL - REAR - TEXTILE $60.90 To Order
13A7073SP Headliner Trim - Roof Panel - Rear Enquire To Order
Photo Part No Description Price (each) Stock
00RB129 CLIP - CLEVIS Enquire To Order
Photo Part No Description Price (each) Stock
11A4044SP RHT - Slider Centring Plate $55.84 To Order

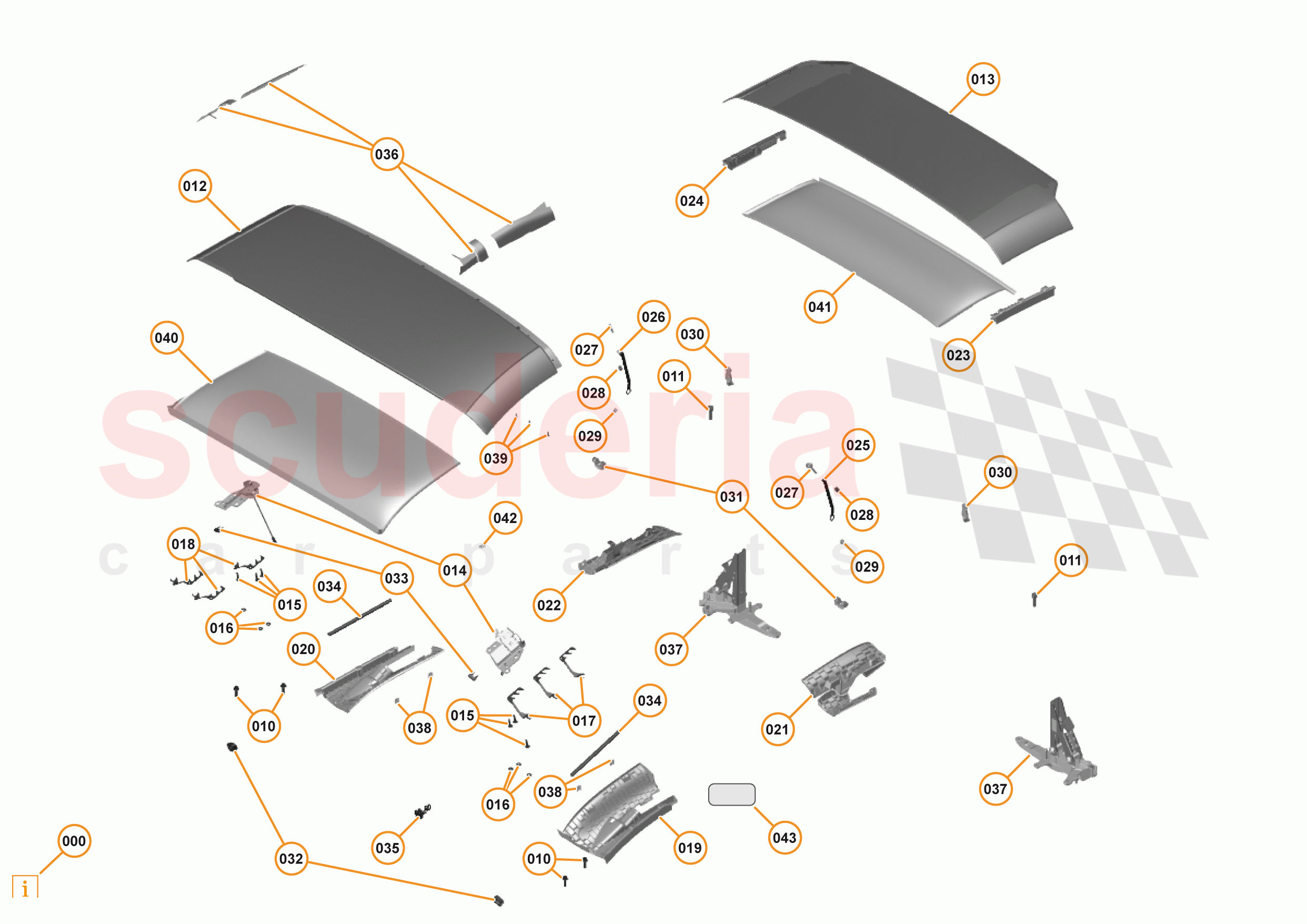

7 - OPENING ROOF SYSTEMS - 7.1 - CONVERTIBLE ROOF (RHT) - PANELS AND ROLL OVER PROTECTION SYSTEM of McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A6684SP
RHT - Expansion Rivet Set 		$50.34 1
TO
000 11A4047SP
RHT - Latch Repair Kit 		$60.90 1
TO
000 11A4004SP
RHT - Spring Main Pillar Kit 		$86.29 1
TO
000 11A4051SP
RHT - Trim Retainer Spring Clip Set 		$40.60 1
TO

11A4044SP

RHT - SLIDER CENTRING PLATE

from $55.84

010 00RA319
Bolt - M8x1.0x25 - Hex 		- 4
PE
 Enquire
011 00RA320
Bolt - M10x1.25x30 - Cap 		- 2
PE
 Enquire
012 13AA415SP
Panel - Roof - Front 		- 1
PE
 Enquire
013 13AA337SP
Panel - Roof - Rear 		- 1
PE
 Enquire
014 11A7426SP
STRIKER - ROOF - SPIDER - RH 		$731.17 1
TO
014 11A7425SP
STRIKER - ROOF - SPIDER - LH 		$731.17 1
TO
014 11A4041SP
Striker - RHT - Roof Complete - Set 		$1,550.88 1
TO
015 00RA263
SCREW - M6X20 - BUTTON 		- 6
PE
 Enquire
016 00RC028
WASHER - M6 FORM C 		- 6
PE
 Enquire
017 13AA307SP
SHIM - 2.0MM - ROOF STRIKER - SPIDER-LH 		$30.44 1
TO
017 13AA311SP
SHIM - 1.0MM - ROOF STRIKER - SPIDER-LH 		$30.44 1
TO
017 13AA310SP
SHIM - 0.6MM - ROOF STRIKER - SPIDER-LH 		$25.37 1
TO
018 13AA306SP
SHIM - 2.0MM - ROOF STRIKER - SPIDER-RH 		$30.44 1
TO
018 13AA309SP
SHIM - 1.0MM - ROOF STRIKER - SPIDER-RH 		$30.44 1
TO
018 13AA308SP
SHIM - 0.6MM - ROOF STRIKER - SPIDER-RH 		$25.37 1
TO
019 13AA276SP
Plastic Cover - Front Roof Panel - LH 		$44.11 1
TO
020 13AA277SP
Plastic Cover - Front Roof Panel - RH 		$44.11 1
TO
021 13AA278SP
PLASTIC COVER - REAR ROOF PANEL - FRONT - LH 		$55.36 1
TO
022 13AA279SP
PLASTIC COVER - REAR ROOF PANEL - FRONT - RH 		$55.36 1
TO
023 13AA280SP
PLASTIC COVER - REAR ROOF PANEL - REAR - LH 		$55.36 1
TO
024 13AA281SP
PLASTIC COVER - REAR ROOF PANEL - REAR - RH 		$55.36 1
TO
025 11A4884SP
PUSH ROD - ASSY - RH 		$152.32 1
TO
026 11A4885SP
PUSH ROD - ASSY - LH 		$152.32 1
TO
027 11A6153SP
RHT - Rod End - Male Thread 		$45.68 2
TO
028 00RA134
Nut - M6 - Hex 		- 4
PE
 Enquire
029 11A6154SP
RHT - Spherical Bearing - Clip Type 		$14.21 2
TO
030 11A4002SP
RHT - Centering Kit - Main Bracket 		$65.98 1
TO
031 11A4003SP
RHT - Spacer Kit - Main Bracket 		$111.69 1
TO
032 11A4045SP
RHT - Buffer Centering Plate - Twin Pack 		$35.54 1
TO
033 11A4046SP
RHT - Front Latch Hook - Twin Pack 		$35.54 1
TO
034 11A4042SP
RHT - Steering Rod Cpl Kit 		$96.45 1
TO
035 11A4005SP
RHT - Overlap Kit 		$223.40 1
TO
036 11A6588SP
RHT - DECAL KIT - BLACK 		$55.36 1
TO
037 11A6687SP
RHT - Roll Over Protection Kit 		$4,171.58 1
TO
038 00RB208
CLIP - FASTENING 		- 4
PE
 Enquire
039 11A8840SP
Screw - Torx - Flanged - M4x12 		$16.96 8
TO
040 11A8273SP
Headliner Trim - Roof Panel – Front – Textile 		$182.79 1
TO
040 13A5796SP
HEADLING TRIM - ROOF PANEL - FRONT 		- 1
PE
 Enquire
041 11A8336SP
HEADLINER TRIM - ROOF PANEL - REAR - TEXTILE 		$60.90 1
TO
041 13A7073SP
Headliner Trim - Roof Panel - Rear 		- 1
PE
 Enquire

00RB129

CLIP - CLEVIS

 -
044 00RL010
CABLE TIE - SF175-50X 		- 1
PE
 Enquire
044 00RL013
CABLE TIE - 360X4.8MM 		- 2
PE
 Enquire
046 00RA099
SCREW - M4X25 - HEX 		- 3
PE
 Enquire
047 00RB128
CLIP - EDGE - 90 DEG 		- 1
PE
 Enquire
049 00RB127
P-CLIP - 12/13 - EPDM 		- 2
PE
 Enquire
