McLaren 570S Spider - 5 - PANELS - 5.4 - BULKHEAD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA216SP Liner - Bulkhead - Centre - ESG Enquire To Order
13AA655SP Bulkhead Liner - Spider - Centre $528.06 To Order
Photo Part No Description Price (each) Stock
13AA287SP Liner - Bulkhead - RH $161.11 To Order
Photo Part No Description Price (each) Stock
13AA285SP Liner - Bulkhead - LH $161.11 To Order
Photo Part No Description Price (each) Stock
11A5307SP HATCH - BULKHEAD $491.71 To Order
Photo Part No Description Price (each) Stock
12N1282CP ADHESIVE TAPE - 3M-PT1100 $345.26 To Order
Photo Part No Description Price (each) Stock
00RA399 Screw - M4x12 Enquire To Order
Photo Part No Description Price (each) Stock
11A5842SP WASHER - TINNERMANN - M4 $14.21 To Order
Photo Part No Description Price (each) Stock
13AA192SP SUPPORT - BULKHEAD - RH $58.13 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA310 BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
13AA188SP SUPPORT - BULKHEAD - LH $58.13 To Order
Photo Part No Description Price (each) Stock
13AA154SP Heatshield - Bulkhead - ESG Enquire To Order
13AA161SP Heatshield - Bulkhead - Non ESG $243.70 To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
11AA018SP HEATSHIELD - HATCH - BULKHEAD $302.10 To Order
Photo Part No Description Price (each) Stock
13AA275SP HEATSHIELD - BULKHEAD - REAR - UPPER - RH $142.16 To Order

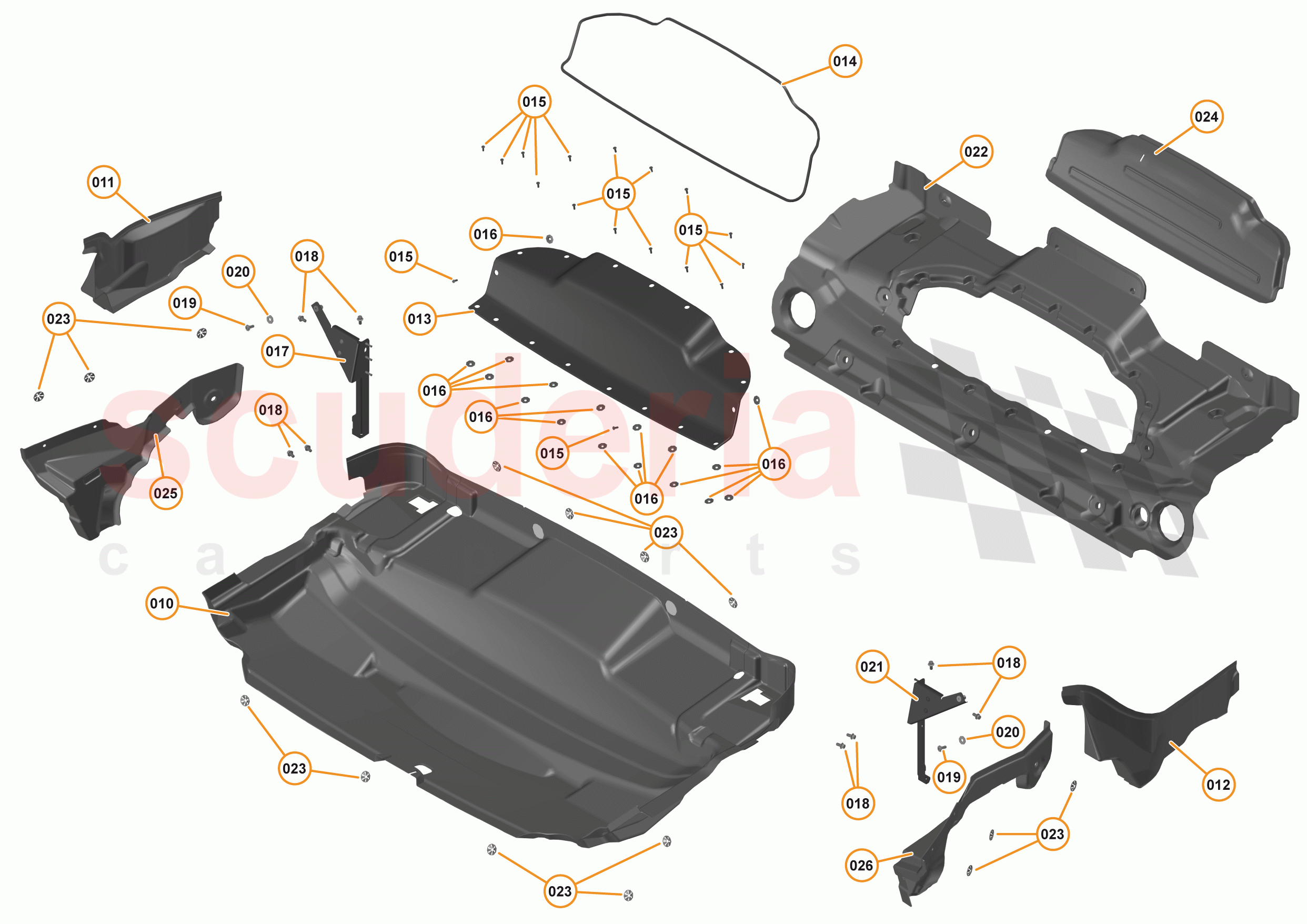

5 - PANELS - 5.4 - BULKHEAD of McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA216SP
Liner - Bulkhead - Centre - ESG 		- 1
PE
 Enquire
010 13AA655SP
Bulkhead Liner - Spider - Centre 		$528.06 1
TO
011 13AA287SP
Liner - Bulkhead - RH 		$161.11 1
TO
012 13AA285SP
Liner - Bulkhead - LH 		$161.11 1
TO
013 11A5307SP
HATCH - BULKHEAD 		$491.71 1
TO
014 12N1282CP
ADHESIVE TAPE - 3M-PT1100 		$345.26 1
TO
015 00RA399
Screw - M4x12 		- 17
PE
 Enquire
016 11A5842SP
WASHER - TINNERMANN - M4 		$14.21 17
TO
017 13AA192SP
SUPPORT - BULKHEAD - RH 		$58.13 1
TO
018 00RX003
BOLT - M6X1X12 - HEX 		- 6
PE
 Enquire
019 00RA310
BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS 		- 2
PE
 Enquire
020 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 2
PE
 Enquire
021 13AA188SP
SUPPORT - BULKHEAD - LH 		$58.13 1
TO
022 13AA154SP
Heatshield - Bulkhead - ESG 		- 1
PE
 Enquire
022 13AA161SP
Heatshield - Bulkhead - Non ESG 		$243.70 1
TO
023 00RC039
WASHER - M6 - STAR LOCK 		- 15
PE
 Enquire
024 11AA018SP
HEATSHIELD - HATCH - BULKHEAD 		$302.10 1
TO
025 13AA275SP
HEATSHIELD - BULKHEAD - REAR - UPPER - RH 		$142.16 1
TO
026 13AA273SP
HEATSHIELD - BULKHEAD - REAR - UPPER - LH 		$142.16 1
TO
