Name: 9 - EXTERIOR ORNAMENTATION - 9.8 - HIGH DOWNFORCE KIT - HDK
Rating: 4.5 (1 reviews)

Find Your Part

Diagram
INFO

9 - EXTERIOR ORNAMENTATION - 9.8 - HIGH DOWNFORCE KIT - HDK of McLaren McLaren 570S Spider

McLaren 570S Spider - 9 - EXTERIOR ORNAMENTATION - 9.8 - HIGH DOWNFORCE KIT - HDK

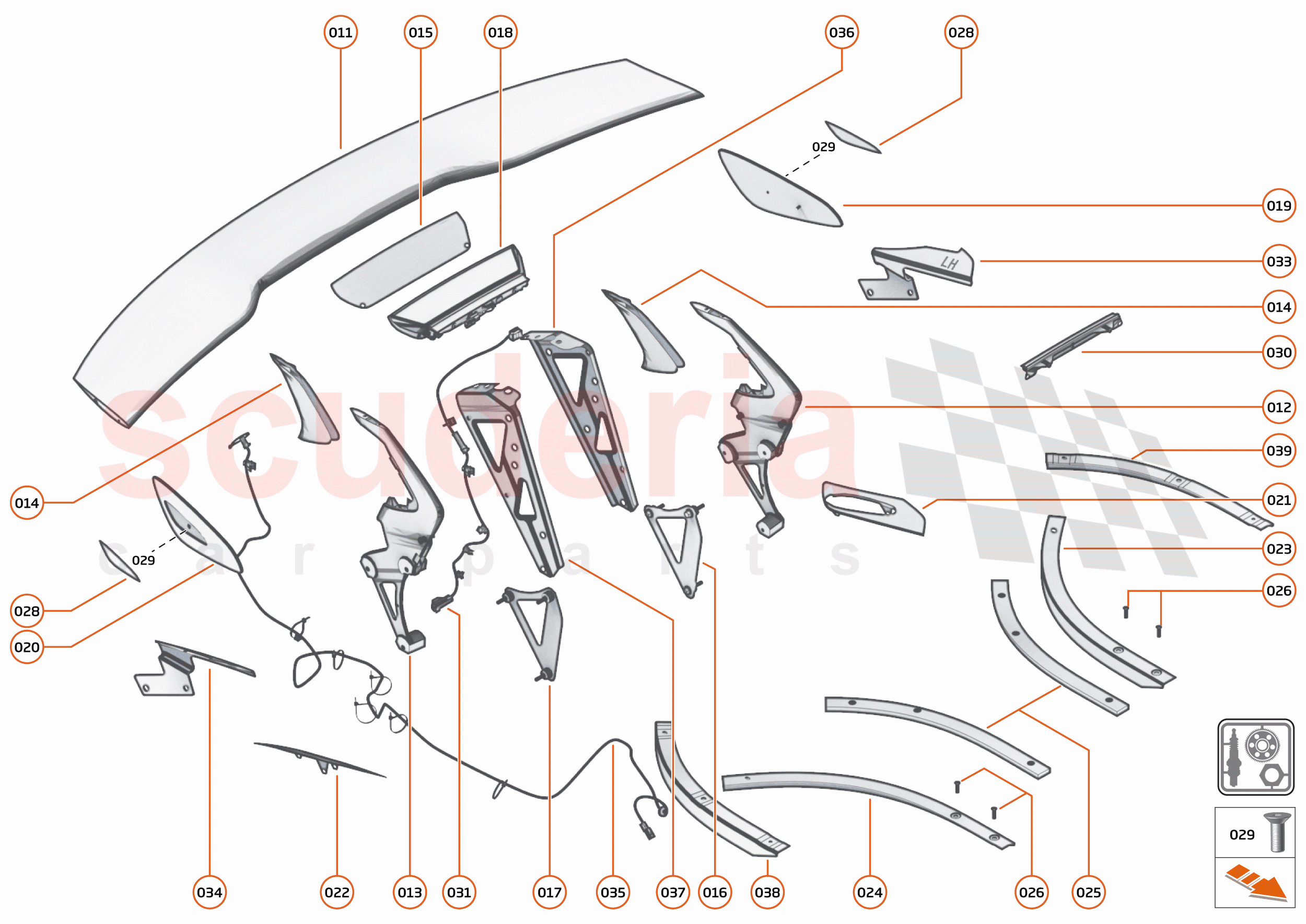

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13AA671MP	ASSY REAR WING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA673MP	PYLON RR WING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA674MP	PYLON RR WING RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA675MP	PYLON INLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA677MP	CHMSL LENS COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA687MP	CROSS BRACE REINF LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA822MP	CROSS BRACE REINF RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA724MP	CHMSL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA741MP	ENDPLATE ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA803MP	ENDPLATE ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA757MP	PYLON FINISHER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA758MP	PYLON FINISHER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA823MP	GUIDE VANE-FRNT LH	$233.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA825MP	GUIDE VANE-FRNT RH	$233.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA835MP	GUIDE VANE SPACER	$14.83	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA839MP	NUT RAWL M4	$41.13	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA875MP	SCREW BUT HD FL M4X30 ISO7380-2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA783MP	CHMSL BLANKING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA949MP	PANEL TRIM JIG LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA950MP	PANEL TRIM JIG RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA109MP	MSO HDK WIRING KIT MY19	Enquire	To Order
	13MA107MP	MSO HDK WIRING KIT MY18 SPIDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA851CP	BRKT - CROSS BRACE - REAR - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA852CP	BRKT RR CROSS BRACE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A1805CP	GUIDE VANE - FRONT - LH	$95.65	To Order

Photo	Part No	Description	Price (each)	Stock
	14A1806CP	GUIDE VANE - FRONT - RH	$95.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA964MP	HDK FIXING KIT AFTERSALES	$142.16	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
011	13AA671MP	ASSY REAR WING	13AA671MP ASSY REAR WING	-	1	PE	Enquire
012	13AA673MP	PYLON RR WING LH	13AA673MP PYLON RR WING LH	-	1	PE	Enquire
013	13AA674MP	PYLON RR WING RH	13AA674MP PYLON RR WING RH	-	1	PE	Enquire
014	13AA675MP	PYLON INLAY	13AA675MP PYLON INLAY	-	2	PE	Enquire
015	13AA677MP	CHMSL LENS COVER	13AA677MP CHMSL LENS COVER	-	1	PE	Enquire
016	13AA687MP	CROSS BRACE REINF LH	13AA687MP CROSS BRACE REINF LH	-	1	PE	Enquire
017	13AA822MP	CROSS BRACE REINF RH	13AA822MP CROSS BRACE REINF RH	-	1	PE	Enquire
018	13AA724MP	CHMSL HOUSING	13AA724MP CHMSL HOUSING	-	1	PE	Enquire
019	13AA741MP	ENDPLATE ASSY LH	13AA741MP ENDPLATE ASSY LH	-	1	PE	Enquire
020	13AA803MP	ENDPLATE ASSY RH	13AA803MP ENDPLATE ASSY RH	-	1	PE	Enquire
021	13AA757MP	PYLON FINISHER LH	13AA757MP PYLON FINISHER LH	-	1	PE	Enquire
022	13AA758MP	PYLON FINISHER RH	13AA758MP PYLON FINISHER RH	-	1	PE	Enquire
023	13AA823MP	GUIDE VANE-FRNT LH	13AA823MP GUIDE VANE-FRNT LH	$233.19	1	TO
024	13AA825MP	GUIDE VANE-FRNT RH	13AA825MP GUIDE VANE-FRNT RH	$233.19	1	TO
025	13AA835MP	GUIDE VANE SPACER	13AA835MP GUIDE VANE SPACER	$14.83	2	TO
026	13AA839MP	NUT RAWL M4	13AA839MP NUT RAWL M4	$41.13	2	TO
027	13AA870MP	ENDPLATE INSERT RH	13AA870MP ENDPLATE INSERT RH	-	1	PE	Enquire
027	13AA869MP	ENDPLATE INSERT LH	13AA869MP ENDPLATE INSERT LH	-	1	PE	Enquire
029	13AA875MP	SCREW BUT HD FL M4X30 ISO7380-2	13AA875MP SCREW BUT HD FL M4X30 ISO7380-2	-	2	PE	Enquire
030	13AA783MP	CHMSL BLANKING COVER	13AA783MP CHMSL BLANKING COVER	-	1	PE	Enquire
033	13AA949MP	PANEL TRIM JIG LH	13AA949MP PANEL TRIM JIG LH	-	1	PE	Enquire
034	13AA950MP	PANEL TRIM JIG RH	13AA950MP PANEL TRIM JIG RH	-	1	PE	Enquire
035	13MA109MP	MSO HDK WIRING KIT MY19	13MA109MP MSO HDK WIRING KIT MY19	-	1	PE	Enquire
035	13MA107MP	MSO HDK WIRING KIT MY18 SPIDER	13MA107MP MSO HDK WIRING KIT MY18 SPIDER	-	1	PE	Enquire
036	13AA851CP	BRKT - CROSS BRACE - REAR - LH	13AA851CP BRKT - CROSS BRACE - REAR - LH	-	1	PE	Enquire
037	13AA852CP	BRKT RR CROSS BRACE RH	13AA852CP BRKT RR CROSS BRACE RH	-	1	PE	Enquire
038	14A1805CP	GUIDE VANE - FRONT - LH	14A1805CP GUIDE VANE - FRONT - LH	$95.65	1	TO
039	14A1806CP	GUIDE VANE - FRONT - RH	14A1806CP GUIDE VANE - FRONT - RH	$95.65	1	TO
041	13AA964MP	HDK FIXING KIT AFTERSALES	13AA964MP HDK FIXING KIT AFTERSALES	$142.16	1	TO
