Name: 32 - ENGINE - 32.3 - INLET MANIFOLD
Rating: 5.0 (1 reviews)

Diagram
INFO

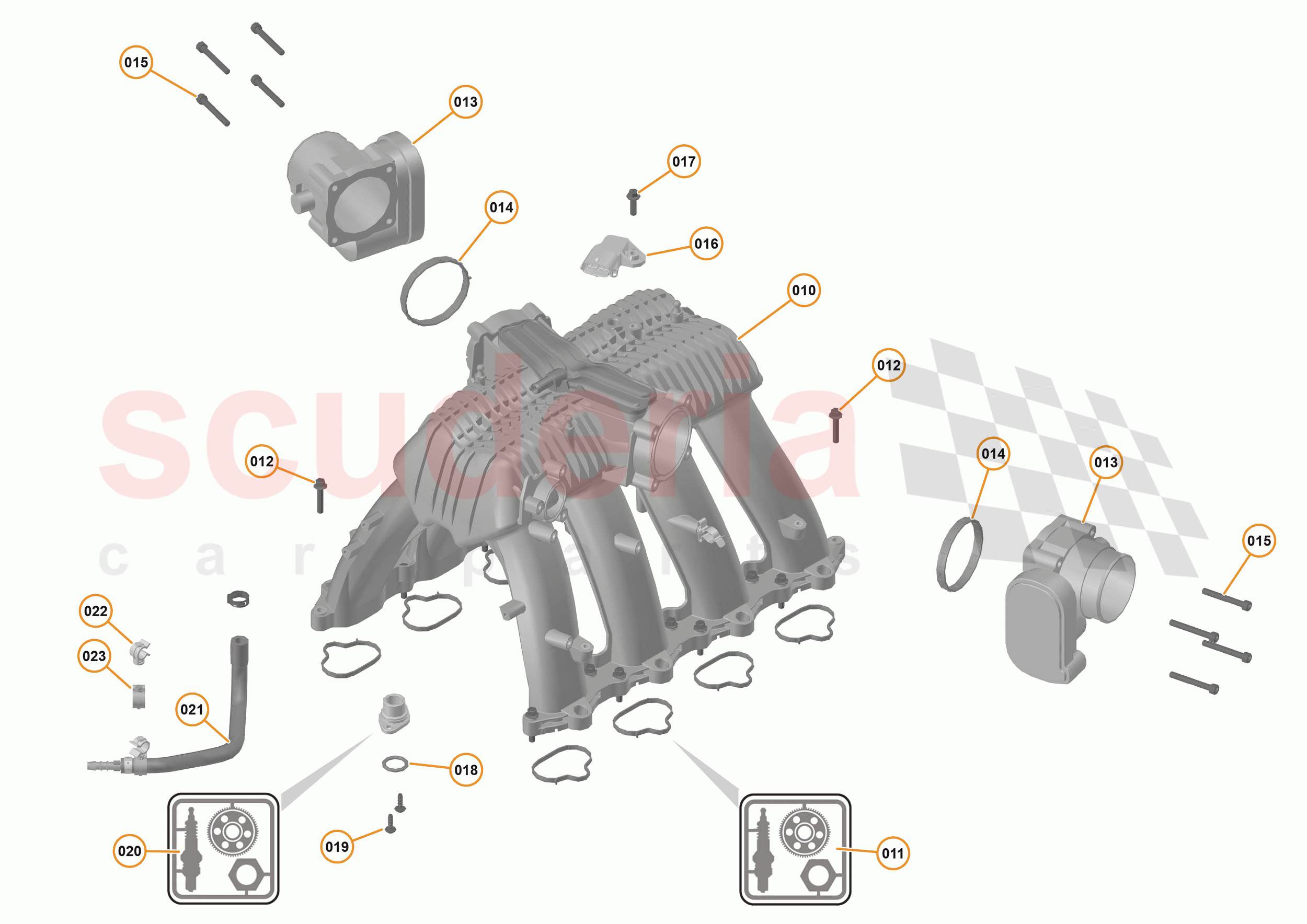

32 - ENGINE - 32.3 - INLET MANIFOLD of McLaren McLaren 570GT

McLaren 570GT - 32 - ENGINE - 32.3 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13F0664CP	INLET MANIFOLD - ASSEMBLY	$649.93	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0967CP	Seal Set - Inlet Manifold - Engine	$192.93	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1776CP	BOLT - M6X30 - HEX	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0407CP	Throttle Body - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2289CP	SEAL - THROTTLE BODY - ENGINE	$40.60	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0820CP	Bolt Set - M6x45 - Engine - Throttle Body	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0987CP	Sensor - TMAP - Inlet Manifold - Engine	$143.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0865CP	O-RING - ISG TUBE	$6.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1798CP	SCREW - M5X25 - SELF TAPPING	$4.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0791CP	BLANKING PLUG - INTAKE SOUND GENERATOR	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0654CP	HOSE - BRAKE VACUUM	$241.69	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0741CP	CLIP - BRAKE VACUUM - FEMALE 030252	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0742CP	CLIP - BRAKE VACUUM - MALE 030398	$2.22	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	13F0664CP	INLET MANIFOLD - ASSEMBLY	13F0664CP INLET MANIFOLD - ASSEMBLY	$649.93	1	TO
011	11F0967CP	Seal Set - Inlet Manifold - Engine	11F0967CP Seal Set - Inlet Manifold - Engine	$192.93	1	TO
012	11F1776CP	BOLT - M6X30 - HEX	11F1776CP BOLT - M6X30 - HEX Superseded parts: 11F0824CP;	$10.14	16	TO
013	11F0407CP	Throttle Body - Engine	11F0407CP Throttle Body - Engine Superseded parts: 11F0407CP;	-	2	PE	Enquire
014	11F2289CP	SEAL - THROTTLE BODY - ENGINE	11F2289CP SEAL - THROTTLE BODY - ENGINE	$40.60	2	TO
015	11F0820CP	Bolt Set - M6x45 - Engine - Throttle Body	11F0820CP Bolt Set - M6x45 - Engine - Throttle Body	-	2	PE	Enquire
016	11F0987CP	Sensor - TMAP - Inlet Manifold - Engine	11F0987CP Sensor - TMAP - Inlet Manifold - Engine	$143.23	1	TO
017	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Superseded parts: 11F0825CP;	$11.14	1	TO
018	13F0865CP	O-RING - ISG TUBE	13F0865CP O-RING - ISG TUBE	$6.69	1	TO
019	11F1798CP	SCREW - M5X25 - SELF TAPPING	11F1798CP SCREW - M5X25 - SELF TAPPING	$4.65	2	TO
020	13F0791CP	BLANKING PLUG - INTAKE SOUND GENERATOR	13F0791CP BLANKING PLUG - INTAKE SOUND GENERATOR	$35.54	1	TO
021	13F0654CP	HOSE - BRAKE VACUUM	13F0654CP HOSE - BRAKE VACUUM Superseded parts: 13F0726CP;	$241.69	1	TO
022	13F0741CP	CLIP - BRAKE VACUUM - FEMALE 030252	13F0741CP CLIP - BRAKE VACUUM - FEMALE 030252	$2.85	1	TO
023	13F0742CP	CLIP - BRAKE VACUUM - MALE 030398	13F0742CP CLIP - BRAKE VACUUM - MALE 030398	$2.22	1	TO

32 - Engine - 32.3 - Inlet Manifold

McLaren 570GT

McLaren 570GT - 32 - ENGINE - 32.3 - INLET MANIFOLD
