5 - Panels - 5.5 - Bulkhead

McLaren 570GT

Find Your Part

McLaren 570GT - 5 - PANELS - 5.5 - BULKHEAD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A3930GP NVH - Bulkhead - Rear - Upper - Centre - GT $140.97 To Order
Photo Part No Description Price (each) Stock
13A6482GP Hatch - Bulkhead - GT $80.54 To Order
Photo Part No Description Price (each) Stock
13A6466CP NVH - BULKHEAD HATCH - REAR - UPPER $171.18 To Order
Photo Part No Description Price (each) Stock
13A6253CP GASKET - FOAM $13.18 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
13A6902GP NVH - Bulkhead - Rear - Upper - LH - GT $77.47 To Order
Photo Part No Description Price (each) Stock
13A6903GP NVH - Bulkhead - Rear - Upper - RH - GT $77.47 To Order
Photo Part No Description Price (each) Stock
13A5635CP NVH FOAM - DOOR INNER - GT BULKHEAD $3.61 To Order
Photo Part No Description Price (each) Stock
13AA210GP NVH - Bulkhead Panel - LH $17.26 To Order
Photo Part No Description Price (each) Stock
13AA211GP NVH - Bulkhead Panel - RH $17.26 To Order
Photo Part No Description Price (each) Stock
13AA036GP NVH - Bulkhead Panel - Centre $12.40 To Order
Photo Part No Description Price (each) Stock
13AA039GP NVH - Bulkhead Panel $16.09 To Order
Photo Part No Description Price (each) Stock
13AA068GP NVH - Bulkhead - Damping $30.20 To Order

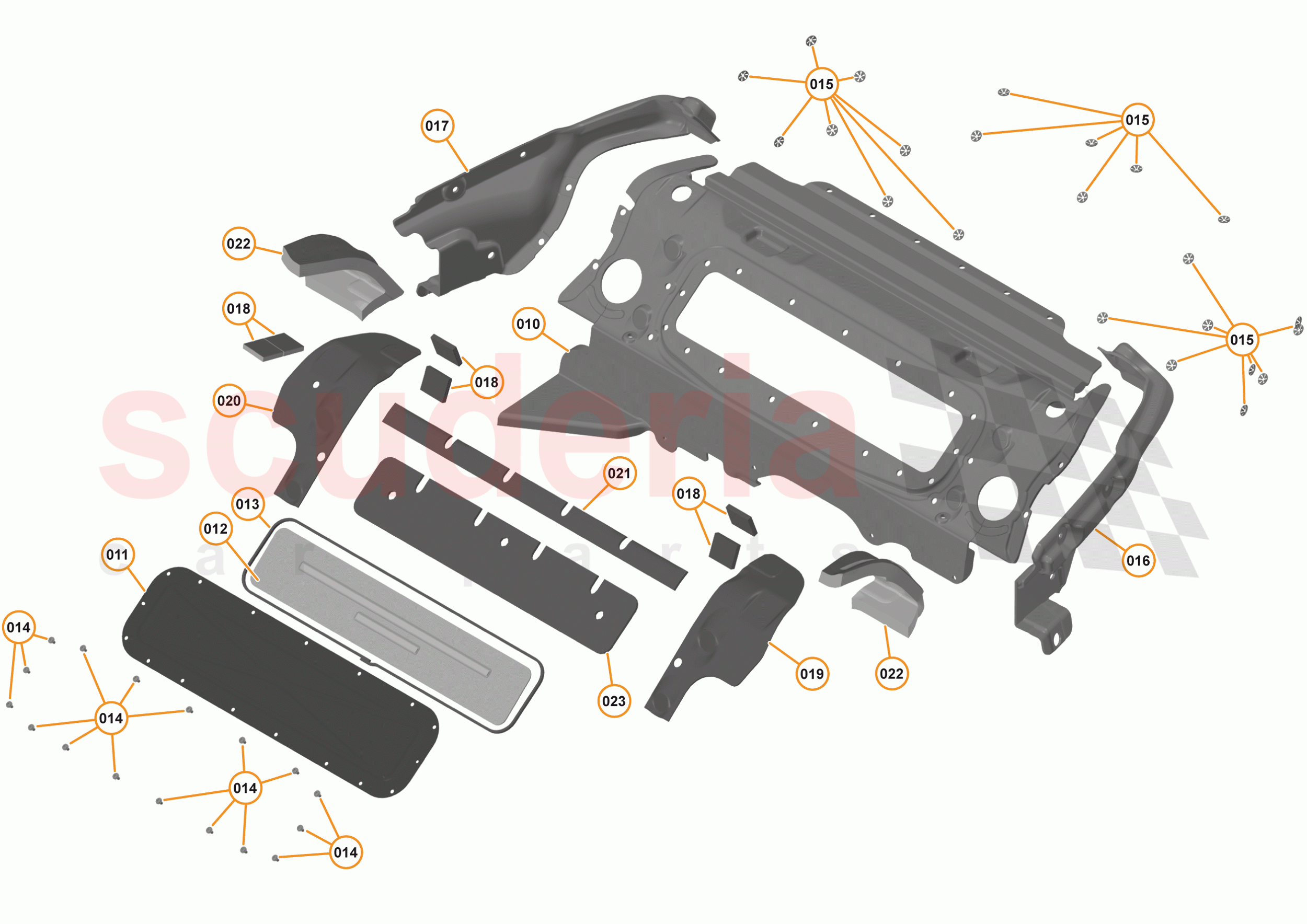

5 - PANELS - 5.5 - BULKHEAD of McLaren McLaren 570GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13A3930GP
NVH - Bulkhead - Rear - Upper - Centre - GT 		$140.97 1
TO
011 13A6482GP
Hatch - Bulkhead - GT 		$80.54 1
TO
012 13A6466CP
NVH - BULKHEAD HATCH - REAR - UPPER
Superseded parts: 13A3572CP; 		$171.18 1
TO
013 13A6253CP
GASKET - FOAM 		$13.18 1
TO
014 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 17
PE
 Enquire
015 00RC039
WASHER - M6 - STAR LOCK 		- 23
PE
 Enquire
016 13A6902GP
NVH - Bulkhead - Rear - Upper - LH - GT 		$77.47 1
TO
017 13A6903GP
NVH - Bulkhead - Rear - Upper - RH - GT 		$77.47 1
TO
018 13A5635CP
NVH FOAM - DOOR INNER - GT BULKHEAD 		$3.61 6
TO
019 13AA210GP
NVH - Bulkhead Panel - LH 		$17.26 1
TO
020 13AA211GP
NVH - Bulkhead Panel - RH 		$17.26 1
TO
021 13AA036GP
NVH - Bulkhead Panel - Centre 		$12.40 1
TO
022 13AA039GP
NVH - Bulkhead Panel 		$16.09 2
TO
023 13AA068GP
NVH - Bulkhead - Damping 		$30.20 1
TO
