Name: 13 - LINERS & NVH - 13.1 - FRONT WHEELARCH LINERS
Rating: 4.6 (1 reviews)

Diagram
INFO

13 - LINERS & NVH - 13.1 - FRONT WHEELARCH LINERS of McLaren McLaren 570GT

McLaren 570GT - 13 - LINERS & NVH - 13.1 - FRONT WHEELARCH LINERS

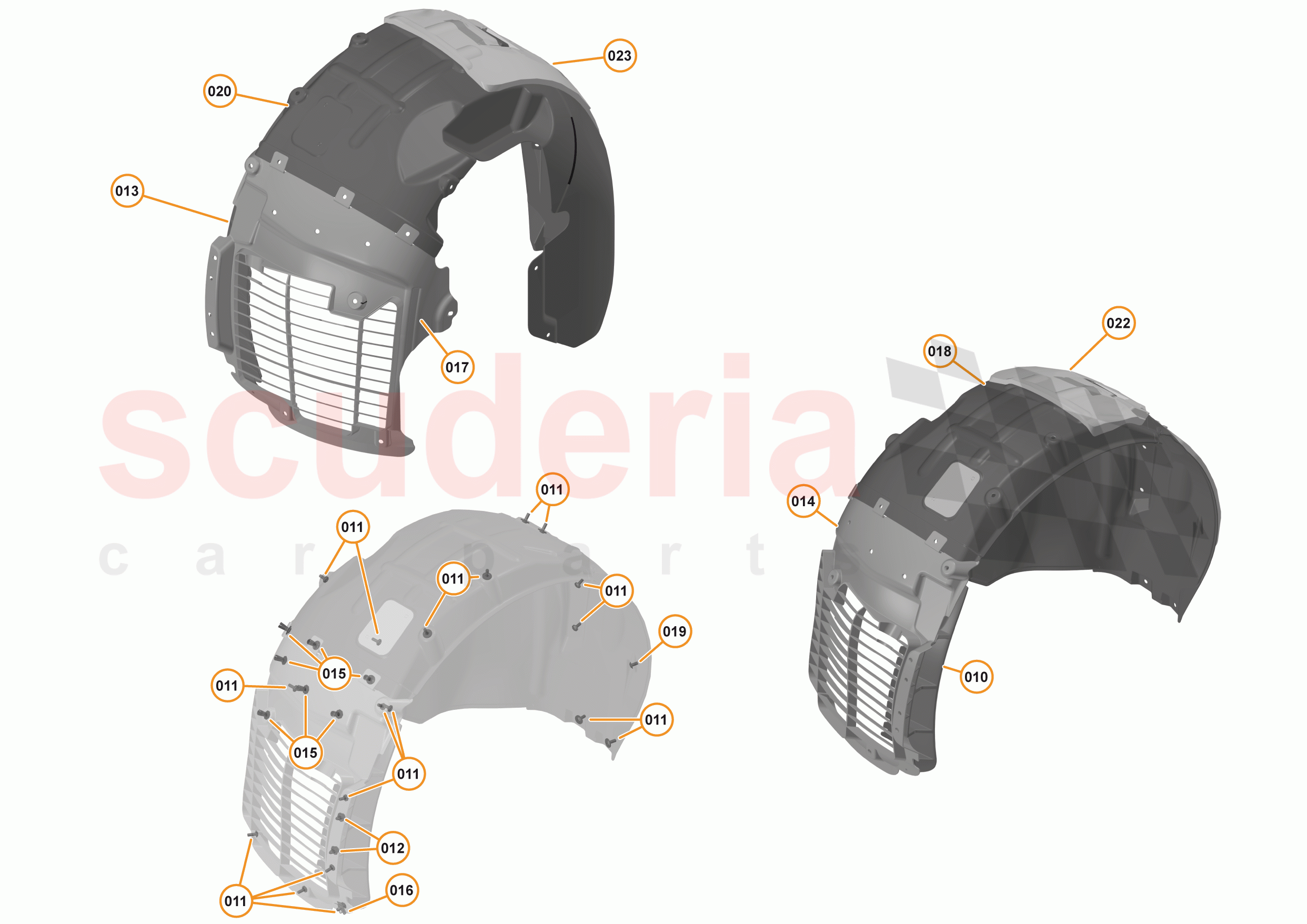

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A4628CP	SPOILER - WHEEL ARCH - LH - FRONT	$241.69	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB017	CLIP - RAYMOND - 18.526.631	Enquire	To Order
	00RB017	CLIP - RAYMOND - 18.526.631	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A4629CP	SPOILER - WHEEL ARCH - RH - FRONT	$241.69	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6091CP	WHEEL ARCH LINER - FRONT - FRONT - LH	$261.81	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA224	Screw Rivet - 18x19mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA174	Half Nut - M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6094CP	WHEEL ARCH LINER - FRONT - FRONT - RH	$261.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13A7240CP	WHEEL ARCH LINER - FRONT - REAR - LH	$261.81	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A7241CP	WHEEL ARCH LINER - FRONT - REAR - RH	$261.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13A7098GP	NVH - Wheel Arch Liner - Front - Rear - LH	$55.36	To Order

Photo	Part No	Description	Price (each)	Stock
	13A7099GP	NVH - Wheel Arch Liner - Front - Rear - RH	$55.36	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	010	13A4628CP	SPOILER - WHEEL ARCH - LH - FRONT	13A4628CP SPOILER - WHEEL ARCH - LH - FRONT	$241.69	1	TO
	011	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD	-	36	PE	Enquire
	00RB017		CLIP - RAYMOND - 18.526.631	-
012 CLIP - RAYMOND - 18.526.631 - 1 PE Enquire 012 CLIP - RAYMOND - 18.526.631 - 4 PE Enquire
	013	13A4629CP	SPOILER - WHEEL ARCH - RH - FRONT	13A4629CP SPOILER - WHEEL ARCH - RH - FRONT	$241.69	1	TO
	014	13A6091CP	WHEEL ARCH LINER - FRONT - FRONT - LH	13A6091CP WHEEL ARCH LINER - FRONT - FRONT - LH	$261.81	1	TO
	015	00RA224	Screw Rivet - 18x19mm	00RA224 Screw Rivet - 18x19mm	-	14	PE	Enquire
	016	00RA174	Half Nut - M14	00RA174 Half Nut - M14	-	2	PE	Enquire
	017	13A6094CP	WHEEL ARCH LINER - FRONT - FRONT - RH	13A6094CP WHEEL ARCH LINER - FRONT - FRONT - RH	$261.81	1	TO
	018	13A7240CP	WHEEL ARCH LINER - FRONT - REAR - LH	13A7240CP WHEEL ARCH LINER - FRONT - REAR - LH Superseded parts: 13A2284CP;	$261.81	1	TO
	019	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	2	PE	Enquire
	020	13A7241CP	WHEEL ARCH LINER - FRONT - REAR - RH	13A7241CP WHEEL ARCH LINER - FRONT - REAR - RH Superseded parts: 13A2286CP;	$261.81	1	TO
	022	13A7098GP	NVH - Wheel Arch Liner - Front - Rear - LH	13A7098GP NVH - Wheel Arch Liner - Front - Rear - LH	$55.36	1	TO
	023	13A7099GP	NVH - Wheel Arch Liner - Front - Rear - RH	13A7099GP NVH - Wheel Arch Liner - Front - Rear - RH	$55.36	1	TO

13 - Liners & Nvh - 13.1 - Front Wheelarch Liners

McLaren 570GT

McLaren 570GT - 13 - LINERS & NVH - 13.1 - FRONT WHEELARCH LINERS
