McLaren 570S Coupe - 33 - ENGINE AIR SYSTEMS - 33.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0690CP Hose - Primary - Intake Sound Generator $76.15 To Order
Photo Part No Description Price (each) Stock
00RB057 CLIP - 39-45MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB073 Swivel Clip - 28-30mm - Male Enquire To Order
Photo Part No Description Price (each) Stock
13F0839CP INTAKE SOUND GENERATOR $345.26 To Order
Photo Part No Description Price (each) Stock
11F0651CP CLAMP - THROTTLE - INTAKE SOUND GENERATOR $60.90 To Order
Photo Part No Description Price (each) Stock
12F0419CP ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH $35.54 To Order
Photo Part No Description Price (each) Stock
13F0691CP Hose - Outlet - Intake Sound Generator - Coupe - LH $101.53 To Order
Photo Part No Description Price (each) Stock
00RG047 GROMMET - OPEN - 38.1 Enquire To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB073 Swivel Clip - 28-30mm - Male Enquire To Order
Photo Part No Description Price (each) Stock
13F0692CP Hose - Outlet - Intake Sound Generator - Coupe - RH $101.53 To Order
Photo Part No Description Price (each) Stock
00RB057 CLIP - 39-45MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order

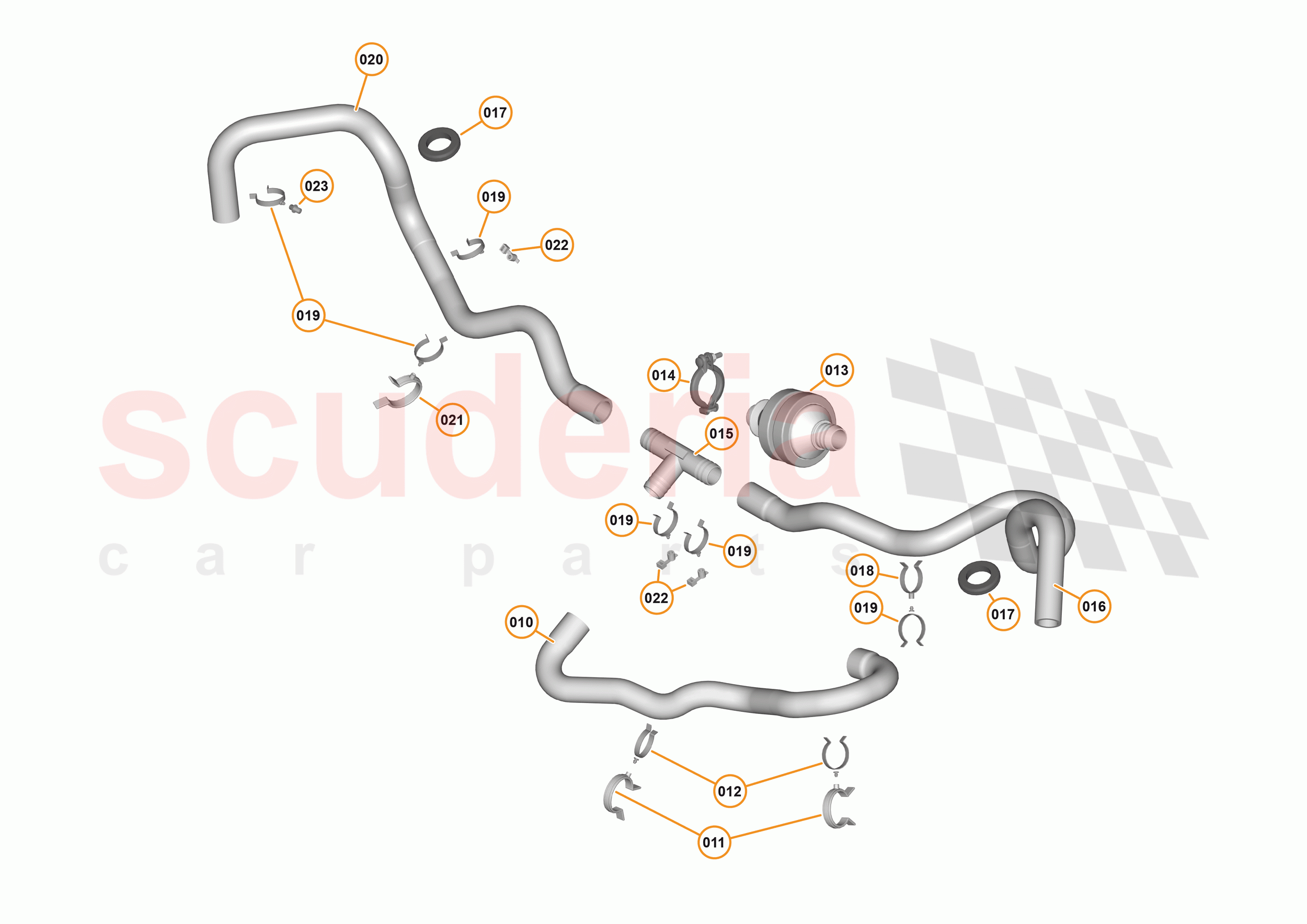

33 - ENGINE AIR SYSTEMS - 33.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM of McLaren McLaren 570S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13F0690CP
Hose - Primary - Intake Sound Generator 		$76.15 1
TO

00RB057

CLIP - 39-45MM - FEMALE

 -

00RB073

SWIVEL CLIP - 28-30MM - MALE

 -
013 13F0839CP
INTAKE SOUND GENERATOR 		$345.26 1
TO
014 11F0651CP
CLAMP - THROTTLE - INTAKE SOUND GENERATOR 		$60.90 1
TO
015 12F0419CP
ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH 		$35.54 1
TO
016 13F0691CP
Hose - Outlet - Intake Sound Generator - Coupe - LH 		$101.53 1
TO
017 00RG047
GROMMET - OPEN - 38.1 		- 2
PE
 Enquire
018 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 1
PE
 Enquire
020 13F0692CP
Hose - Outlet - Intake Sound Generator - Coupe - RH 		$101.53 1
TO
022 00RB035
Cable Tie - Female - Dia 8-20 		- 3
PE
 Enquire
023 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1
PE
 Enquire
024 00RG050
Plug - Dome - 33 Diameter 		- 2
PE
 Enquire
