2 - Mid Structures - 2.1 - Monocoque

McLaren 570S Coupe

Find Your Part

McLaren 570S Coupe - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4872CP Rivnut - M6 - 0.5-3.0 - 2332-906-0519 $5.07 To Order
11A4871CP Rivnut - M5 - 0.5-3.0 - 2330-105-0030 $1.61 To Order
11A4870CP Rivnut - M4 - 1.0-2.0 - 2330-104-0020 $2.00 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $11.14 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $11.14 To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $223.40 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $223.40 To Order

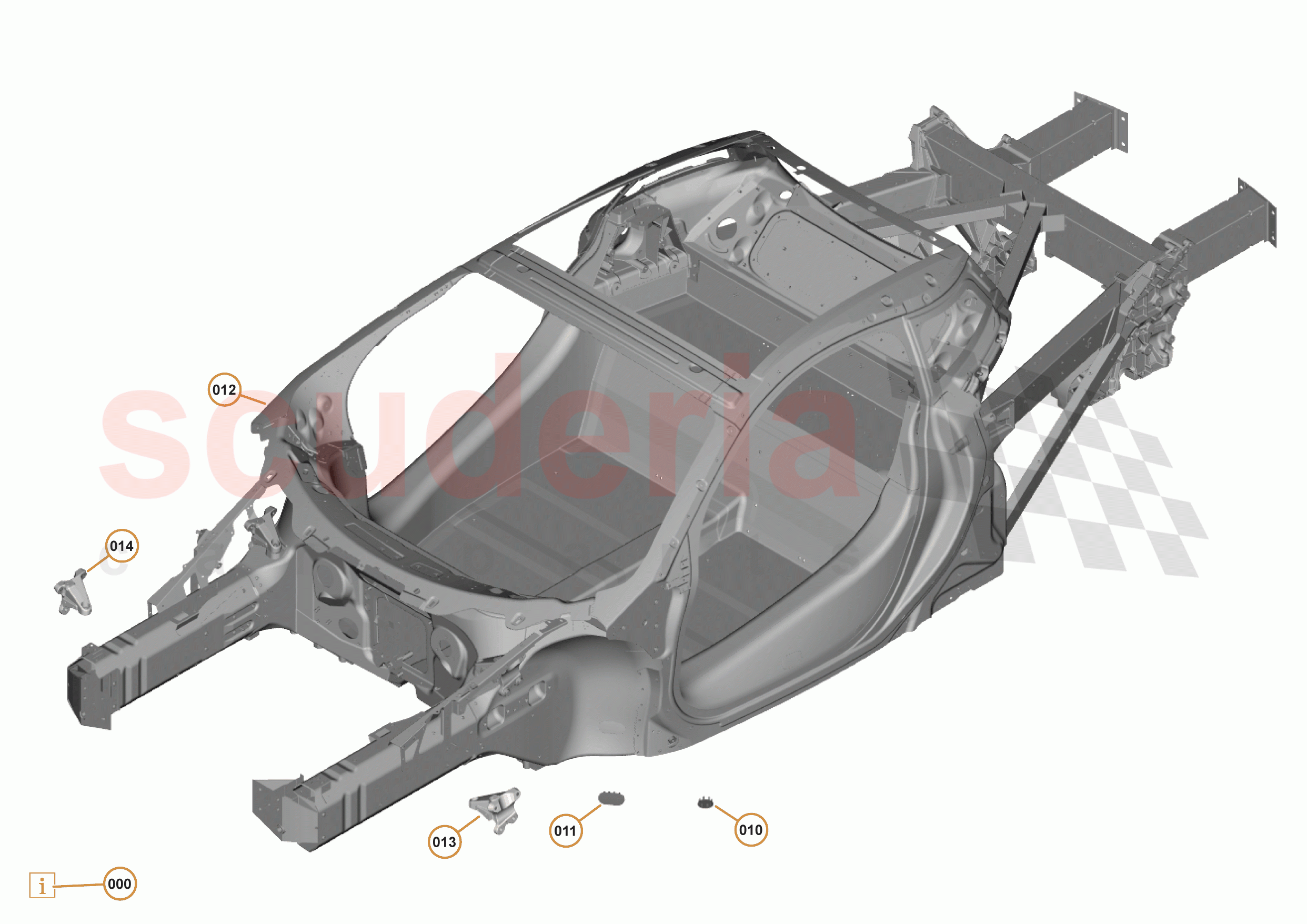

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren 570S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A4872CP
Rivnut - M6 - 0.5-3.0 - 2332-906-0519 		$5.07 1
TO
000 11A4871CP
Rivnut - M5 - 0.5-3.0 - 2330-105-0030 		$1.61 1
TO
000 11A4870CP
Rivnut - M4 - 1.0-2.0 - 2330-104-0020 		$2.00 1
TO
000 11A4791CP
SOP-RIVNUT-M6-0.7-1.5-2330.706 		$6.87 1
TO
000 11A4783CP
SOP-RIVNUT-M6-3.0-5.5-2330-706 		$5.46 1
TO
000 11A4781CP
Helicoil - M8x2D - 1084-8CNW160 		$7.69 1
TO
000 11A4782CP
SOP-RIVET STUD-M6x20-315-3732- 		$6.48 1
TO
000 11A4778CP
Clip - Jetpress - EPF233 		$6.87 1
TO
000 11A4776CP
Rivnut - M5 - 2.0-3.0 - 2330.705-0030 		$5.46 1
TO
000 11A4775CP
Rivnut - M6 - 3.0-4.5 - 2330.706-0045 		$5.46 1
TO
000 11A4774CP
SOP-RNUT-M6-1.50-3.00-2330-706 		$5.46 1
TO
000 11A4773CP
SOP-RIVNUT-M5-3.0-4.0-2330-705 		$5.25 1
TO
000 11A4772CP
Rivnut - M8 - 2.0-3.5 - 2330-708-0035 		$5.67 1
TO
000 11A4771CP
Rivet - 2.0-9.5 - HKLP-R8-6 		$5.88 1
TO
000 11A4769CP
SOP-RIVETSTUD-M5x15-315-3732-7 		$5.88 1
TO
000 11A4770CP
Helicoil - M16x1.5D - 3745-16CNW240 		$16.22 1
TO
000 11A4768CP
SOP-HELICOIL-M12x2D-1084-12CNW 		$11.14 1
TO
000 11A4766CP
Helicoil - M10x2D - 1084-10CNW200 		$5.25 1
TO
000 11A4763CP
Helicoil - M8x1.5D - 1084-8CNW120 		$11.14 1
TO
000 11A4762CP
Helicoil - M6x1D - 1084-6CNW060 		$9.52 1
TO
000 11A4761CP
SOP-RNUT-M5-1.00-2.00-2330-705 		$5.46 1
TO
000 11A4759CP
SOP-RNUT-M4-1.75-2.50-2330-704 		$9.12 1
TO
010 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM 		$11.14 6
TO
011 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM 		$11.14 4
TO
013 11A7142CP
BRACKET - DAMPER MOUNTING - LH 		$223.40 1
TO
014 11A7143CP
BRACKET - DAMPER MOUNTING - RH 		$223.40 1
TO
